brand: | Wuxi Jiesheng | Health status: | new |
payment terms: | letter of credit, wire transfer | port: | Shanghai Port |
Showroom location: | turkey | Mechanical test report: | if |
Packaging Details: | Plywood case | Warranty: | 1 year |
Main selling point: | 30 years of experience | Video external inspection: | if |
Applicable industries: | manufacturing plant | Marketing Type: | normal product |
Spare Parts Type: | Column packing | Supply capacity: | 100 cubic meters per month |
place of origin; place of origin: | Jiangsu, China | Weight (kg): | 80 |
Name | scale | Diameter*Height*Wall Thickness mm | surface area square meter/cubic meter | void % | stacking weight kg/m³ | heap number M3 | dry packing factor m-1 |

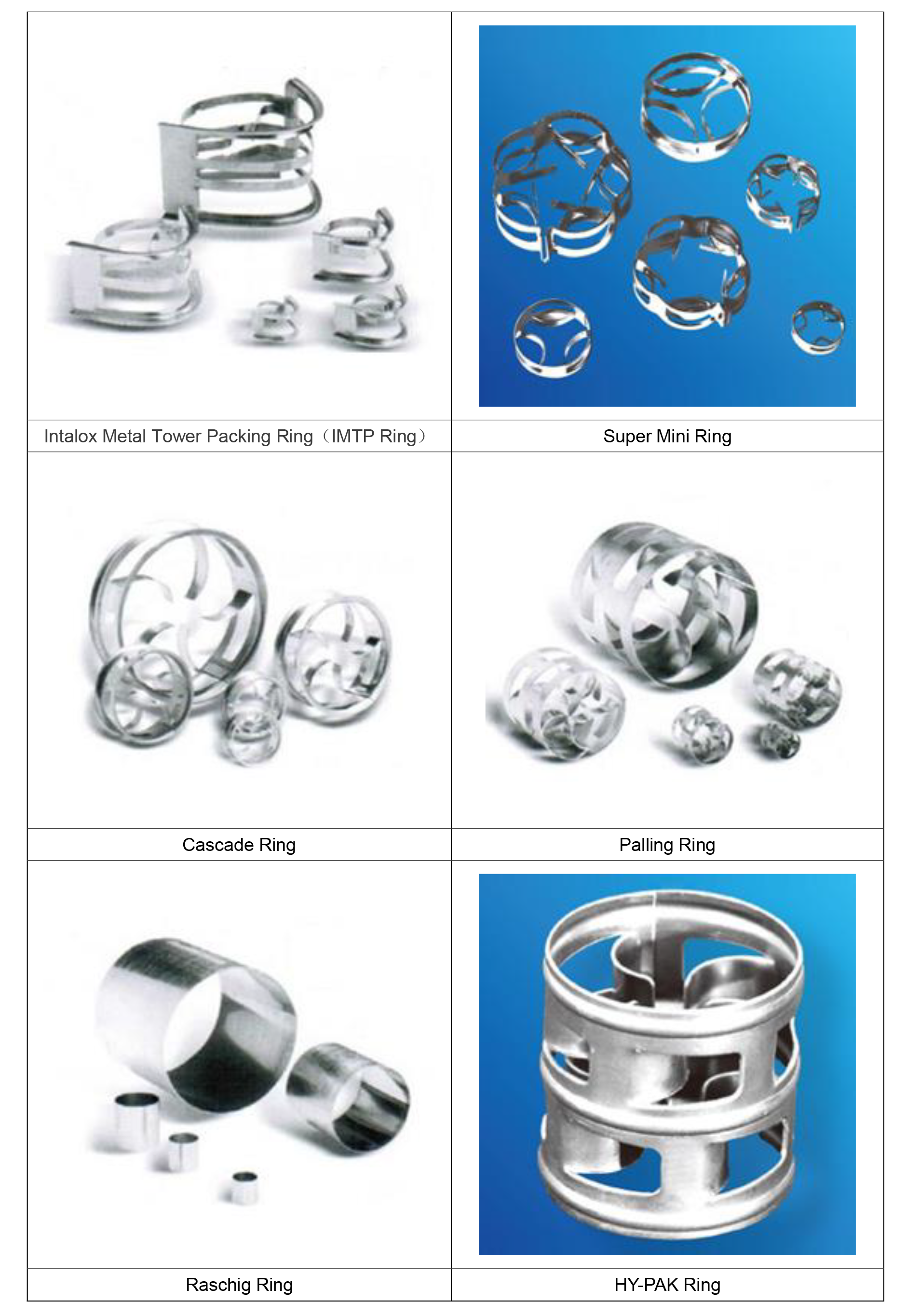

Conjugated ring | Φ25 | 25×25×0.3 | 185 | 95 | 312 | 75000 | 216 |
Φ38 | 38×38×0.5 | 116 | 96 | 275 | 19500 | 131 | |
Φ50 | 50×50×0.8 | 86 | 96 | 275 | 9770 | 97 | |
Φ76 | 76×76×1.0 | 81 | 97 | 245 | 3980 | 95 | |
VSP ring | Φ25 | 25×25×0.6 | 250 | 93 | 420 | 59200 | 310 |
Φ38 | 38×38×0.6 | 138 | 95 | 296 | 14000 | 163 | |
Φ50 | 50×50×0.8 | 121 | 95 | 350 | 7000 | 144 | |
Φ76 | 76×76×1.0 | 75 | 95 | 280 | 1950 | 86 | |
IMTP ring | Φ25 | 25×20×0.6 | 185 | 96 | 409 | 101160 | 209 |
Φ38 | 38×30×0.8 | 112 | 96 | 365 | 24680 | 137 | |
Φ50 | 50×40×1.0 | 75 | 96 | 291 | 10400 | 85 | |
Φ76 | 76×60×1.2 | 58 | 97 | 245 | 3320 | 63 | |
interlock | Φ25 | 25×25×0.5 | 179 | 96 | 314 | 87720 | 202 |
Φ38 | 38×38×0.6 | 144 | 97 | 214 | 35800 | 156 | |
Φ50 | 50×50×0.8 | 82 | 97 | 228 | 11130 | 90 | |
Φ76 | 76×76×1.0 | 57 | 98 | 197 | 4250 | 61 | |
super mini ring | Φ16 | 16×5.5×0.5 | 348 | 92 | 604 | 630000 | 312 |
Φ25 | 25×9.0×0.6 | 228 | 94 | 506 | 160000 | 280 | |
Φ38 | 38×12.7×0.7 | 150 | 95 | 390 | 48000 | 175 | |
Φ50 | 50×17×0.8 | 115 | 97 | 275 | 21500 | 156 | |
cascading ring | Φ25 | 25×12.5×0.5 | 221 | 95 | 383 | 98120 | 257 |
Φ38 | 38×19×0.6 | 153 | 96 | 325 | 30040 | 173 | |
Φ50 | 50×25×0.8 | 109 | 96 | 308 | 12340 | 123 | |
Φ76 | 76×38×1.2 | 72 | 96 | 306 | 3540 | 81 | |
pull tab | Φ25 | 25×25×0.5 | 219 | 95 | 393 | 51940 | 255 |
Φ38 | 38×38×0.6 | 146 | 96 | 318 | 15180 | 165 | |
Φ50 | 50×50×0.8 | 109 | 96 | 314 | 6500 | 124 | |
Φ76 | 76×76×1.2 | 71 | 96 | 308 | 1830 | 80 |
