Showroom location: | not any | Health status: | new |
payment terms: | L/C,T/T,Alibaba Trade Assurance | Main selling point: | Free technical data and fast delivery |
brand: | Walley | Packaging Details: | Wooden case or as per request. |
port: | Tianjin harbor | Marketing Type: | Hot Products of 2019 |
Video external inspection: | if | Applicable industries: | Manufacturing, Energy & Mining, Petrochemical |
place of origin; place of origin: | Hebei china | Warranty: | 3 months |
Mechanical test report: | Not available | Supply capacity: | 999 pieces per month York mesh 431, 421, 326 wire mesh 2205 mist eliminator factory supplier |
Weight (kg): | 50 | After Warranty Service: | spare parts |
Spare Parts Type: | Knitted wire mesh | | |
Product Description

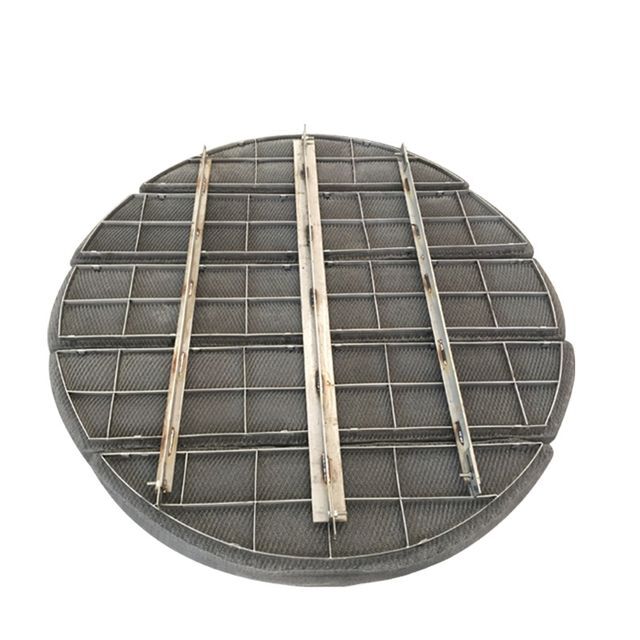

2205 defogging pad, diameter 1800mm.
The 2205 Mist Eliminator is an assembly of Wallace 2205 knitted wire mesh supported and held down by a high open area 2205 mesh. It can be made in any size and shape and can be installed in all new and existing craft vessels. The 2205 wire used in DEMISTER manufacturing is of the highest quality. It's smooth, clean, bright, and drains fluids quickly. Duplex stainless steel 2205 and special alloys are fully annealed to provide maximum corrosion resistance. Ensures a perfect fit even in non-circular containers, eliminating all steam bypasses. DEMISTER units can be designed to fit the smallest laboratories, the largest refineries or petrochemical towers.
Design and production arrangements

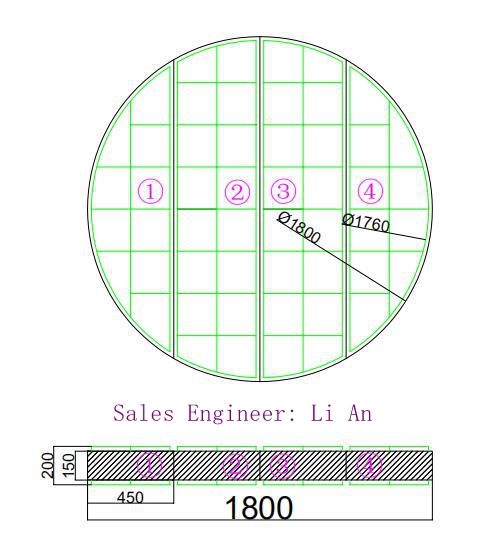

2205 defogging pad, diameter 1800mm
This is just one of my sketches. I learned this to better understand the structure and parts of a wire mesh demister. This way I can easily talk to clients and keep their requirements in mind.In fact, in our factory, we have professional workers to make design drawings, production plan drawings and installation guide drawings. All of these services are provided free of charge if you order the 2205 Demisting Mat from the Wallace factory.
In addition, if you can provide the operating data of your equipment, we can do some simple calculations for your reference, such as operating pressure drop, theoretical defogging efficiency, etc.
Product parameters
thing | value | unit |
Material | 2205 | / |
shape and size | Φ1800 | mm |
mesh thickness | 150 | mm |
Demeter height | 200 | mm |
grid density | 144 | kg/m³ |
void ratio | 0.982 | / |
specific area | 288 | square meter/cubic meter |
wire diameter | 0.25 | mm |
Effect area | 2.54 | square meter |
part | 4 | / |
grid | 25*3 flat bar | mm |
manufacturing process

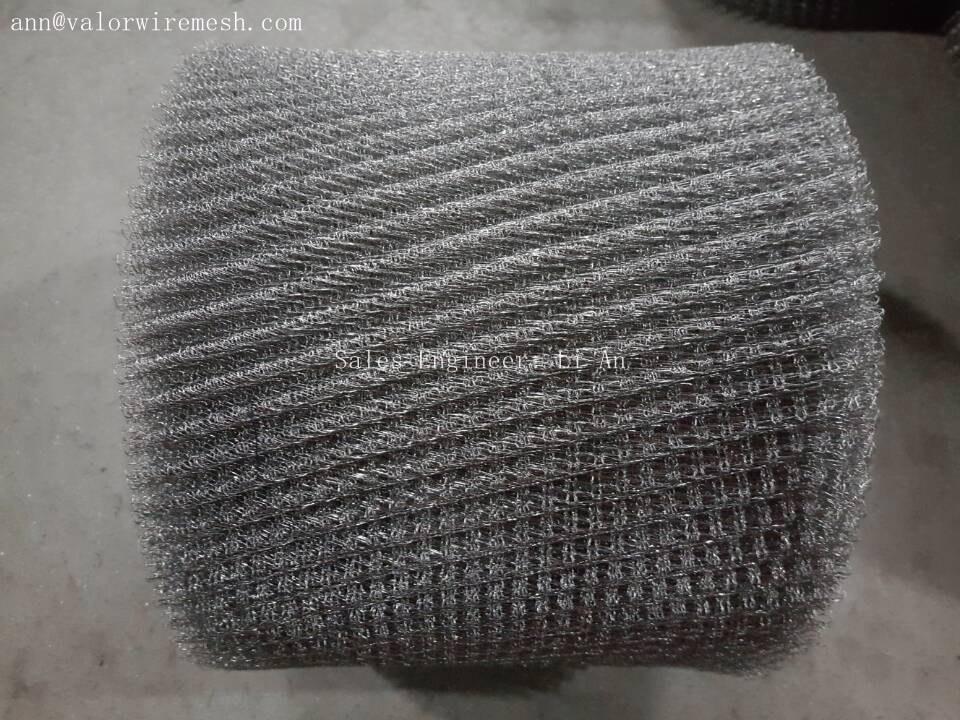

First of all, we prepare 2205 knitted mesh according to the requirements of material, wire diameter, mesh density, etc., which is used to make the mesh pad of the demister. At Hualai, we have our own knitted mesh workshop with dozens of different machines. In addition to supplying our demister department with tons of various knitted mesh fabrics each month, the shop can also fulfill external orders.

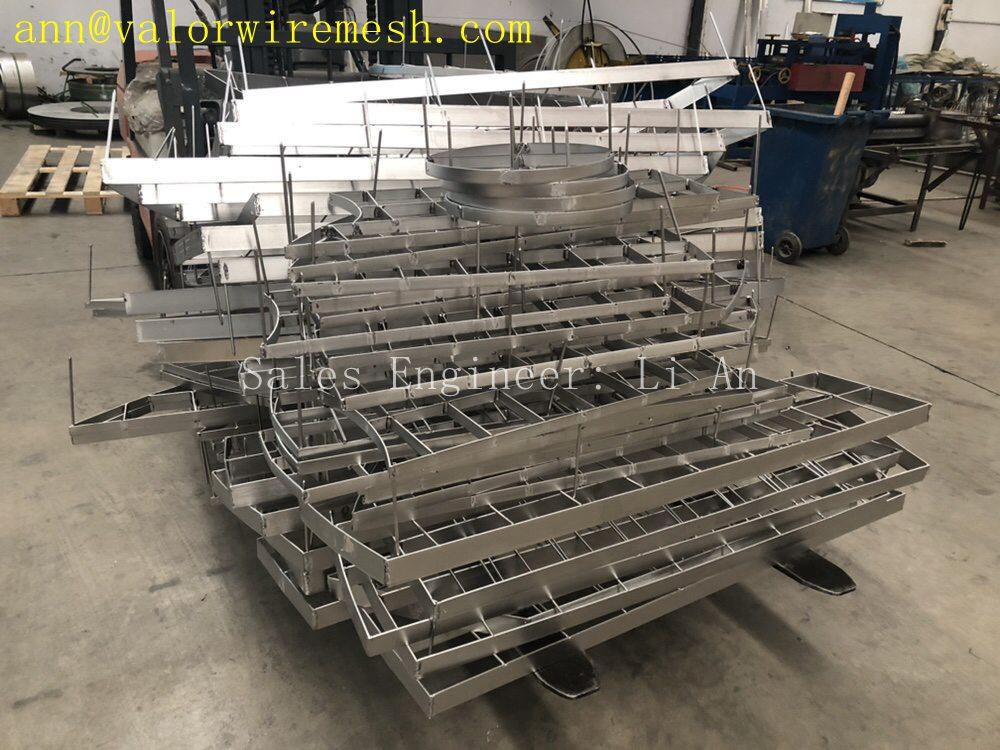

Second, we welded the 2205 mist eliminator grid. They can be made in any shape or size depending on the order and production schedule. Usually large mist eliminators are divided into appropriate subsections for installation through tower manholes. In most cases, meshes are built using the same materials as meshes. But they can also vary by order design.

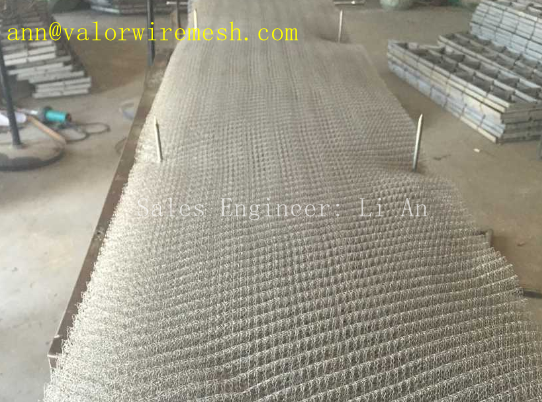

Third, our workers make 2205 mesh pads with multiple layers of crimped knitted wire mesh and connect it with meshes on the upper and lower sides. A demister is now complete. As an inspection process, the entire demister will be pre-bonded prior to packaging.

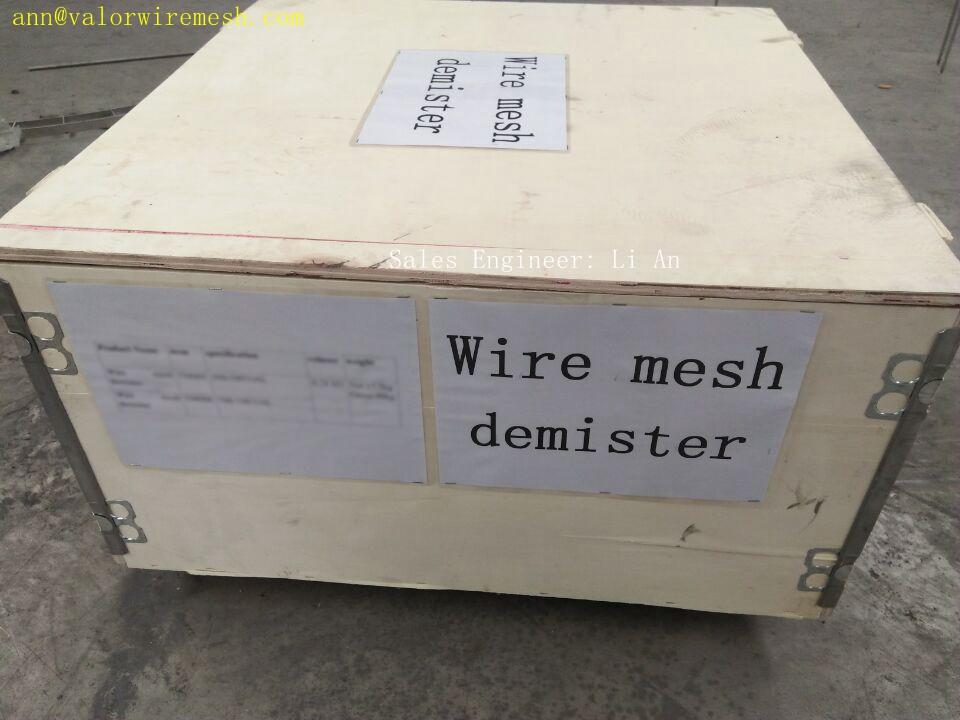

Finally, the qualified 2205 mist eliminator segments are packed into wooden boxes, ready to be shipped. Other packaging methods can also be negotiated, such as FCL container pallets, small demister cartons. OEM service is also available and welcome.
