The machines are ready for customized vane plate mist eliminator

Supplier: Anping County Hualai Metal Wire Mesh Co., Ltd.
Region: Hebei, China
Contact: Ms Hestia Jiang
Price: $29.80 / 1 - 19 sets
$28.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Name:	vane pack mist eliminator;	Condition:	New;
Payment Terms:	L/C,T/T,Alibaba Trade Assurance;	Payment:	TT;
Package:	pallets;	Port:	Tianjin Port;
Place of Origin:	Hebei, China;	Feature:	Corrosion Resistance;
Supply Ability:	999 Sets per Month The machines are ready for customized vane plate mist eliminator;	Shape:	as per order;
Packaging Detail:	pallet or as per request for Light Weight Cooling Tower Demister Drift eliminator vane pack drift Eliminator;	Applicable Industries:	Manufacturing Plant,two - phase separator;
After-sales Service Provided:	Online support;	Product name:	drift eliminator;
Local Service Location:	None;	Key Selling Points:	custom fabrication;
After Warranty Service:	Online support,Spare parts;	Marketing Type:	New Product 2020;
Warranty:	1 Year;	Brand Name:	Hualai;
Showroom Location:	None;	Color:	steel color;
Package Preview:	;	Video outgoing-inspection:	Provided;
Machinery Test Report:	Not Available;	Spare Parts Type:	corrugated vane plate;
MOQ:	1pc;	Certificate:	ISO9001;
Application:	Industry;

Product Description

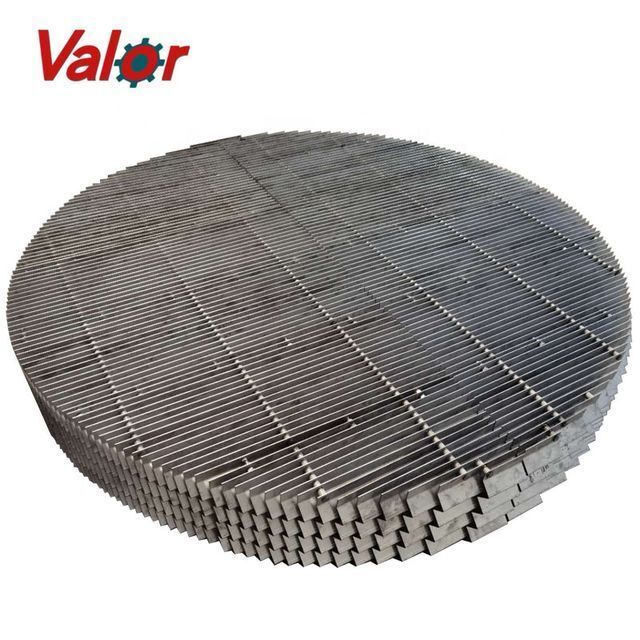

Vane Type Mist Eliminator

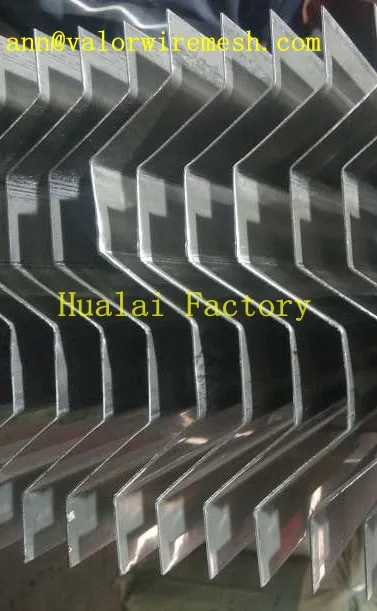

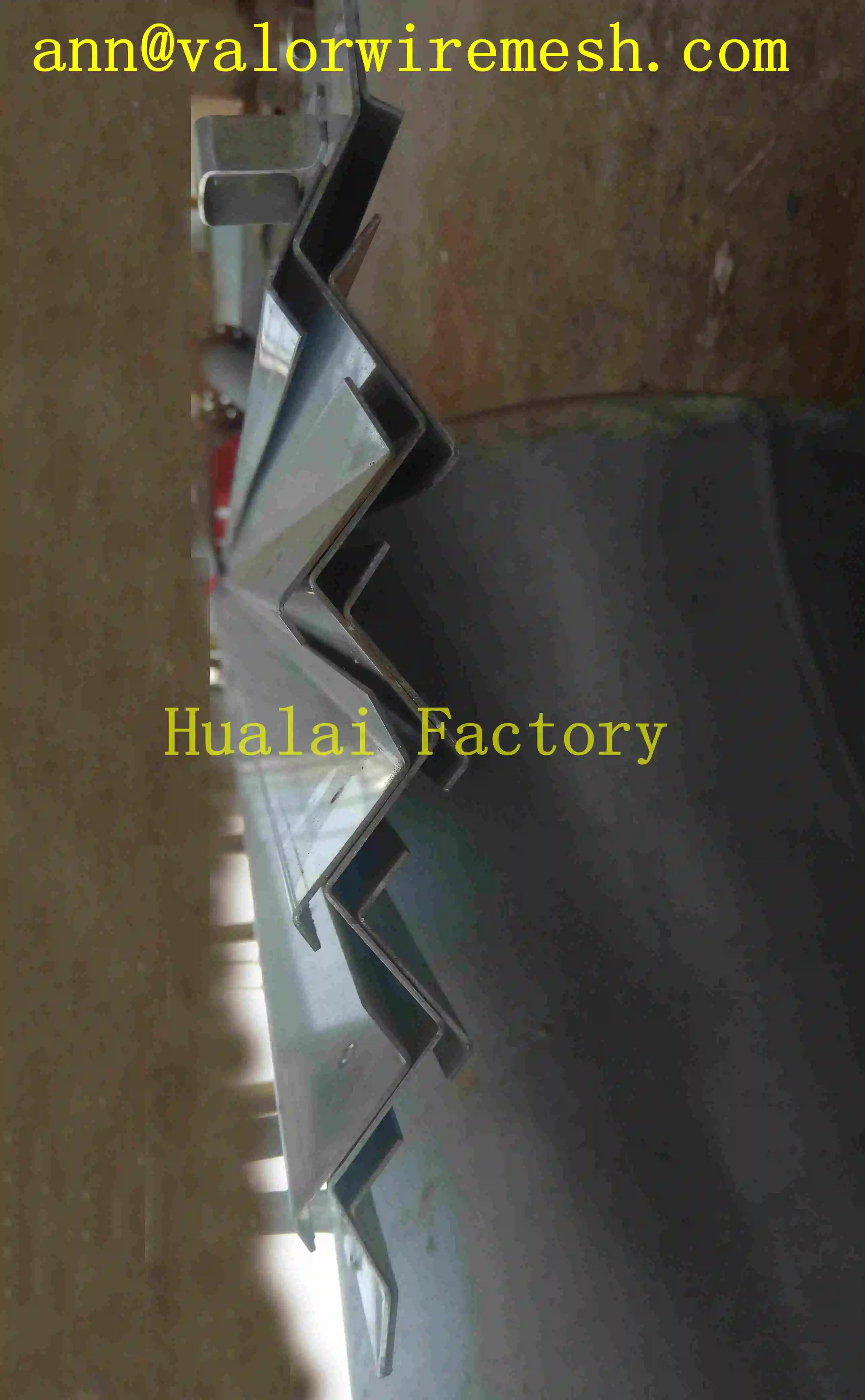

The vane pack mist eliminator consists of a set of chevron corrugated plates with well defined geometry. It is very popular and useful internals for gas liquid separation applications. These plates according to design and shape can remove the droplets more than 8 microns. Hualai factory has been producing a range of vane pack mist eliminators for critical applications in industrial use. Standard Material of vane type mist eliminator is stainless steel, other material is available as per order.

Working Principle

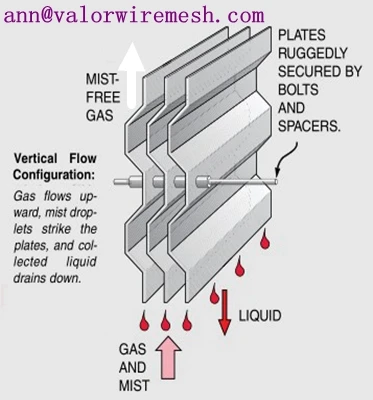

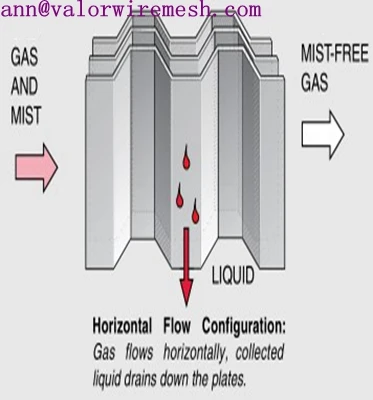

The Gas with entrained liquid droplets flows between the vanes of the Separator. The specifically designed channels form an inertial force trapping by impact all the mist and droplets. The abrupt change in airflow direction produces an inertial force that affects the entrapped droplets. The droplets are ejected from the gas stream by inertial force, impacting against the outer wall of the channel, forming a film on the channel wall. This film then drains back to the circuit or collection channel via basic gravity. and coalesce to a size where they drop down and are collected and removed. Vane arrays can be mounted horizontally or vertically. They are preferred in applications involving high vapour velocities, low available pressure drops, viscous or foaming liquids. slugs of liquids, or violent upsets, vane units are usually round or rectangular very similar to mesh pads. They are sometimes used in combination with mesh pads for optimum performance in special situations. Hualai standard vanes are available in metal or plastics and have various blade spacings. The metal vane profiles can be customized.

Product Benefits

1. Lower pressure drop.

2.Resistance to fouling.

3.High tensile strength.

4.Durable and long service life.

5.Custom-made design available.

6.High filtering and separating efficiency.

7.High capacity, 30% to 100% more capacity than mesh type.

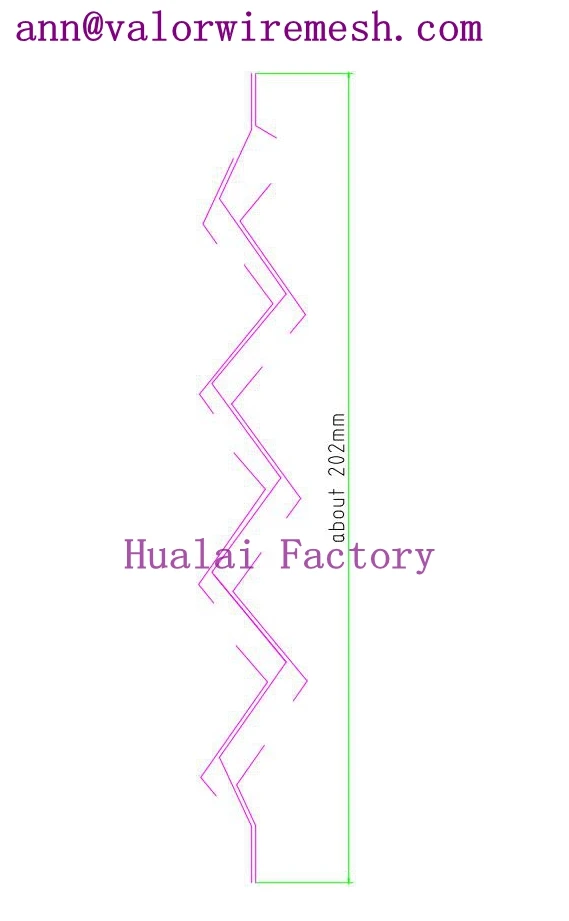

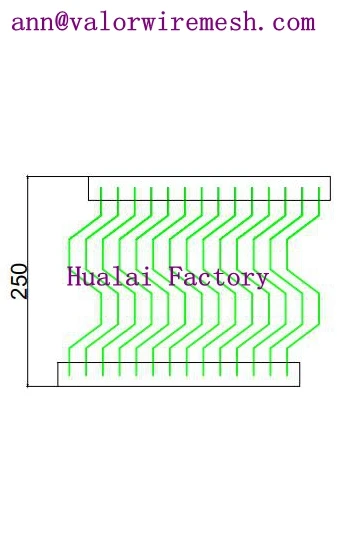

Product Design

Show us your ideas, we will REALIZE it for you!

Innovation Experiences

FINE MIST REMOVAL

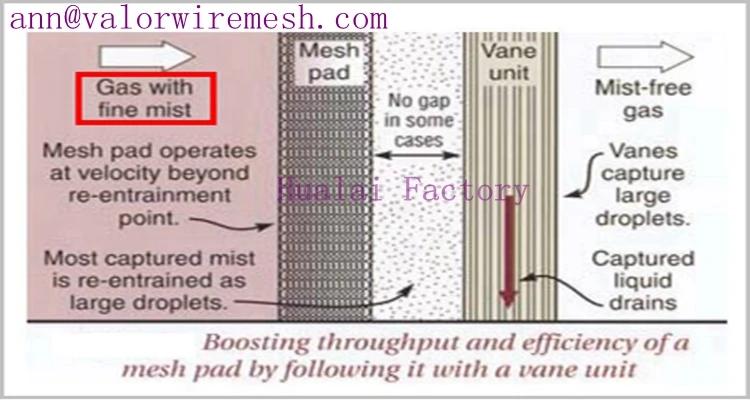

Removal of very small droplets can be achieved using a two stage mist eliminator by fitting a mesh pad to the upstream face of the unit to coalesce droplets as small as 4 to 5 microns into droplets in the size range which are easily removed by the vane separator.

Why Choose Us

We are in continuous progress of providing more professional, more considering, more competitive products. We have: 1.More than 12 years’ development and market leading position; 2.Close cooperation with universities and professional designing institutes; 3.Experienced engineers in both designing and manufacturing; 4.Skilled welders, devoted workers and enthusiastic sales team; 5.Advanced laser cutting, plate bending, punching and welding machines.

Sales Engineer: Mr. Li An Cell / wechat / whatsapp: 0086 13333087316 Warmly welcome your inquiry!
