Rail tank car, road tank car upper and lower loading arm

Product details
Video external inspection:ifMechanical test report:if
After Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair servicesLocal service location:not any
After-sales service provided:Free spare parts, video technical support, on-site maintenance and repair services, online support, on-site installation, commissioning and trainingPackaging Details:Plywood shell, metal frame or customized according to your requirements
Pipe material:Carbon steel, stainless steel, aluminum and aluminum alloy, PTFE lining, etc.Load Type:top loading
Key words:Loading Arm, Tank Loading Arm, Top Loading Armpayment terms:L/C,Western Union,T/T,MoneyGram
application:Gasoline, diesel, petroleum products and chemicalsport:Lianyungang, Shanghai, Qingdao Port
Main selling point:Good quality and reasonable priceplace of origin; place of origin:Jiangsu, China
Spare Parts Type:loading armSupply capacity:3000 sets per year
Warranty:1.5 yearsNominal diameter:DN40~DN150 (2"~6")
brand:LYGSVTShowroom location:not any
product name:Railroad Tank Car Loading ArmHealth status:new
Marketing Type:normal productset tempreture:-196 to +110℃
color:grey, or customer requestAccessories:Skid block, liquid level alarm, static grounding system, metering system
Applicable industries:Energy and Mining
Product Description
top loading arm

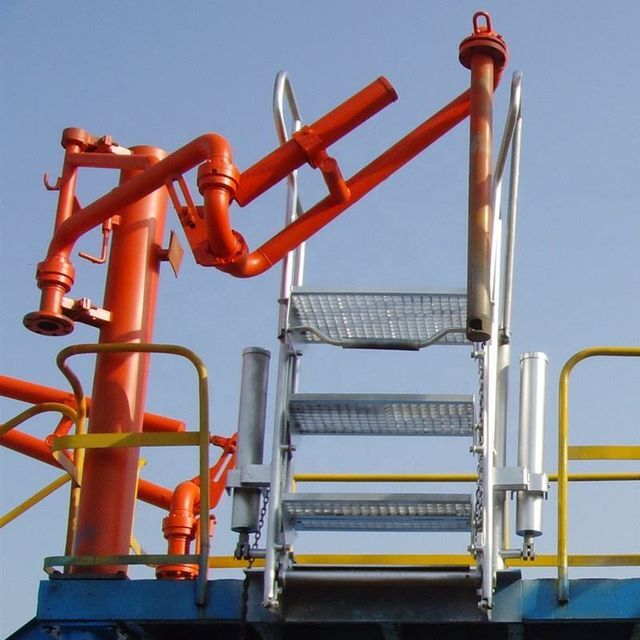

Our land loading arms are designed to transfer fluids between piping systems and tankers and should be designed for different tankers, liquids and site conditions. Equipped with a loading platform, folding stairs and safety cage, making the land loading arm a complete loading system.

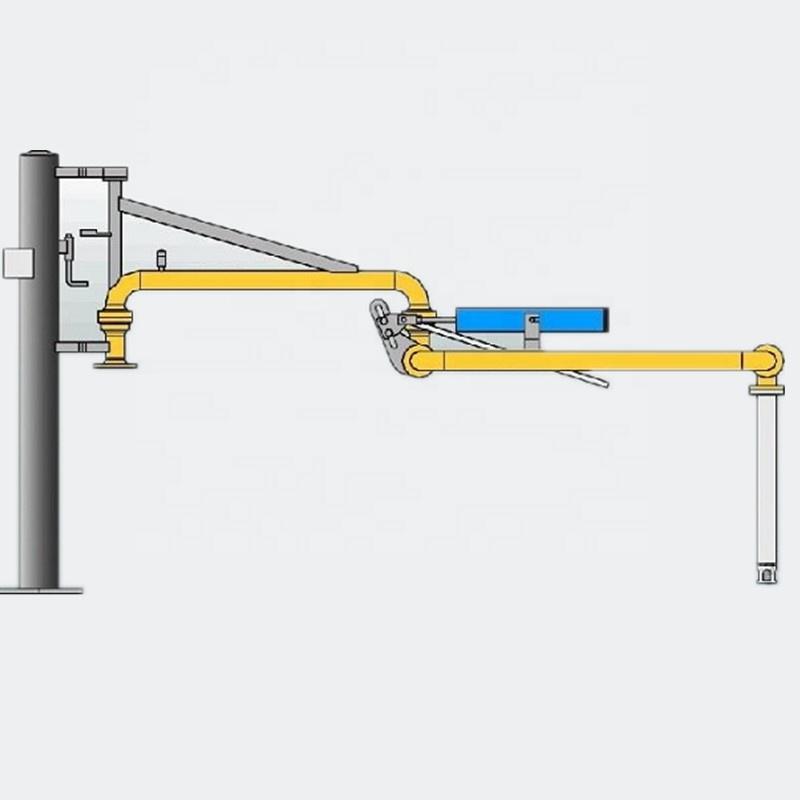

AL1402 Top Loading ArmMainly consists of riser, inner arm, outer arm, spring cylinder balance system, locking system, sealing cone (if required), steam return pipe (if required), downspout. It can also be equipped with a liquid level alarm system, which can issue an audible and visual alarm or a remote signal when the set liquid level is reached.
The configuration of the loading arm is based on customer requirements.

feature
* Simple structure, wide application and convenient operation.
* The advanced universal joint design makes it easier to replace the sealing ring and has good leak-proof performance.
* Spring cylinder makes the movement of the loading arm smooth and the adjustment is easier.
*Accessories include: ball valve, disconnect fitting, purge/drain, position indicator to allow
Process controls, overflow probes, pressure gauges.
Product parameters
product name
Petroleum and Chemical Top Loading Arms
service product
Chemicals, Petroleum and Other Products
Nominal diameter
DN50~ DN150 (2" to 6")
Steam return pipe diameter (if required)
DN50, DN80 (2", 3")
designpressure
-0.08 MPa~ +2.5 MPa
set tempreture
-196°C~ +110°C
pipe
Carbon steel, stainless steel, low temperature steel, lined with PTFE
balance
Spring cylinder balance
