AL1412 sealed top loading arm with gas return pipe and sealed cap
-
Supplier: Lianyungang Saiweite Fluid Equipment Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Hua Sun -
Price: $1499.00 /set -
Min. Order: 1 set
| Port: | Lianyungang, Shanghai, Qingdao Port; | Nominal diameter: | Liquid: 2", 3", 4", 6"; Vapor: 1", 2", 3", 4"; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Application: | volatile or hazardous products, LPG, liquid ammonia, liquid chlorine; |
| Pipelines' material: | Carbon Steel, Stainless Steel, PTFE lined, etc; | Place of Origin: | Jiangsu China; |
| Type of Loading: | top closed loading & unloading; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Supply Ability: | 3000 Set/Sets per Year; | Brand Name: | LYGSVT; |
| Color: | Grey, or as required; | Packaging Detail: | Plywood case, metal frame, or custom-built as to your requirements; |
Loading Arm
Our loading arm is especially designed for loading and unloading liquids from railcars and tank truck.
The type of land loading arm is divided into top loading arm and bottom loading arm.Our loading arm can be customized as the requirements of customer, characteristics of liquids, local conditions etc.Equipped with loading platform, folding stairs and safety cage to make the loading arm into a complete loading system.

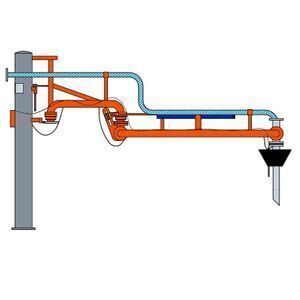

AL1412 is a typical model of closed loading arms with vapor recovery pipe. It has two arms, the liquid pipe and the vapor recovery (return) arm. The vapor return pipe can be flexible hose or metal pipe. It can often be used to load some volatile and hazardous products. It can be easily operated, installed and maintained and has good vapor recovery ratio.
.
Design Parameters
| Nominal Diameter | Liquid pipe: DN50~DN150 (2",3",4", 6"); Vapor return pipe: DN25~DN100 (1", 2", 3",4") |
| Design Pressure | 0.6MPa~2.5MPa |
| DesignTemperature | -30°C~+120 °C |
| Balancing Method | Spring balance cylinder |
| Pipeline Material | Carbon steel, Stainless steel, PTFE-lined, etc. |
| Service Product | Product oils, chemicals, especially for volatile or hazardous products, LPG, liquid ammonia, liquid chlorine, etc. |

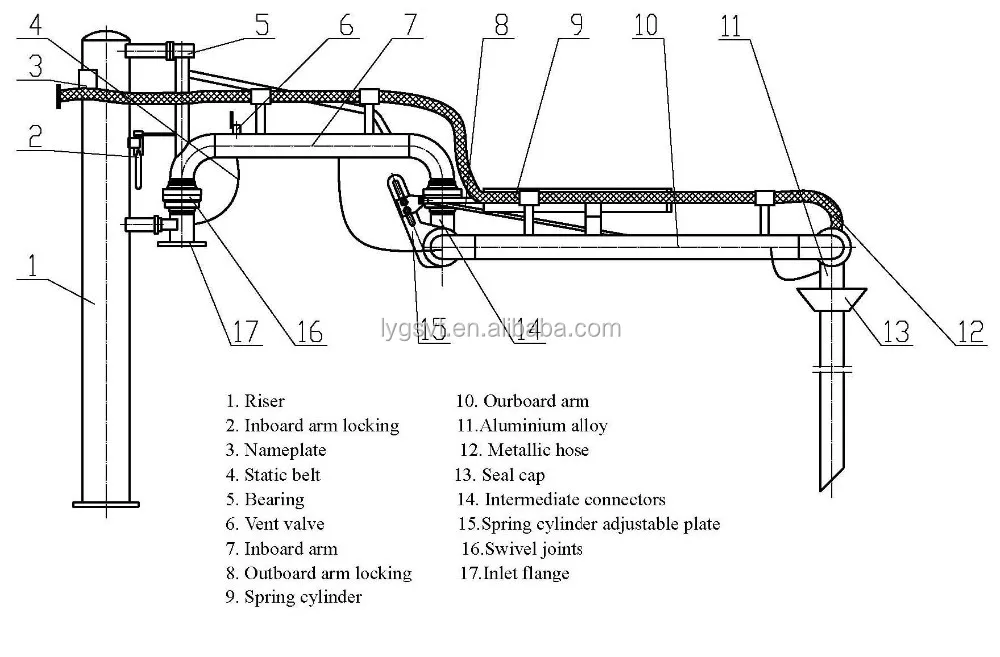

Structure Drawing
Major Models:
Lianyungang Saiweite Fluid Equipment Co., Ltd. (LYGSVT) specializes in the design, manufacture, sale and installation of petrochemical storage and transfer equipment & system.
LYGSVT offers wide variety in products for the tank storage and fluid transfer in the petroleum and petrochemical industry. Our main products include:
Storage Tank Equipment
• Internal Floating Roofs
• Floating Roof Seals
• Floating Suction Unit
Fluid Handling Equipment
• Land Loading Arms
• Folding Stairs
• Marine Loading Arms
• Gangway Tower
• Automatic Quantitative Loading System
-
