Automatic skid-mounted bulk loading arm with loading control system

The types of land loading arms are divided into top loading arms and bottom loading arms. Our loading arms can be customized according to customer requirements, liquid properties, local conditions and more.

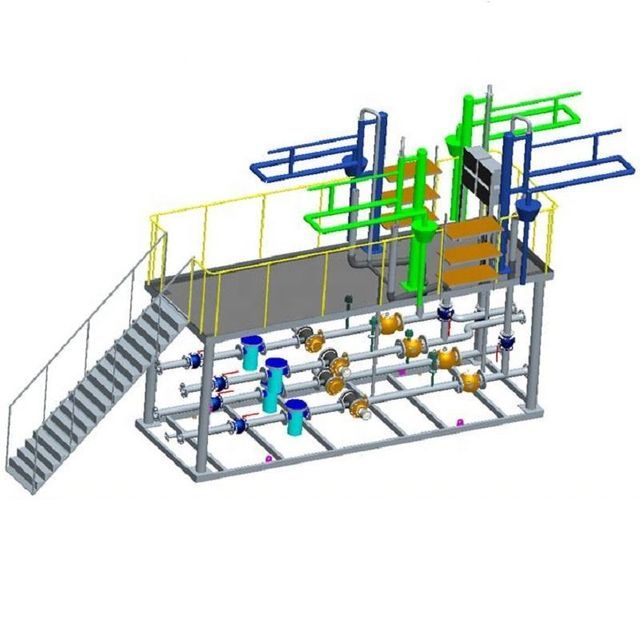

Skid system

Terminal skids are used to transfer high-value products from warehouses to trucks, rail cars, ships and barges. The transfer of crude oil, bunker fuels, refined fuels, ethanol, biodiesel, LPG, bitumen, diesel exhaust fluid, fertilizers and a wide variety of chemicals and food products often involves moving products safely through bulk flow meters for precise measurement.

Fuel terminals and refineries require well-designed, well-built and reliable loading systems. Our loading skids are designed as tailor-made solutions according to customer requirements. We have worked for many oil companies providing loading skids and other tailor-made loading solutions for tanker loading.

Our skids are fully integrated loading systems including pumps, gauges, loading arms and all associated safety systems, all mounted on a strong and corrosion resistant steel frame.

One loading skid can be equipped with up to 6 loading arms, and 6 loading arms can work at the same time, and each loading arm can work independently without interfering with each other. And it can be used in conjunction with the bottom quantitative charging control system and the bottom anti-overflow ESD system.

Design Parameters

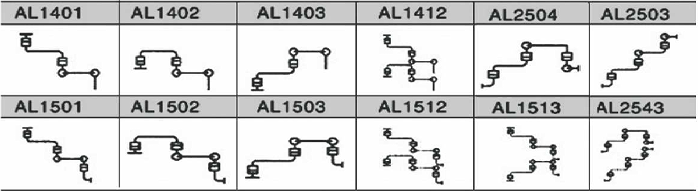

Main model:
