JB series spice power screw feeder

Supplier: Jiangyin Baoli Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Mr TAO TAO
Price: $2600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local service location:	not any	Applicable industries:	Food and Beverage Factory
Showroom location:	not any	Core Components Warranty:	1 year
Marketing Type:	New Products 2020	Minimum order quantity:	1 set
Supply capacity:	30 sets per month	weight:	350kg
Transmission length:	0.008 km	Certification:	EU standard
Warranty:	1 year	payment terms:	letter of credit, wire transfer
Main selling point:	low noise level	Mechanical test report:	if
Application:	Chemical, food and pharmaceutical production lines	After Warranty Service:	Online support
Packaging Details:	Shrink wrap and wooden crates	Lifting height:	8 meters
After-sales service provided:	Engineers can service machinery overseas, on-site installation, commissioning and training	place of origin; place of origin:	Jiangsu, China
Health status:	new	port:	Shanghai
Video external inspection:	if	Core components:	PLC, pressure vessel
brand:	JB

illustrate:

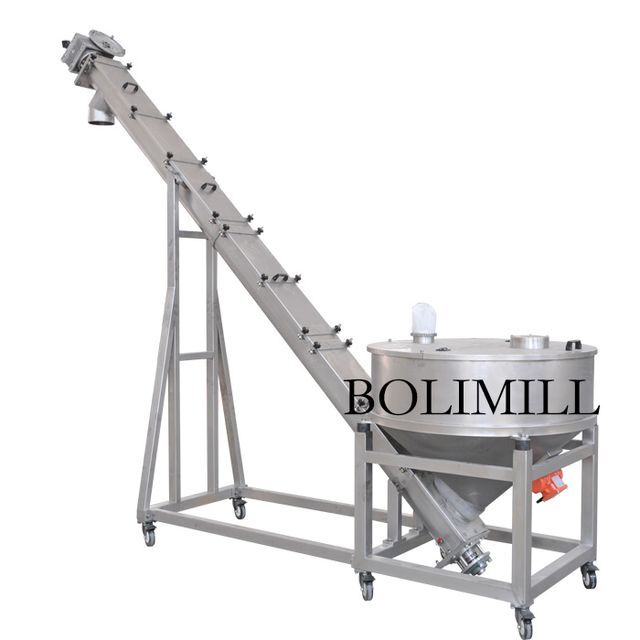

This vibrating screw feeder can transport a variety of materials. Combined with our company's packaging machine, material condition tracking can be carried out. Can also be used alone. The whole machine is made of stainless steel, except for the motor, transmission and frame.

feature:

l The vibrating screw feeder is composed of double motors, feeding motor, vibration motor and each switch control.

l The hopper is adjustable and vibrates to make the material flow easily. Good for material.

l The hopper is separated from the torsion shaft. Reasonable structure and convenient loading and unloading.

l Dust-proof characteristics, the bearing is not polluted by dust and powder.

l In order to facilitate the cleaning of waste materials, the machine is designed to discharge in reverse, store the material at the bottom of the hopper tube, and take out the screw as a whole.

Technical data:

Model	JB-4S2	JB-4S3	JB-4S5	JB-4S7
charging capacity	2 m3/hour.	3 m3/hour.	5 m3/hour.	7 m3/hour.
powder supply	550W	750W	1.5KW	2.2KW
Pipe diameter	φ102mm	φ114mm	φ141mm	φ159mm
Hopper volume	150L	150L	150L	150L
power supply	3P 208-415V 50-60Hz
charging angle	General 45 degrees, special inquiry 30 degrees, 60 degrees
charging height	Standard 1.80m, can be designed with different heights 1-5m
gross weight	130kg	150kg	200kg	250kg
Hopper dimensions	1150×850×1000mm
Comment	Other charging capacities can be designed
