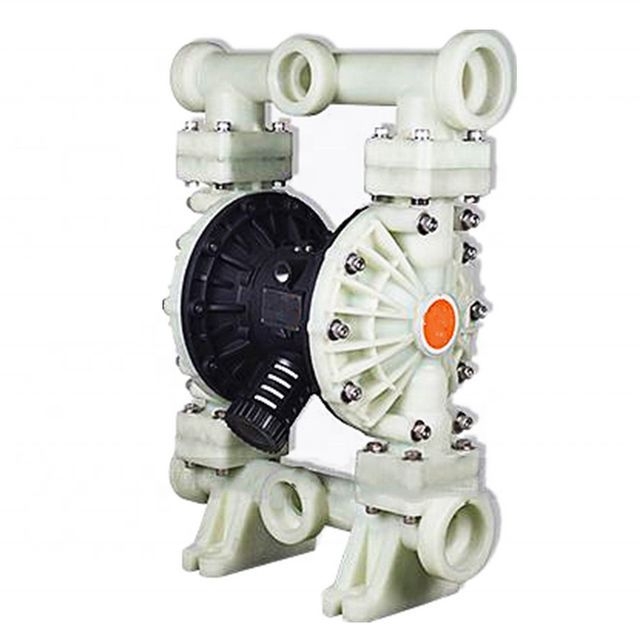

1.5 inch PP pneumatic double diaphragm glue pump

Supplier: Jinan H-Level Industrial Facility Co., Ltd.
Region: Shandong, China
Contact: Ms Jane Qian
Price: $180.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Packaging details:	carton	Transmission length:	0.08 km
Core components:	Pump	diameter:	1.5 inches, DN40mm
Core component warranty:	3 years	Package preview:
weight:	13.5	flow:	170 liters/minute
Applicable industries:	Manufacturing plants, construction and engineering, energy and mining, food and beverage outlets, other	Supply capacity:	10,000 sets per month
Dimensions (lengthwidthheight):	492653cm	Health status:	new
connect:	Thread (bsp), customizable flange	Place of origin:	China
head:	84m	Diaphragm material:	2 pieces of Santoprene + 2 pieces of PTFE
particle:	<4mm	brand:	Class H
Warranty:	3 years	Main selling points:	long lasting
payment terms:	Western Union, wire transfer	Marketing type:	Hot Products of 2023
port:	Shanghai or other ports	Showroom location:	Canada, Vietnam, Philippines, Indonesia, Russia, Spain, Thailand, South Korea, United Arab Emirates, Japan, Malaysia
Name:	PP pneumatic diaphragm pump	Material:	PP
Lift height:	5.48 meters	Video outbound inspection:	if
Air inlet size:	1/2 inch	Mechanical test report:	if

Product Description

QBY3-40, 1.5-inch pneumatic PP pneumatic diaphragm pump, self-priming, CE certificate

Model	QBY3-40
Material	polypropylene
flow	170 liters/minute
import and export	1.5 inches, 40 mm
pressure	8.4 bar
air inlet	1/2 inch
Suction lift height	5.48m
maximum particle size	3.2mm
Air consumption	0.67 cubic meters/minute

Performance

Durable, long service life (5-year warranty for the body), low noise, low vibration, no collision problems, and excellent workmanship. Suitable for liquids and difficult-to-flow materials. It has the advantages of self-priming pump, submersible pump, slurry pump, impurity pump, etc.

Self-preparing

No water filling is required, the self-priming height can reach 4.5m, and the particle size can reach 3mm; the wear on the pump is very small when transporting slurry and impurities.

The flow rate and head can be adjusted through the damper.

safe operation

There are no rotating parts, no shaft seal, and the medium and pump running parts are separated by a diaphragm. When pumping toxic and corrosive materials, it will not cause environmental pollution or harm the human body.

No electricity required, safe for flammable and explosive environments.

China Diaphragm Pump Manufacturer Air Operated Diaphragm Pumps for Solutions and Powders

Pneumatic diaphragm pump is a new type of conveying device, used to convey various liquids, slurries, powders and other materials, even high-viscosity, volatile, flammable and highly toxic liquids

feature:
Our diaphragm pumps feature a non-sealed design
Explosion proof
Suitable for low cutting conditions
Easy maintenance
Allow no-load operation
Light and portable
Self-priming start
Multiple material options, suitable for a variety of materials
advantage:
1) It can work under harsh air sources, and the reversing valve is reliable and not easily damaged.
2) The air path is smooth, and there is no air path obstruction in the 1/2' to 3' pump, ensuring flexible reversal.
3) The reversing valve is fully serviceable externally.
4) Fewer moving parts compared to other diaphragm pumps.
5) Pilot-operated reversing valve has long service life and ensures continuous operation.
6) A reversing valve is suitable for pumps of different specifications.
application:
Diaphragm pumps can be used in ship/bus/train unloading, chemical production, batch processing and mixing, tank or tank farm conveying, general feed conveying, system flushing, wastewater treatment or fluid filtration, packaging or filling, recovery and recycling .

structure

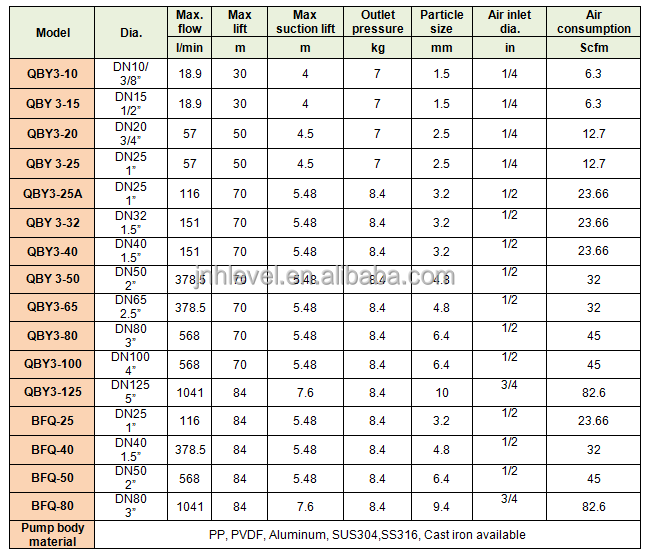

Specification

Applications

Application submitted	Material
Chemical	Acids, bases, solvents, suspensions, dispersions.
Petrochemical industry	Heavy oil, grease, mud, sludge
Painting industry	Resins, solvents, colorants, coatings
Daily chemical industry	Detergents, shampoos, lotions, lotions, hand creams, surfactants
Ceramic industry	Mud, porcelain slurry, lime slurry, clay slurry
mining	Coal slurry, magma, mud, mortar, lubricating oil
water treatment	Lime slurry, soft sediment, wastewater, chemicals, wastewater
food industry	Liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey
Beverage industry	Yeast, syrup, concentrate, gas-liquid mixture, wine, juice, corn steep liquor
medical	Solvents, acids, alkalis, plant extracts, ointments and other types of medicinal liquids
papermaking	Adhesives, resins, paints, inks, pigments, hydrogen peroxide
electronic product	Solvents, plating solutions, cleaning solutions, nitric acid, waste acid, corrosive acid, polishing fluid
textile	dyes, resins, gels
architecture	Grout, Tile Adhesives, Rock Grout, Ceiling Finishes
Automobile industry	Polishing lotions, oils, coolants, automotive primers, oil emulsions, varnishes, varnish additives, degreasers
furniture	Adhesives, varnishes, dispersants, solvents, stains, wood glue, epoxy resins, starch adhesives
