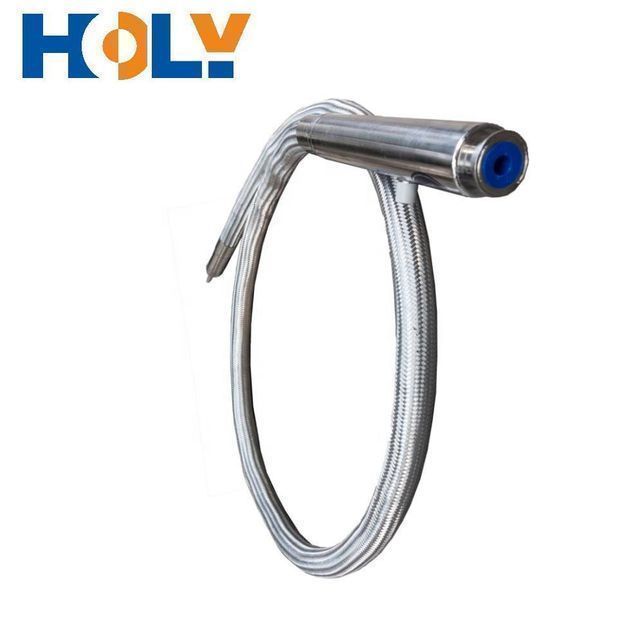

ASME & CE DN10-150 Stainless Steel Low Temperature Vacuum Jacketed Braided Hose

Supplier: Chengdu Holy Cryogenic Equipment Co., Ltd.
Region: Sichuan, China
Price: $150.00 /meter
Min. Order: 1 meter

Click here to contact

Product details

Generator Certification:	ASME and CE	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
weight:	10	Warranty:	1 year
Marketing Type:	normal product	Packaging Preview:
Health status:	new	Certification:	ASME & ISO9001
Mechanical test report:	if	brand:	HL
Material:	Stainless steel	Transmission length:	10 km
Lifting height:	200 meters	place of origin; place of origin:	Sichuan, China
After-sales service provided:	Video technical support	application:	industrial
After Warranty Service:	Video technical support	Supply capacity:	2000 meters per quarter
Function:	conveying cryogenic liquids	Video external inspection:	if
After warranty:	spare parts	Core components:	300 series stainless steel pipe, 300 series stainless steel pipe fittings, compensator
type:	pipeline	Core Components Warranty:	1 year
Main selling point:	energy saving	Showroom location:	not any
Packaging Details:	Metal shelves without wood. The vacuum insulated pipe (VIP) should be cleaned before packing and keep the inner pipe filled with nitrogen. VIP is wrapped by two layers of packing material. The first layer, VIP is completely sealed with film to prevent moisture, and the second layer is completely wrapped with packing cloth, mainly to prevent dust and scratches. Packaged VIPs will be placed on metal shelves as shown.	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Advertising Agencies, other
port:	Shanghai Port, Qingdao Port, Shenzhen Port, Chongqing Port	After-sale service:	Online support

introduce

Vacuum insulation piping system, namely vacuum jacket piping system, adopts high vacuum, multi-layer and multi-screen special insulation material, undergoes a series of extremely strict technical treatment and high vacuum treatment, and is used for LO₂, LN₂, Lal, LH₂, LHe and LNG.

Product Details

In order to best meet the different needs of customers, the vacuum insulated hose has developed four connection types, namely vacuum bayonet connection type with clamp, vacuum bayonet connection type with flange and bolt, screw connection type and welding connection type. They have different advantages and are suitable for different working conditions.

	Vacuum bayonet connection type with clip	Vacuum bayonet connection type with flange and bolt	Solder connection type	Threaded joint connection type
Connection Type	clip	Flanges and Bolts	welding	Wire
Connector Insulation Type	vacuum	vacuum	perlite or vacuum	Wrap insulation
On-site insulation treatment	Do not	Do not	Yes, perlite is filled into or evacuated from the insulating sleeve at the joint.	Yes
Nominal diameter of inner tube	DN10(3/8")~DN25(1")	DN10(3/8")~DN80(3")	DN10(3/8")~DN150(6")	DN10(3/8")~DN25(1")
design pressure	≤8 bar	≤16 bar	≤40bar	≤16 bar
Install	simple	simple	welder	simple
length	1~8.2 meters
Material	Stainless steel 304, 304L, 316, 316L
Moderate	LN₂, LOX, LAr, LHe, LH₂, liquified natural gas
