Commercial dry spice turmeric medicine herb powder grinding machine
-
Supplier: Jiangyin Baoli Machinery Manufacturing Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr TAO TAO -
Price: $2500.00 /set -
Min. Order: 1 set
| Warranty of core components: | 1 Year; | Packaging Detail: | wooden packing or container for Commercial dry spice turmeric medicine herb powder grinding machine; |
| Voltage: | Differences; | Condition: | New; |
| Place of Origin: | China; | Model Number: | Differences; |
| Speed: | 1400-4650rpm; | Weight: | Differences; |
| Function: | grinding; | Application: | medical,chemical,pesticide,food and provision industries; |
| Supply Ability: | 50 Set/Sets per Month; | Capacity: | 20-1500kg; |
| Model type: | Universal crusher; | Brand Name: | BOLIMILL; |
| Type: | Spice Machine; | material: | sus304/316; |
| Marketing Type: | New Product 2020; | Certification: | ISO CE; |
| Automatic Grade: | Automatic; | Dimension(L*W*H): | Differences; |
| Power: | Differences; | Port: | SHANGHAI; |
| Package Preview: | ; | Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | After-sales Service Provided: | Online support; |
| Warranty: | 1 Year; | Production Capacity: | 90-98%; |
| Machinery Test Report: | Provided; | Product name: | Commercial dry spice turmeric medicine herb powder grinding machine; |
| Local Service Location: | None; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Showroom Location: | None; |
| Key words: | sugar pulverizer; | Video outgoing-inspection: | Provided; |
| Product: | powder (12-120mesh); |

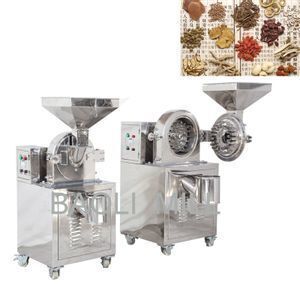

Commercial dry spice turmeric medicine herb powder grinding machine
Main application:
It is widely applied in the medical, chemical, pesticide, food and provision industries.
Specialty:
It makes use of the highspeed relative movement of the movable fluted disc and the fixed fluted disc to crush
the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual
striking of the materials. Since it features a simple structure, firm and stable operation and good crushing
effect, the crushed material can be discharged directly from the grinding chamber of the host machine and
the desired granule size can be obtained by installing screens with different apertures. Besides, the whole
machine is made of stainless steel. The inner surface of the enclosure becomes smooth through processing,
thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.
As a result, the production of medicine, food and chemical products can better conform to the state standard
and the GMP requirement.
Technical Data:
|
Model |
20 |
30 |
40 |
60 |
80 |
|
Capacity(kg/h) |
20-150 |
30-300 |
40-800 |
80-1200 |
150-2000 |
|
Speed of principle axis (rpm) |
4500 |
3800 |
3400 |
3000 |
2100 |
|
Size of input granule (mm) |
6 |
10 |
12 |
15 |
20 |
|
Crushing Fineness (mesh) |
12-120 |
12-120 |
12-120 |
12-120 |
12-120 |
|
Power (kw) |
4 |
7.5 |
11 |
22 |
30 |
|
Overall size (L*W*H) (mm) |
700*900* 1500 |
800*1100* 1700 |
850*1200* 1850 |
950*1300* 1950 |
1100*1000* 2100 |
|
Weight (kg) |
250 |
350 |
450 |
800 |
1200 |
|
Material |
SS304 |
SS304 |
SS304 |
SS304 |
SS304 |
It is widely used in the medical,chemical,pesticide,food and provision industries.
Please check the following pictures for your reference.
If you want to send inquriy to me about our Commercial dry spice turmeric medicine herb powder grinding machine, could you please tell me?
1) What material you want to grind, is it dry? what is the size of feed material ?
2) What capacity you expect by one JB spice mill ? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
