After-sales Service Provided: | Online support; | Brand Name: | Jinbao; |
Certification: | ISO CE; | Port: | SHANGHAI; |
Application: | medical,chemical,pesticide,food and provision industries; | Usage: | Sugar; |
Weight: | 230-18000kg; | Voltage: | 220V 380V 415V 440V; |
Function: | grinding; | Place of Origin: | Jiangsu China; |
material: | sus304/316; | Speed: | 1400-4650rpm; |
Packaging Detail: | wooden packing or container for sugar & salt commercial powder grinder pulverizer price; | Warranty: | 24 Months; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Capacity: | 20-1500kg; |
Supply Ability: | 50 Set/Sets per Month; | Dimension(L*W*H): | Designed; |

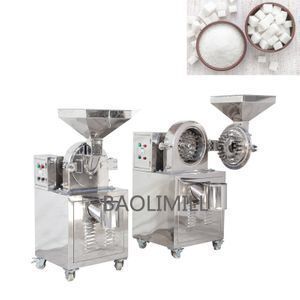

Product name: | sugar & salt commercial powder grinder pulverizer price; | Model Number: | JB-20/30/40/50/60/80; |
Power(W): | 4-45kw; | Product: | powder (12-120mesh); |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Type: | Sugar Mill; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Key words: | sugar pulverizer; |
Model type: | Universal crusher; | Condition: | New; |
Main application:
It is widely applied in the medical, chemical, pesticide, food and provision industries.
Specialty:
It makes use of the highspeed relative movement of the movable fluted disc and the fixed fluted disc to crush
the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual
striking of the materials. Since it features a simple structure, firm and stable operation and good crushing
effect, the crushed material can be discharged directly from the grinding chamber of the host machine and
the desired granule size can be obtained by installing screens with different apertures. Besides, the whole
machine is made of stainless steel. The inner surface of the enclosure becomes smooth through processing,
thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.
As a result, the production of medicine, food and chemical products can better conform to the state standard
and the GMP requirement.
Technical Data:
Model | 20 | 30 | 40 | 60 | 80 |
Capacity(kg/h) | 20-150 | 30-300 | 40-800 | 80-1200 | 150-2000 |
Speed of principle axis (rpm) | 4500 | 3800 | 3400 | 3000 | 2100 |
Size of input granule (mm) | 6 | 10 | 12 | 15 | 20 |
Crushing Fineness (mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
Power (kw) | 4 | 7.5 | 11 | 22 | 30 |
Overall size (L*W*H) (mm) | 700*900*1500 | 800*1100*1700 | 850*1200*1850 | 950*1300*1950 | 1100*1000*2100 |
Weight (kg) | 250 | 350 | 450 | 800 | 1200 |
Material | SS304 | SS304 | SS304 | SS304 | SS304 |
If you want to send inquriy to me about our JB grinding mill, could you please tell me?
1) What material you want to grind, is it dry? what is the size of feed material ?
2) What capacity you expect by one JB spice mill ? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
