After-sales service provided: | On-site installation, commissioning and training | usage: | Salt |
Package preview: | Voltage: | custom made | |
type: | production line | strength: | custom made |
payment terms: | L/C, T/T | Origin: | Jiangsu, China |
weight: | custom made | port: | Shanghai |
Health status: | new | Warranty: | 1 year |
brand: | RSE | Packaging Details: | Standard export packaging |
Supply capacity: | 30 sets per year | Dimensions (L*W*H): | custom made |

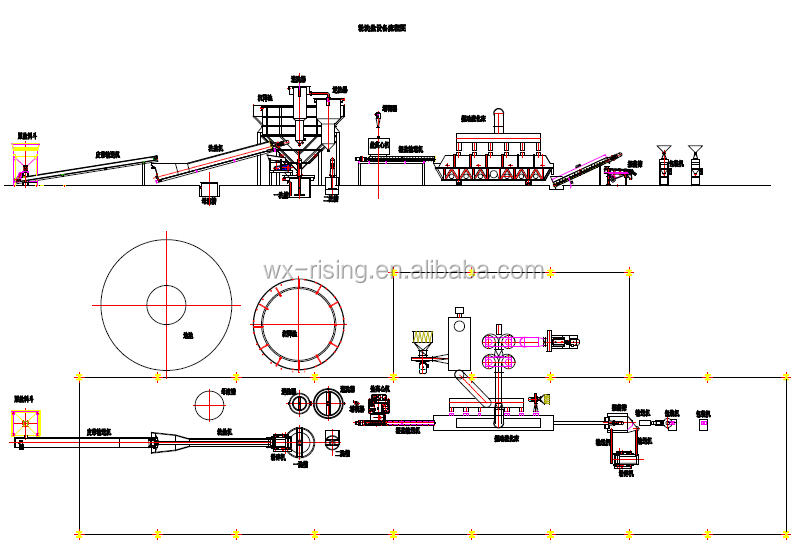

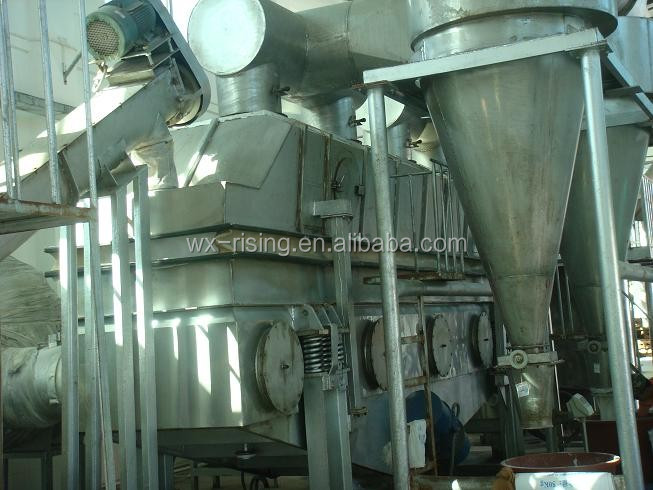

The raw salt is transported to the spiral salt washing machine for the first washing, and then crushed by a roller crusher to obtain salt with a suitable particle size. The purified salt is obtained by washing the salt two or three times with an agitator washer and a countercurrent washer. The next step is to go into a centrifuge to remove most of the water. The salt is then dried through a vibrating fluid drying bed to obtain a finished salt with a water content of 0.4%. During the process of transporting the salt from the centrifuge to the vibrating fluidized bed, there will be an iodizing machine to add iodine to the salt. The last step is to pack the finished salt.
Crushing and cleaning salt equipment series include: stainless steel hoist, mixer, conveyor, crusher, salt washing machine, iodizing machine, centrifuge, dryer, dust collector, packaging machine, etc.
For the capacity of the production line, we can produce according to the requirements of customers. The production capacity is 1-10 tons/hour.
Advantages of our equipment range:
1) High-quality refined salt products have high purity, glossy appearance, good free flow, and stable iodine content.
2) Low loss, the loss of sodium chloride is below 10%.
3) Low energy consumption and low investment.
4) The equipment has a long service life and is easy to operate and maintain.

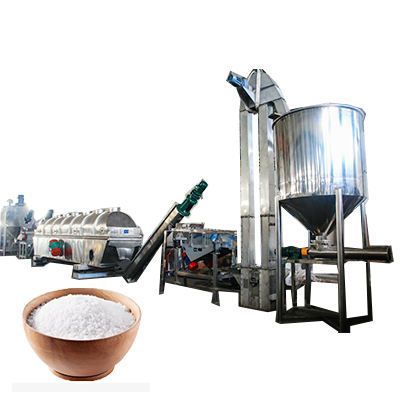

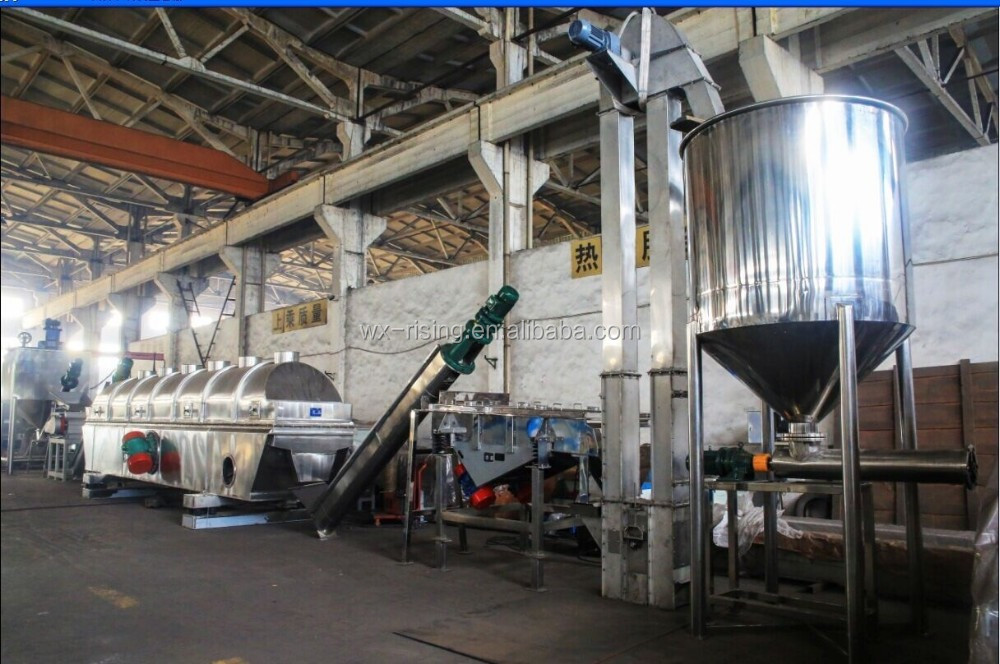

High-quality table salt production line

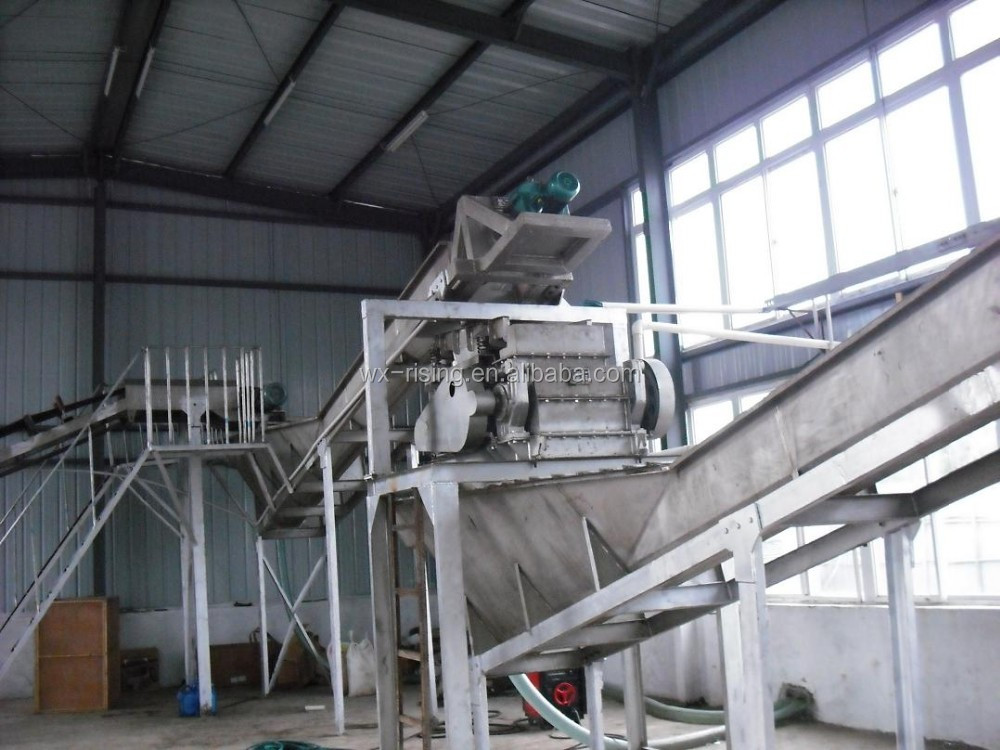

Customized Salt Processing Line Machinery

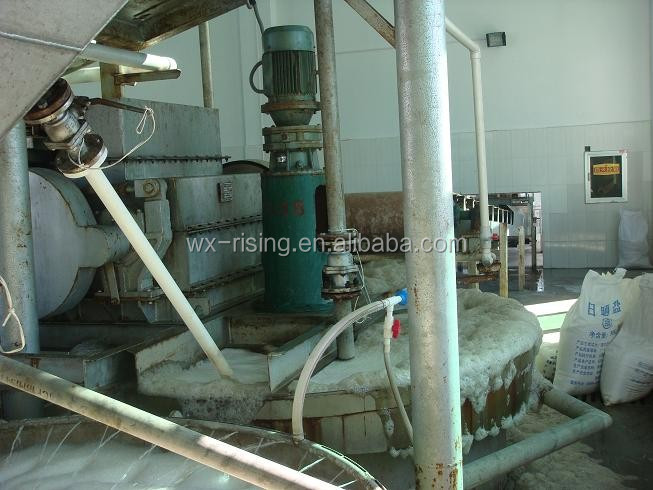

The four washes are as follows:

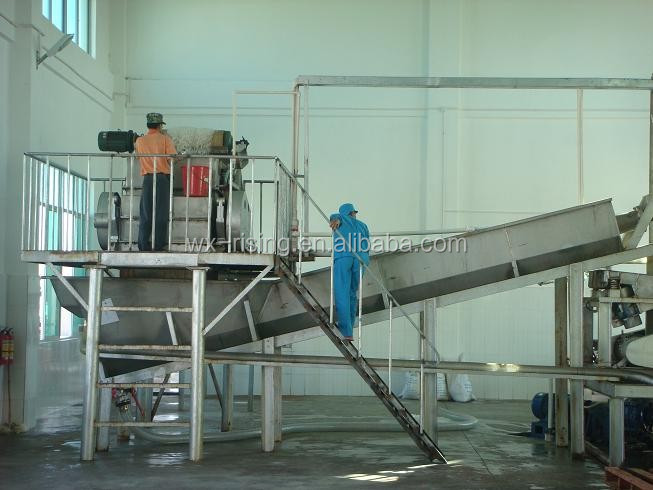

1. Clean the screw first
2. Secondary screw cleaning
3. Vertical stirring washing
4. Countercurrent washing
Three broken as follows:
1. The first break
2. Wet crushing
3. Dry crushing
The combination of wet crushing, dry crushing and different washing methods greatly improves the quality of table salt.
The above operations can be adjusted according to the different requirements of the user for using raw salt of different quality

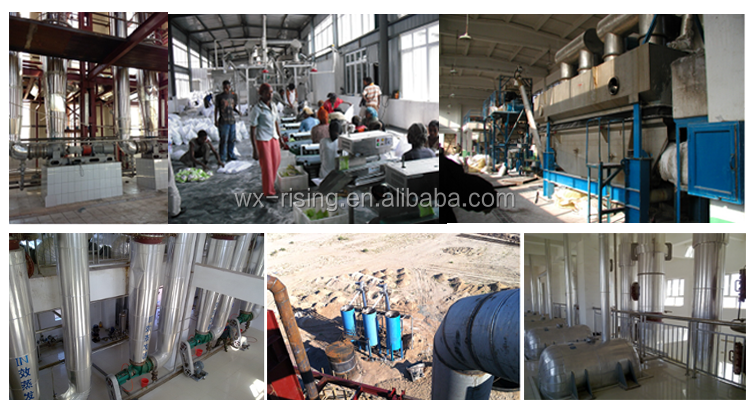

1. Xinjiang Artush 30,000 tons/year vacuum salt production line
2. Xinjiang Aksu 50,000 tons/year vacuum salt production line
3. Uzbekistan 50,000 tons/year table salt and sodium bicarbonate production line
4. 2 tons/hour mechanical salt production line in Africa
5. 5 tons/hour mechanical salt production line in Hainan Province
6. Kazakhstan 2 tons/hour mechanical salt production line
7. Xinjiang Aksu 5t/h Mechanical Salt Production Line
8. Mongolia 3 tons/hour mechanical salt production line
9. Ghana 5t/h mechanical salt production line
Naked + wooden box
Ships within 120 working days
Wuxi Ruisheng Machinery Co., Ltd. is a professional manufacturer of chemical equipment, pharmaceutical equipment, food, dye intermediates and other special equipment. It has various technical, welding, production and quality control technicians, as well as advanced production and testing equipment.
Our products can be divided into: reaction kettle, flaker, dryer, separator, thickener, heat exchanger, fermentation equipment, extraction equipment, fractionation tower, tower packing, etc. We also provide various services such as design, manufacture, installation and commissioning.
