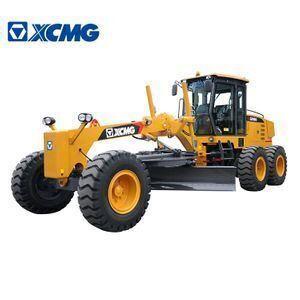

XCMG official CE 193hp Motor Grader GR180 for sale

Supplier: Xuzhou Construction Machinery Group Import & Export Co., Ltd.
Region: Jiangsu, China
Contact: Mr Eric Li
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	10000 Set/Sets per Year;	Engine model:	6CTAA8.3 D6114;
Condition:	New;	Forward Speed(km/h):	38;
Payment Terms:	L/C,T/T;	Place of Origin:	Jiangsu China (Mainland);
Max. gradeability:	20%;	Port:	shanghai;
Warranty:	1 Year;	Packaging Detail:	Container;
Working hydraulic pressure:	16Mpa;	Dimension(LWH):	890026253470mm;
Brand Name:	XCMG;	Certification:	CE ISO;
After-sales Service Provided:	Overseas service center available;	Reverse Speed(km/h):	23;

XCMG official Famous brand Motor Grader GR180 for sale

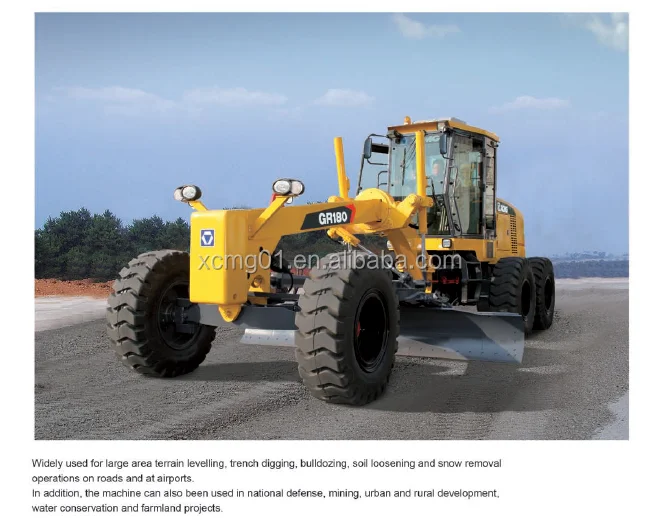

MINI XCMG Motor Grader GR180 with ripper and blade

Product Description

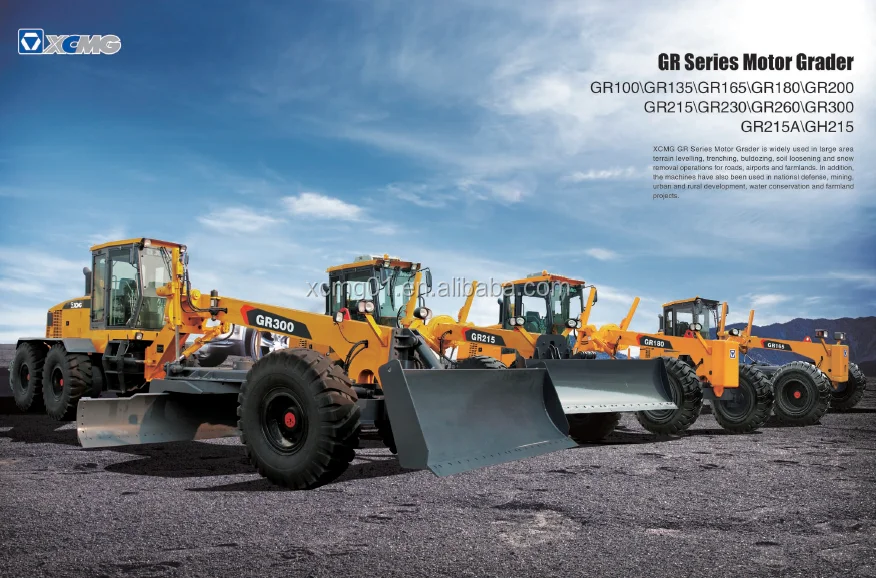

The XCMG GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement..

Performance and characteristic

New appearance design.

The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.

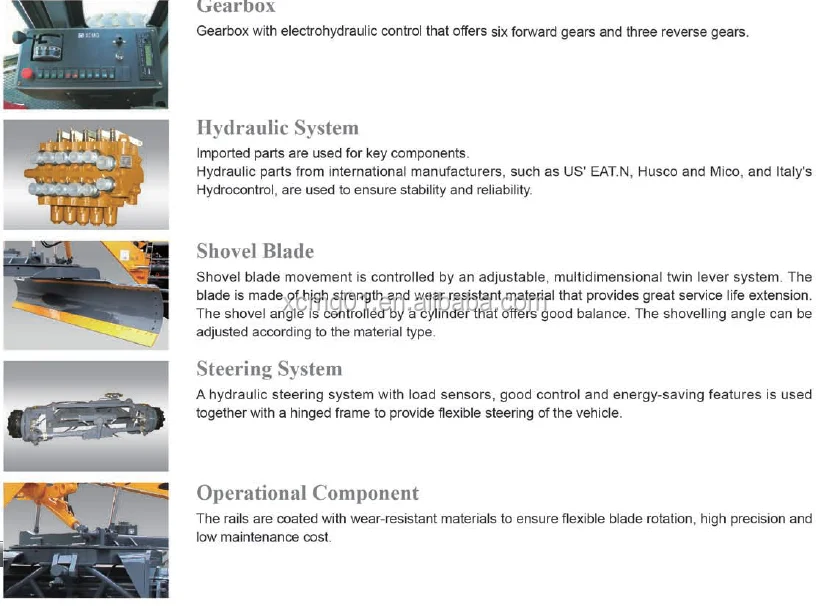

The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.

The international matching hydraulic parts are adopted,with reliable operation.

The motions of the blade are fully hydraulically controlled.

The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.

The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .

The cab is grand and nice,with wide eyeshot and good sealing .

The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .

Basic specification

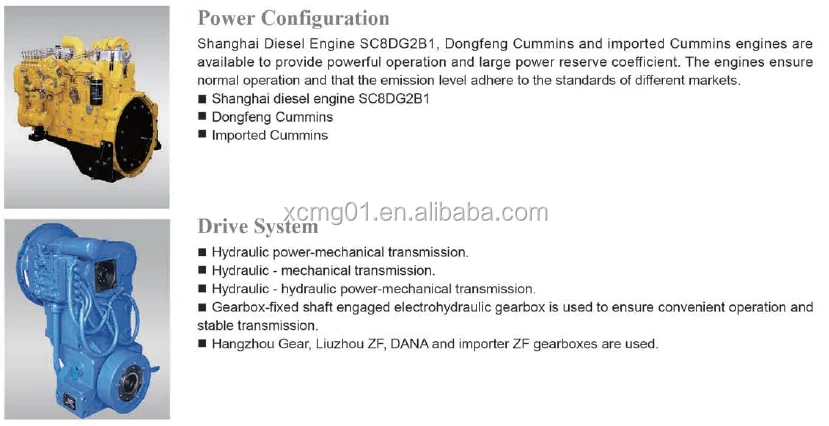

Engine model	CTAA8.3/SC8D190G2B1
Rated power/speed	138kW/2200 140kW/2300rpm
Dimension(LxWxH)	8900×2625×3470mm
Operating weight(Standard)	15400kg
Performance specification
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.75)	84KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
Frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Biade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°—70°
Circle reversing rotation	360°
Moldboard width X height	3965×610mm
