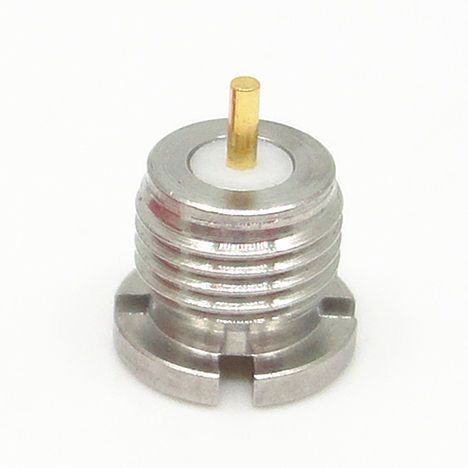

Stainless Steel 50 Ohm Male SMP RF Coaxial Connectors
-
Supplier: Xi'an Elite Electronic Industrial Co., Ltd. -
Region: Shaanxi, China -
Contact: Ms Elite Electronic -
Price: $5.00 / >=100 pieces -
Min. Order: 100 pieces
| product name: | SMP Male Sealed Connector | payment terms: | Letter of Credit, Western Union, T/T, Trade Assurance |
| impedance: | 50 ohms | place of origin; place of origin: | Shaanxi, China |
| Packaging Details: | Straight Stainless Steel Strap 50 Ohm Male SMP RF Crimp Coaxial Connector: * Standard Export Carton * As per customer requirement | insulator: | Teflon |
| plating: | Stainless steel | type: | male |
| Bale: | Bag | Supply capacity: | 30000000 pieces/year |
| brand: | ELT (Elite) | application: | radio frequency |
| Durability: | 500 cycles | model: | SMP-JYD4G |
| Supplier Type: | ODM | describe: | SMP RF Connector |
| Material: | Stainless steel | Card: | ELT |
| gender: | male |
Straight Stainless Steel Strap 50 Ohm Male SMP RF Crimp Coaxial Connector
release agentIt is a miniature push-in RF coaxial connector with the characteristics of small size, light weight, good shock resistance and wide working bandwidth. The operating frequency is up to 30GHz (our high-performance SMP connector products can reach 40GHz), and the plug has three interface forms: full card position, limit card position and smooth (including with brake). A variety of interface styles are available to meet the desired axial or radial motion for blind mating in a wide to wide range of connector couples use. Suitable for installations with high reliability and modular intensive requirements.
|
Electrical Characteristics
|
||||
|
impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated voltage
|
170VRMS*
|
|||
|
Dielectric withstand voltage
|
500VRMS*
|
|||
|
Insulation resistance
|
≥2000MΩ
|
|||
|
|
outer conductor
|
≤2.5mΩ
|
||
|
center conductor
|
≤6mΩ
|
|||
|
standing wave ratio
|
|
DC~18GHz
|
18~26.5GHz
|
26.5~40GHz
|
|
≤1.25
|
≤1.3
|
≤1.5
|
||
OutlineStraight Stainless Steel Microstrip 50 Ohm Male SMP RF Crimp Coaxial Connector(mm):
| model | large | d | describe |
|

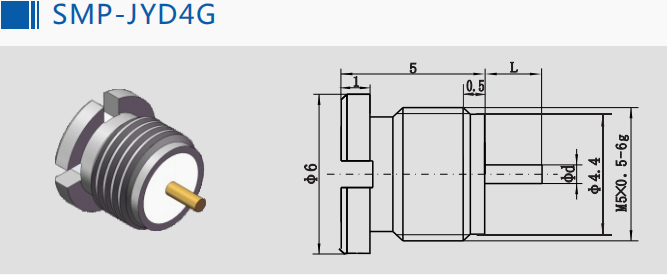

SMP-JYD4G
|
2 | 0.7 | Stainless Steel SMP Male Spacer Limit Positioning RF Connector |
|
SMP-JYD4G-S
|
2 | 0.7 | Stainless Steel SMP Male Bulkhead Smooth Bore RF Connector |
|
SMP-JYD4G-F
|
2 | 0.7 | Stainless Steel SMP Male Bulkhead Full Position RF Connector |
|
SMP-JYD89G-F
|
3 | 0.7 | Stainless Steel SMP Male Bulkhead Full Position RF Connector |
otherSMP RF Connector(mm):
1.
| model | describe |

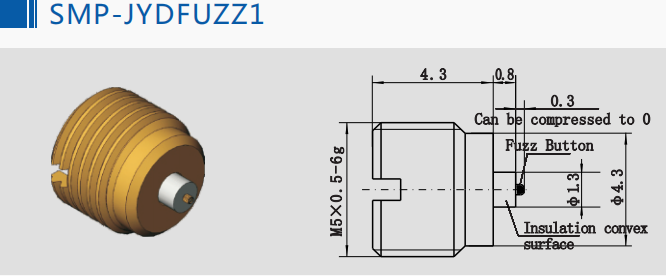

| SMP-JYDFUZZ1 | SMP Male Limiting Pawl Crimp RF Connector |
2.
| model | describe |

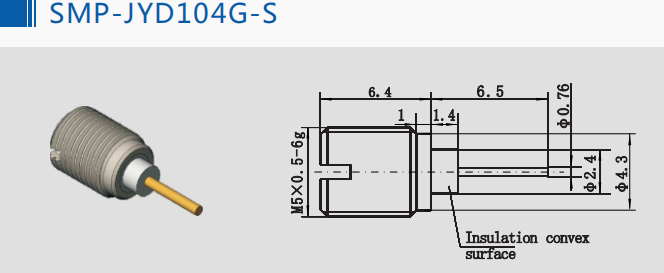

| SMP-JYD104G-S | Stainless Steel SMP Male Smooth Bore Crimp RF Connector |
3.
| model | describe |

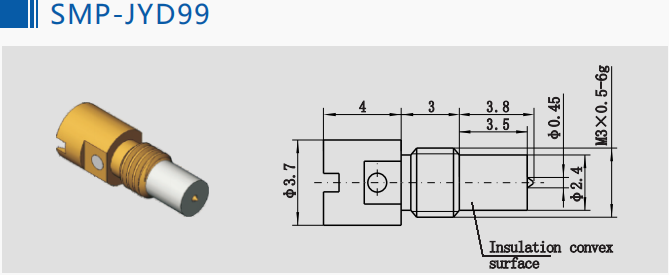

| SMP-JYD99 | SMP Male Crimp Limit Positioning RF Connectors |
Main features:
Matching method: push-in and snap-in
Stop System: Full Stop, Limited Stop and Smooth Bore
Available in board-to-board and wire-to-board configurations
High reliability
high mechanical stability
up to 40GHz
application:
antenna
Broadband
army
5G mobile communication
notes:
We have many typesSMP RF ConnectorFor selection, if you do not find the product you are using, please contact us for a full catalog. Accept custom sizes.
-
