12 24 48 72 96 144 288 core fig 8 gytc8a cable fig 8 fiber optic cable gytc8s overhead cable

Supplier: Jiangsu EC Photoelectric Technology Co., Ltd.
Region: Hunan, China
Contact: Mr toby peng
Price: $125.00 / 1 - 99 kilometers
$112.00 / 100 - 999 kilometers
$105.00 / >=1000 kilometers
Min. Order: 1 kilometer

Click here to contact

Product details

length:	2km 3km 4km 5km per drum	type:	optic fibre cable
jacket:	High-density polyethylene	Minimum order quantity:	1 km
Fiber Type:	G652D/G657A1/G657A2	Number of conductors:	≥ 10
Certification:	CE/ROHS/ISO9001/ANATEL	Packaging Preview:
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	pack:	Plywood drum/custom
Strength members:	steel or fiberglass	Courier Line:	Stranded wire or single wire or FRP
Fiber count:	2~288 cores	place of origin; place of origin:	Guangdong, China
Packaging Details:	Plywood Drums, Ironwood Drums, Custom Packaging	brand:	European Union
Supply capacity:	100,000 km/month	port:	Shanghai, Ningbo, Shenzhen, Guangzhou
standard:	IEC 60794-1 YD/T901-2009	model:	GYTC8S

12 24 48 72 96 144 288 core fig 8 gytc8a cable fig 8 fiber optic cable gytc8s overhead cable

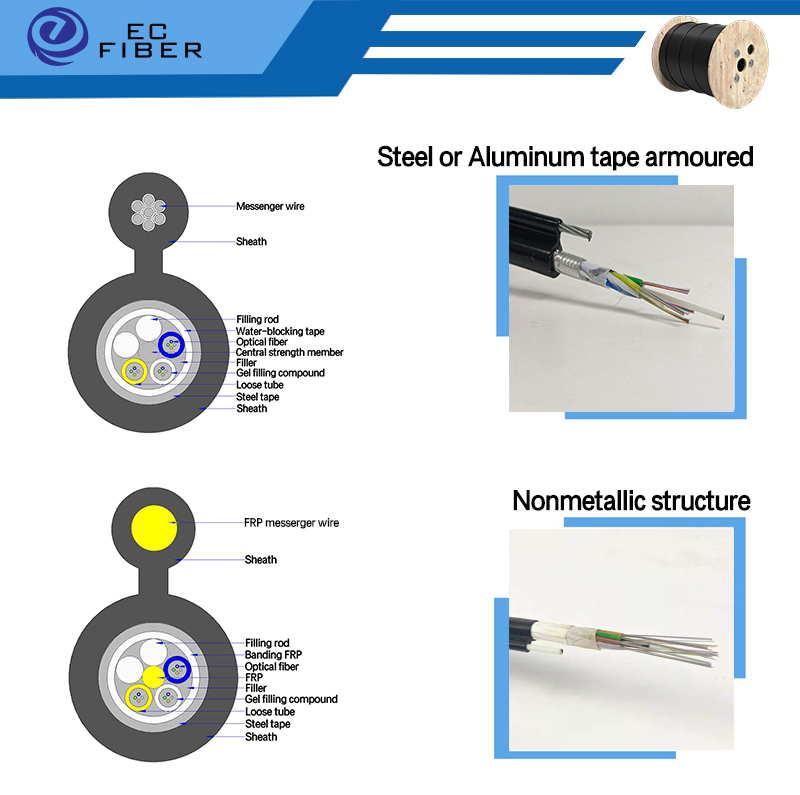

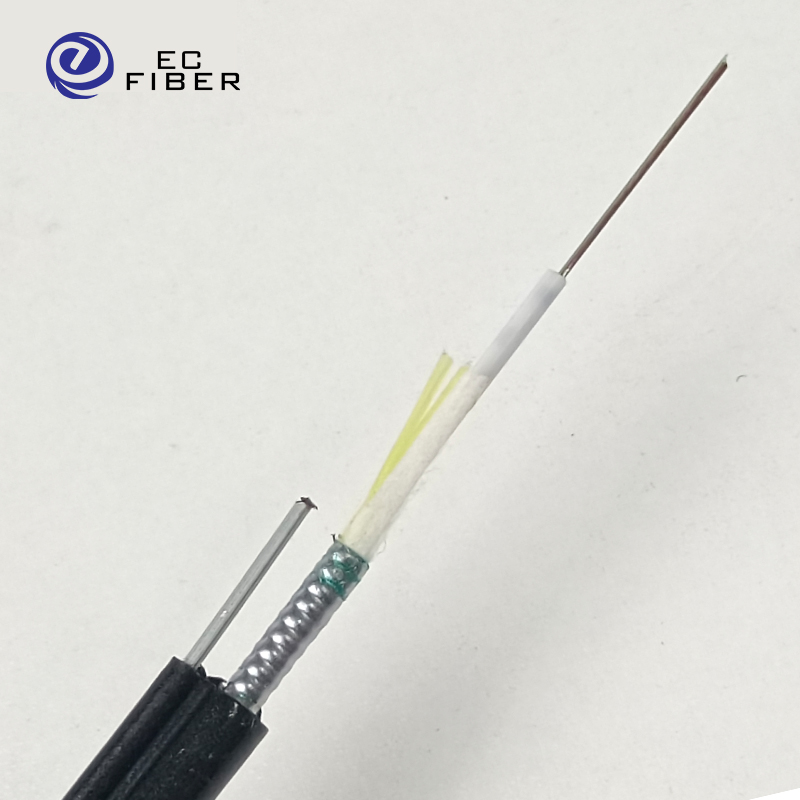

The fiber is 250µm and the loose tube is made of high modulus plastic filled with a waterproof compound. The center of the cable core is a metal reinforcement, and the tube (and filler) is twisted around the reinforcement into a compact circular cable core filled with a waterproofing compound to prevent water ingress. Plastic-coated aluminum or steel tape is wound longitudinally and extruded into a polyethylene jacket to form a cable. With self-supporting sling.

Product Features (GYTC8A)

• Has good mechanical and temperature properties

• Loose tube material has good hydrolysis resistance and high strength

.• Loose tube filled with special gel to protect fiber

• Specially designed compact cable structure to effectively prevent sleeve retraction

• UV resistant PE outer sheath

• Take the following measures to ensure the waterproof performance of the fiber optic cable

-Single steel wire center reinforcement core

-The loose tube is filled with special water blocking material

-Complete cable core filling

- Plastic coated aluminum with moisture barrier

application

• Aerial self-supporting

• Outdoor wiring

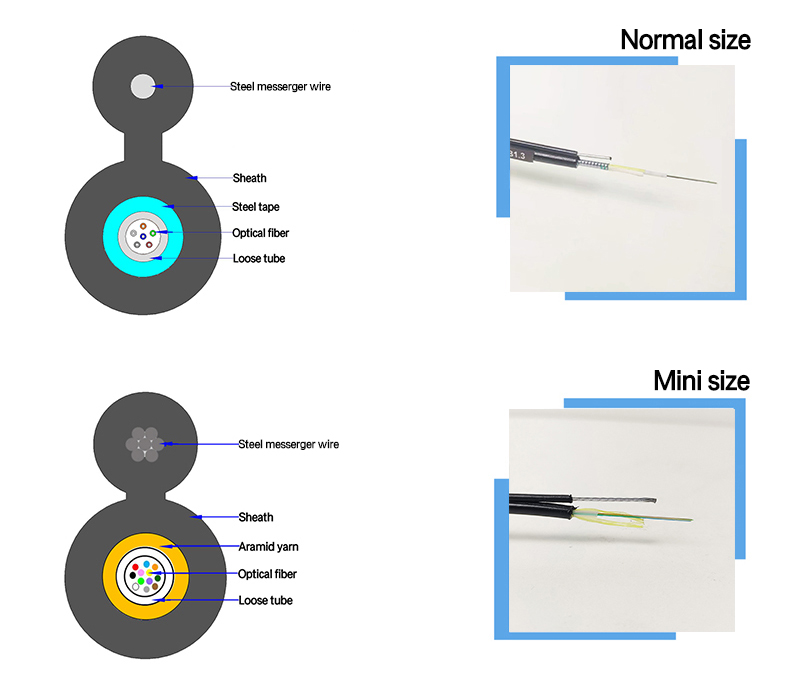

Cable structure parameters(Take GYXTC8S 12 cores as an example)

project		Specification
Fiber count		12
Color Coated Fiber	aspect	250mm±15μm
Color Coated Fiber	color	blue, orange, green, brown, gray, natural color, red, black, yellow, purple, pink, aqua blue
loose tube	aspect	2.0mm±0.1mm
	Material	PBT
	color	nature
strength member	aspect	3.0mm(1.0mm*7)
strength member	Material	Strand
coat	aspect	4.7mm±0.3mm /7.2mm±0.4mm
	Material	physical education
	color	Black

Optical fiber parameters (take G652D as an example, it can be made according to your requirements)

Do not.	project		unit	Specification
Do not.	project		unit	G.652D
1	Mode field diameter	1310nm	microns	9.2±0.4
1	Mode field diameter	1550nm	microns	10.4±0.5
2	Cladding diameter		microns	124.8±0.7
3	Cladding non-circularity		%	≤0.7
4	Core-Clad Concentricity Error		microns	≤0.5
5	Coating diameter		microns	245±5
6	Coating out-of-roundness		%	≤6.0
7	Cladding Concentricity Error		microns	≤12.0
8	Cable cutoff wavelength		Nano	λ_cc≤1260
9	Attenuation (max)	1310nm	dB/km	≤0.4
9	Attenuation (max)	1550nm	dB/km	≤0.3
