1200Mbps PoE Powerline Adapter1200Mbps PoE Powerline Adapter1200M PLC HomePlug AV Powerline Adapter with PoE

Model:LNK-1200MH-POEseries

Overview

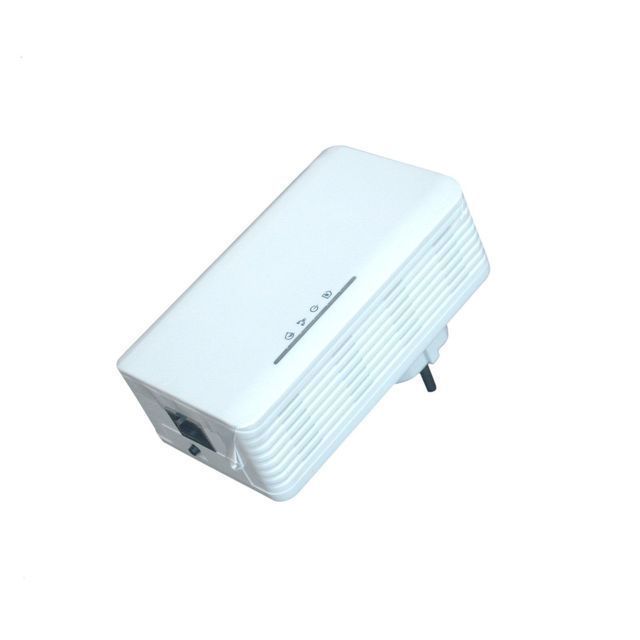

The LNK-1200MH-POE Smart Link HomePlug AV2 1200Mbps Ethernet Adapter adopts the concept of No New Wires data communication, which turns your internal power lines into network infrastructure. It provides Line-Neutral and Line-Ground pairs for SmartLink Plus coupling to AC power. It successfully reduces "dead spots", increases throughput and increases network coverage within the home. Internet and data sharing at up to 1Gbps PHY rate over powerline, built-in PoE Injector provides 55V/48V classified power supply via CAT5E/CAT6.

The LNK-1200MH-POE Smart Link HomePlugAV2 engine is a Qualcomm Atheros QCA7500 chipset with faster processing power, a Fast Ethernet host interface and an enhanced analog front end. The solution is IEEE1901, Homeplug AV and Homeplug AV2 compliant, so it is easily compatible with existing Homeplug AV2 devices and other IEEE1901 PLC (Power Line Communication) equipment vendors as well as IEEE 802.3at/af compliant midspan or endpoint (option) PSEs.

feature

· High-speed powerline adapter with Ethernet interface for fast data transfer over existing household power

1200Mbps high-speed transfer rate can even transfer DVD-quality video

· No new cord required, works on any power outlet up to 500 meters

· Simple plug and easy installation fully compliant with IEEE802.3/802.3u, IEEE802.3at/af HomePlugAV/HomePlugAV2 standards

Provide DC55V power supply for PoE PD of CAT5e/CAT6

Provides 128-bit AES link encryption for powerline networks

· Data rates up to 1200Mbps over powerline networks

Allows users to conveniently connect PCs and other devices through any electrical outlet in the home

IEEE 802.3at/af compliant midspan or endpoint (option) PSE

Technical indicators

order information
