Optical Return Loss: | >45dB | Fiber type: | single mode |
port: | Shanghai, Ningbo | type: | light receiver |
Optical Receiver Wavelength: | 1100~1600nm | Packaging Details: | 100pcs/box |
Flatness: | ±0.5dB | Optical node size: | 45*65*20mm |
Origin: | Zhejiang, China | brand: | Tai Tai |
Name: | optical node | Supply capacity: | 1,000,000 pieces per month |
payment terms: | Western Union, D/P, D/A, T/T, MoneyGram, Paypal | model: | DT-POR-2W/2WWF |
Light node net weight: | 0.052KG | Frequency Range: | 40-1000MHZ |
color: | Metal | Optical connector: | SC/Armored personnel carrier |

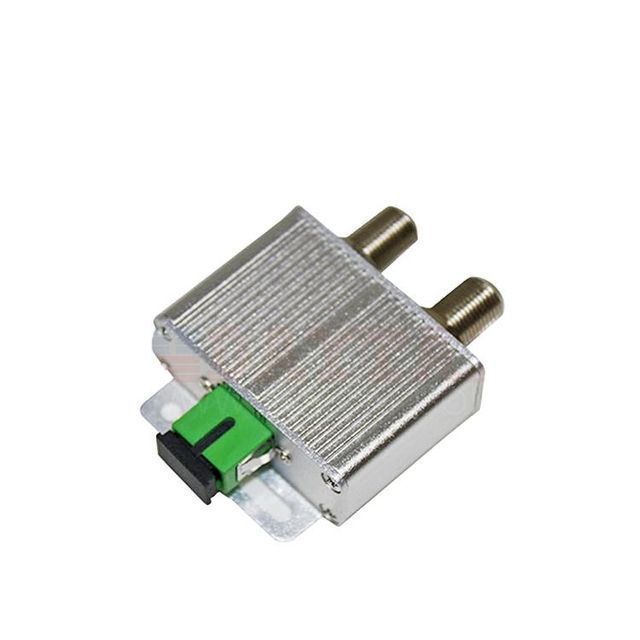

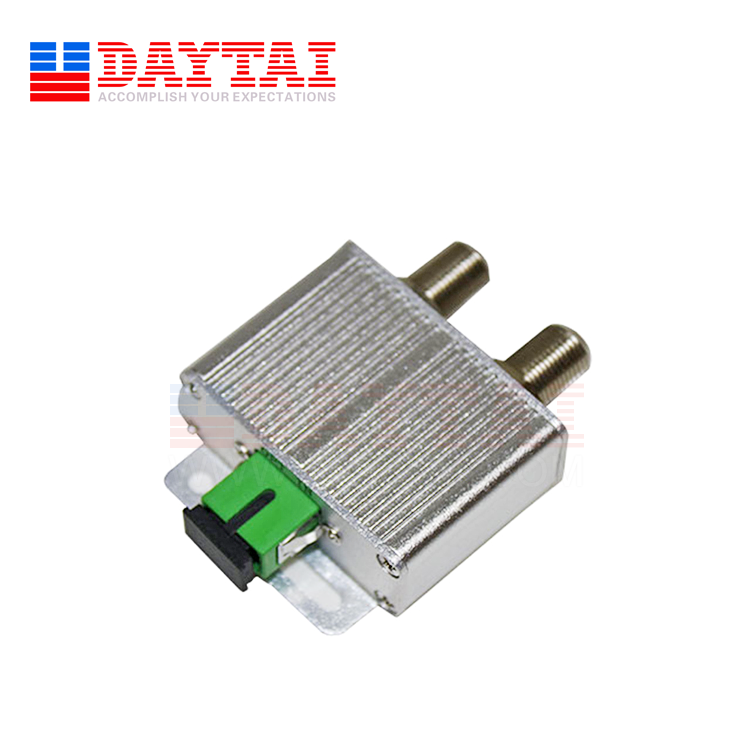

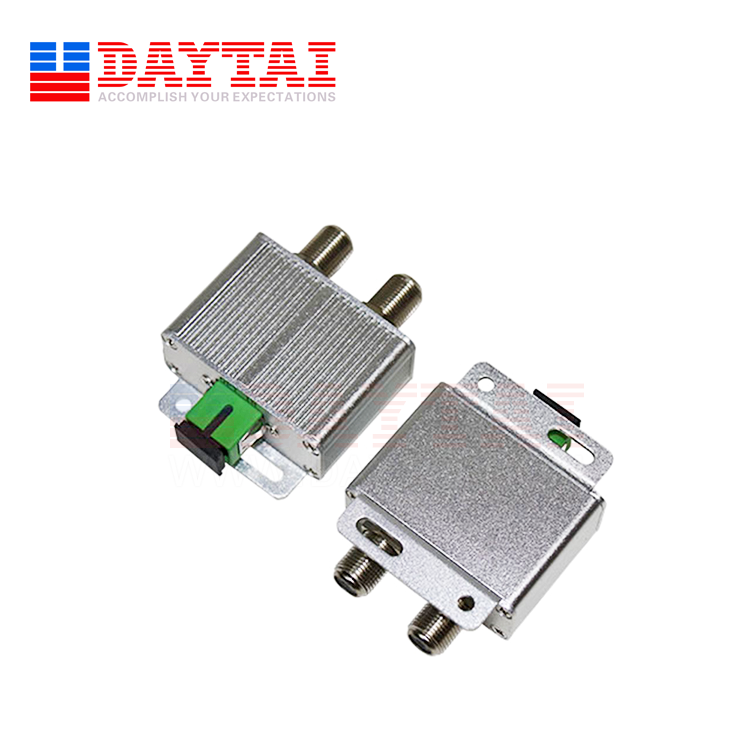

1. Description
Passive2Way FTTH optical converter for digital TV, input optical power: 0~-15dbm, optical return loss: >45db, optical receiver wavelength: 1100~1600 nm, fiber type: single mode, frequency range: 40-1000MHZ , SC/APC to F female connector, size: 45*65*20 mm, net weight: 0.052KG.
2. Features
*No power required
* Optical connector: SC/APC
* Good linearity and flatness
* Smaller size, easier installation
*Specially designed for FTTH (fiber-to-the-home network)
*8 RF outputs equal to 62dBuV @-1dBm
*Frequency range 40-1000MHz for CATV end users
*Aluminum profile shell, excellent heat dissipation performance
3.Specification
thing |
unit |
describe |
Comment |
customer interface |
|||
RF connector |
|
75Ω F-Female" connector |
|
optical connector |
|
SC/Armored personnel carrier |
customizable |
Optical parameters |
|||
Input optical power |
decibel |
0~-15 |
Digital Television |
Optical Return Loss |
D b |
>45 |
|
light receiving wavelength |
Nano |
1100~1600 |
|
fiber type |
|
single mode |
|
RF parameters |
|||
Frequency Range |
megahertz |
40-1000 |
|
Flatness |
D b |
±0.5 |
|
Output Level RF1 |
dBV |
≥66 |
-1dBm input power |
Output Level RF2 |
dBV |
≥66 |
-1dBm input power |
Output Level RF3 |
dBV |
≥66 |
-1dBm input power |
output impedance |
ohm |
75 |
|
carbon/nitrogen |
decibel |
52 |
-1dBm input power |
Other parameters |
|||
Power input voltage |
VDC |
0 |
|
energy consumption |
Well |
not applicable |
|
aspect |
mm |
45*65*20 |
|
net weight |
Kilogram |
0.052 |
|
Q1. Can you provide samples before I place an order?
Yes, like connectors and other products whose unit price is less than $10, we will provide 1~2pcs free samples for testing, and for cables, we can provide 30~50cm samples.
However, customers need to pay for the shipping cost.
Q2. What is your payment terms?
Below USD 200,000, usually we accept 100% T/T. Over USD 200,000, we accept 50% deposit before production, and 50% balance before shipment. The buyer bears the bank transfer charges.
Q3. Do you accept other payment methods?
Besides T/T, we also accept Paypal and Western Union. For small quantity, such as the shipping cost of samples, we suggest to choose these two methods, which are more efficient.
Q4. Are you a manufacturer or trading company?
We are manufacturer in China. We provide OEM service.
