Packaging Details: | 100pcs/box | Flatness: | ≤±0.75dB |
model: | DT-OR-MB | Power input voltage: | DC12V~15V |
Name: | Miniature Optical Receiver | Optical Return Loss: | ≥16dB |
port: | Shanghai, Ningbo | FTTH Converter Dimensions: | 85*80*28mm |
Origin: | Zhejiang, China | Fiber type: | single mode |
Operating temperature: | -0℃~+45℃ | Light wavelength: | 1100~1600nm |
Supply capacity: | 1,000,000 pieces per month | Frequency Range: | 1100~1600MHZ |
Optical connector: | SC/Armored personnel carrier | type: | light receiver |
brand: | Tai Tai | payment terms: | Western Union, D/P, D/A, T/T, MoneyGram, Paypal |
1. Description

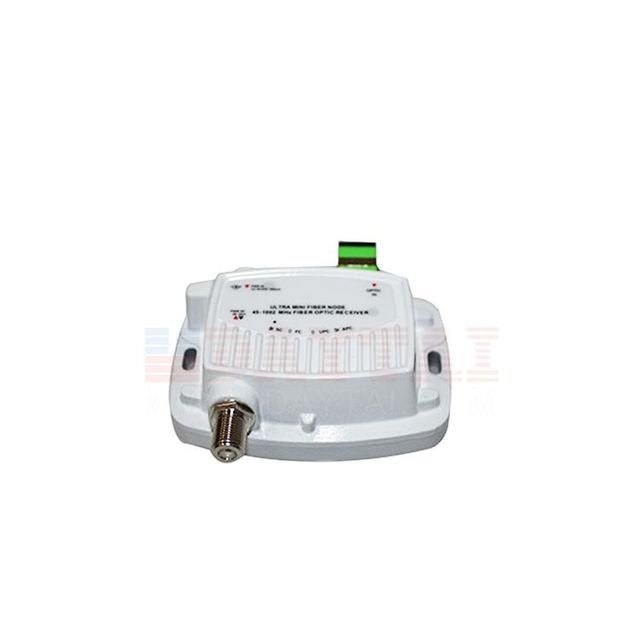

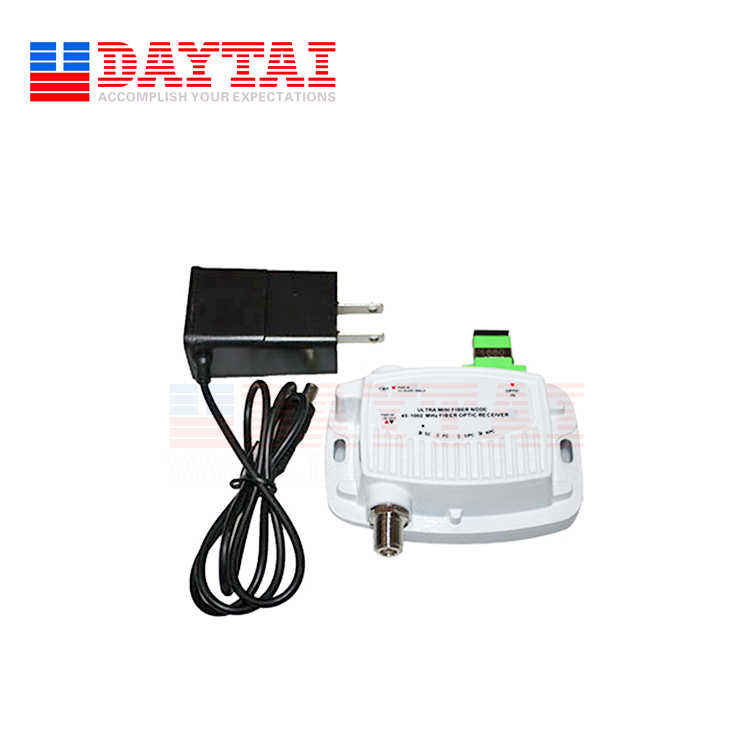

FTTH optical receiver miniature, receiving optical power: -16 ~ +2dBm, optical wavelength: 1100~1600nm, optical return loss: > 45dB, optical connector type: SC/APC, SM, C/N: ≥51dB, C/CTB: ≥-65dB, C/CSO: ≥-60dB, bandwidth: 40~1002MHz, rated output level: ≥90dBμV, output return loss: ≥16, output impedance: 75Ω. Size: 85mm*80mm*28mm. 12~15VDC voltage power supply. Available with or without AGC.
2. Features
* Frequency 40MHz-1002MHz.
* Use SC/APC fiber optic connectors.
* 1310nm and 1550nm optional working window
* GaAs amplifiers with good performance indicators are used.
* Small aluminum die-casting shell, beautiful shape, suitable for home use.
* There is a metric (or imperial) RF output port and a
DC12V~15V independent DC power supply port.
3. Specifications
thing |
unit |
scope |
|
Optical parameters: |
|||
Optical input power |
decibel |
-16~+2 |
|
light wavelength |
Nano |
1100~1600 |
|
The optical fiber connector |
|
SC/Armored personnel carrier |
|
Optical Return Loss |
D b |
≥45 |
|
fiber type |
|
single model |
|
RF parameters: |
|||
bandwidth |
megahertz |
40 -1002 |
|
Flatness |
D b |
≤±0.75 |
|
output return loss |
D b |
≥16 |
|
output impedance |
ohm |
75 |
|
output level |
decibel microvolt |
≥90 |
|
distortion: |
|||
carbon/nitrogen |
D b |
≥51 |
|
civil society organization |
decibel |
≤-60 |
|
CTB |
decibel |
≤-65 |
|
Test conditions: 59-channel PAL-D input, standard optical transmitter input RF is 80dBμV, The optical path is 10Km, optical fiber plus optical fiber variable attenuator, and the input optical power of the test receiver is -1dBm. |
|||
others |
|
||
Voltage power (V) |
DC12V~15V |
||
Power loss (W) |
≤4 |
||
Working temperature (℃) |
-0℃~+45℃ |
||
Storage temperature (℃) |
0℃~+70℃ |
||
Shell size (mm) |
85(L)×80(W)×28(H) |
Q1. Can you provide samples before I place an order?
Yes, like connectors and other products whose unit price is less than $10, we will provide 1~2pcs free samples for testing, and for cables, we can provide 30~50cm samples.
However, customers need to pay for the shipping cost.
Q2. What is your payment terms?
Below USD 200,000, usually we accept 100% T/T. Over USD 200,000, we accept 50% deposit before production, and 50% balance before shipment. The buyer bears the bank transfer charges.
Q3. Do you accept other payment methods?
Besides T/T, we also accept Paypal and Western Union. For small quantity, such as the shipping cost of samples, we suggest to choose these two methods, which are more efficient.
Q4. Are you a manufacturer or trading company?
We are manufacturer in China. We provide OEM service.
