output: | analog sensor | Supply capacity: | 5000 pieces per month |
payment terms: | Western Union, T/T, MoneyGram | Material: | Alloy Steel/Stainless Steel |
theory: | Resistive sensor | model: | XJC-ZL17 |
range of working temperature: | -20-80℃ | application: | Tension measuring roll |
Packaging Preview: | | capacity: | 0-500kg |
describe: | Shaft Tension Sensor | Nonlinear: | 0.2% FS |
usage: | Pressure Sensor | Protection class: | IP65 |
Key words: | web load sensor | type: | Cantilever web tension sensor, load cell |
place of origin; place of origin: | Guangdong, China | Rated output: | 1.0±10%mV/V |
brand: | XJCS sensor | Ultimate load: | 1000%FS |
Shenzhen Xinjingxun Technology Co., Ltd. was established in 2009, located in Ai Town, Dayun, covering an area of 4000m². Headquartered in Shenzhen, with offices in Suzhou and Hong Kong. XJCSENSOR is a national high-tech enterprise with more than 50 patents, integrating independent research and development, production, sales and service. Our products are sold at home and abroad. We have more than 30 R&D teams and technical support teams with years of professional design and development experience in the industry. Obtained international CE and ROHS certification, strictly implemented SGS-ISO-9001, URS14001, 45001 and other management systems, and obtained high-quality supplier qualifications for key customers. XJCSENSOR focuses on sensors and control instruments such as micro pressure, weighing, multi-axis force, torque, intelligence, etc., which are used in automation equipment, precision medicine, new energy lithium batteries, robots, semiconductors, aviation and railways, universities and other fields. XJCSENSOR insists that "customer demand is the starting point of our eternal innovation"; "quality-oriented, customer first, independent innovation, leading the future"; Struggle" and realize "becoming a national brand leading the global sensor industry".

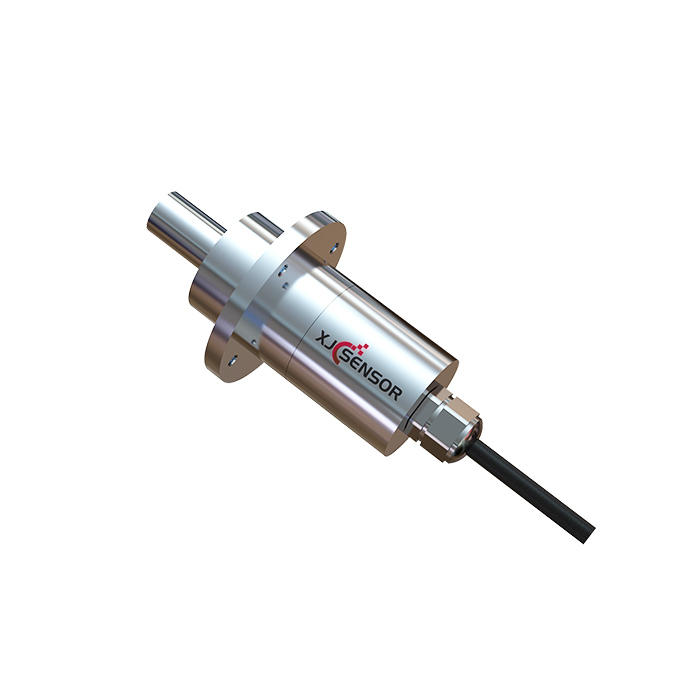

Product Description
feature● Easy to install;
● High measurement accuracy;
● Accurate measurement under low tension conditions;
● Built-in new mechanical 10 times anti-overload protection;
● Small temperature drift, good nonlinearity and repeatability;
● Small size, small space required for installation;
● Standard M12*1 plug

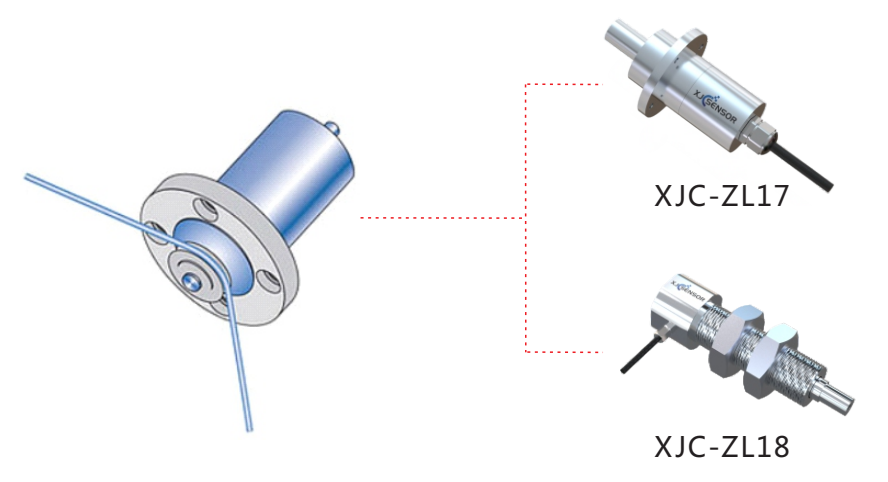

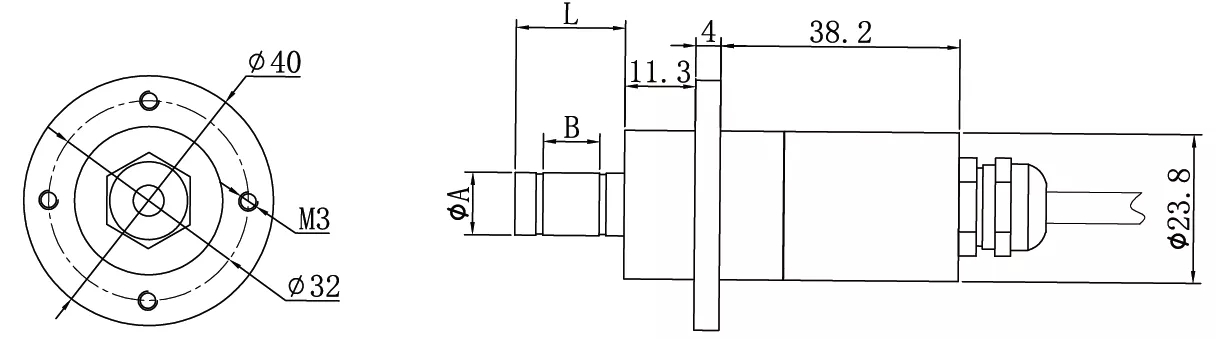

XJC-ZL17 series shaft head tension sensor adopts cantilever installation structure design, which is suitable for measuring wire rope tension in narrow space. This series adopts flange mounting method, which can be installed vertically on the main body of the equipment or on the mounting bracket. Using the principle of resistance strain formula, the signal is accurate and stable. Each sensor is verified for high and low temperatures to ensure performance.

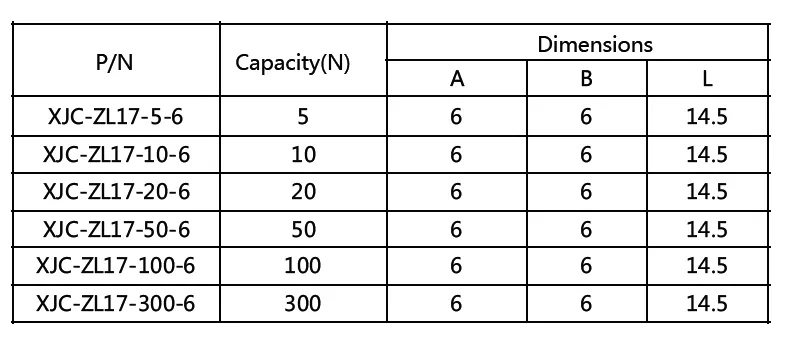

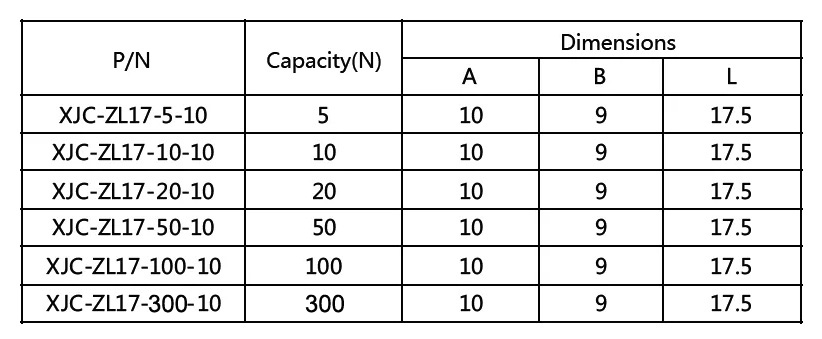

Specification
Rated output | 1.0±10%mV/V | nonlinear | 0.2% FS |
Repeatability | 0.1%FS | zero balance | ±2% of full scale |
range of working temperature | -20~80°C | Compensated temperature range | -10~40°C |
Zero temperature effect | 0.02%FS/°C | insulation | ≥2000MΩ/100VDC |
Recommended excitation voltage | 5~10VDC | limit load | 1000%FS |
Cable size | φ5x5m | Protection class | IP65 |
cable connection | Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White | | |
applicationIt adopts cantilever installation structure design, which is suitable for measuring wire rope tension in a small space. It is designed with a threaded construction with two thin nuts. It is mounted vertically on the device body or on the mounting plate by means of a clamping nut. Using the principle of resistance strain formula, the signal is accurate and stable. The performance is guaranteed by high and low temperature.
