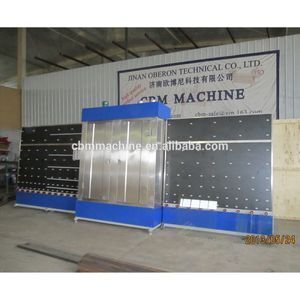

vertical glass washing machine

Product details
Condition:New;Voltage:380v,3-phase,50Hz;
Warranty:1 Year;After-sales Service Provided:Engineers available to service machinery overseas;
Power(W):15KW;Port:QINGDAO;
Weight:1000kg;Payment Terms:T/T;
Production Capacity:1.2-10m/minute;Supply Ability:5 Set/Sets per Month;
Brand Name:CBM;Dimension(L*W*H):6.95m*1.1m*2.85m;
Place of Origin:Shandong China (Mainland);

1.Usage

 This machine is used to wash flat glass sheet which thickness is 3-12mm. It adopts vertical structure, glass sheet is put on the transit rollers, go through entering part, washing part, drying part, then going out part. Operation is easy and it is stable. The glass transiting speed can be stepless adjusted.



2. Main specification and technical parameter:

Voltage/frequency

380V - 3 phase, 50Hz

Total power

15kw

Working speed

1.2-10 m/min

Max processing glass size

height 1600mm * length 2200mm

Min processing glass size

480mm*250mm

Processing glass thickness

3-12mm

Dimension

6950mm*1100mm*2850mm

Weight

1000kg
