Blowing sandals and slippers injection molding machine

Product details
Weight (kg):6000 kgType of machine:hydraulic
Applicable industries:manufacturing plantInjection weight (g):300 grams
Warranty:1 yearVideo external inspection:if
Mechanical test report:ifbrand:honk
Model:HM-188Ejection force (kN):80kN
Power (kW):18.5 kWMarketing Type:Hot Products of 2021
Material:Plastic PVC.PCUPackaging Details:Pack with plastic film.
Plastic Processing:PVCScrew diameter (mm):65 mm
payment terms:letter of credit, wire transferstyle:horizontal
Name:Air blowing sandals and slippers injection molding machineTie rod spacing (height) (mm):10mm
Showroom location:not anyPartner:Africa
Forming area:shoeController:PLC+touch screen
port:Shenzhentype:Fully automatic, injection blow molding
Ejector stroke (mm):210 mmCore components:Motor, PLC
place of origin; place of origin:Guangdong, ChinaTie rod spacing (width) (mm):20mm
Applicable materials:Plastic PVC.PCUCore Components Warranty:1 year
Opening stroke (mm):3 mmInjection rate (g/s):200 g/sec
Main selling point:automaticcolor:blue
Supply capacity:Annual output of 300 sets of air blowing sandals and slippers injection molding machineTheoretical injection volume (cm³):1000 cubic centimeters
application:make slippersHealth status:new
Product Description

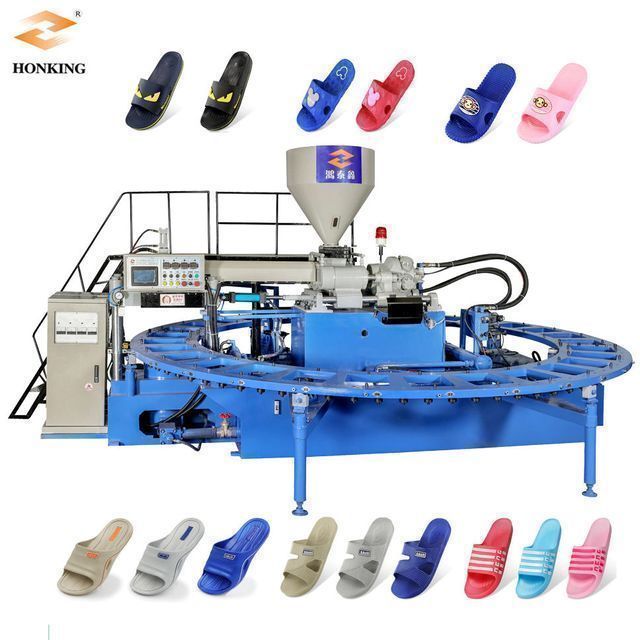

Air blowing sandals and slippers injection molding machine

Applications

1. This machine has a special blowing device, which is suitable for thermoplastic raw materials, such as PVC, PCU, TPR, etc. The product is light, soft and shiny.

2. Environmentally friendly, can be mixed with recycled materials, but the product quality is the same as the finished products injected with new materials.

3. Compact design, small footprint and high yield.

4. The data is calculated by PLC/PC, the energy is precisely controlled, the movement is stable, the speed is fast, and the yield is high.

5. Unique design, can inject one-to-one mold finished products, which greatly increases the output.

SpecificationAir blowing sandals and slippers injection molding machine
Rotary shoe injection machine
machine type
/
HM-188
type of machine
/
Rotary/Fully Automatic
Screw diameter
mm
65
plastic pvc slippers
Maximum injection volume
G
650
material allowed
/
PVC.PCU
clamping force
Ton
120
shoe injection machine
workstation
station
twenty four
Machine size
mm (LxWxH)
4200x3500x1650
machine weight
Kilogram
5500

main feature

1. This machine has a special blowing device, which is suitable for thermoplastic raw materials, such as PVC, PCU, TPR, etc. The product is light, soft and shiny.

2. Environmentally friendly, can be mixed with recycled materials, but the product quality is the same as the finished products injected with new materials.

3. Compact design, small footprint and high yield.

4. The data is calculated by PLC/PC, the energy is precisely controlled, the movement is stable, the speed is fast, and the yield is high.

5. Unique design, can inject one-to-one mold finished products, which greatly increases the output.

Certification
detailed image

Air blowing sandals and slippers injection molding machine

Name: Motor

Card:TJS

The original:Taiwan, China

Air blowing sandals and slippers injection molding machine motor, using Taiwan TJS brand, is a professional manufacturer of motors for more than 16 years, the motor performance is stable and energy saving.


Air blowing sandals and slippers injection molding machine

Name:touch screen
Card:Wellcome
The original:Taiwan, China
The touch screen of the air blowing sandals and slippers injection molding machine adopts the Taiwan Wellcome brand. It is a manufacturer specializing in the production of touch screens for more than 11 years. The motor performance is stable and the quality is high.

Air blowing sandals and slippers injection molding machine

Name:programmable logic controller
Card:Fatek
The original:Taiwan, China
Air blowing sandals and slippers injection molding machine PLC, using Taiwan Wellcome brand, is a manufacturer specializing in PLC production for more than 15 years, with stable motor performance and high quality.

Air blowing sandals and slippers injection molding machine

Name:Electric valve
Card:FE
The original:Taiwan, China
Air blowing sandals and slippers injection molding machine valve, choose Taiwan FE brand. It is a manufacturer specializing in PLC production for more than 9 years, with stable motor performance and high quality.

our service

pre-sale service

* Inquiry and consultation support.

* View our factory.

* Show machine working (if available).

After-sales service

* Training how to install the machine, training how to use the machine.

* Engineers can repair machinery overseas.

Packaging and Delivery
Bale
size
4300(L)*3500(W)*1600(D)
weight
5.2 tons



Packaging Details
The normal packaging is plastic film.
cause the machine to be oversized. We need to divide it into parts.
Like main injection part.disc.frame.hoppers etc.
Bale
size
4300(L)*3500(W)*1600(D)
weight
5.2 tons



Packaging Details
The normal packaging is plastic film.
cause the machine to be oversized. We need to divide it into parts.
Like main injection part.disc.frame.hoppers etc.
