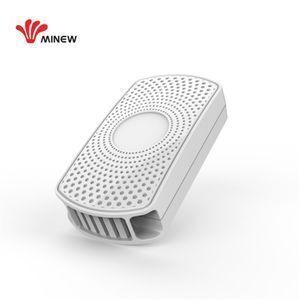

Smart bluetooth temperature and humidity sensor tag for logistics management

Product details
sensor model:SHT31;case material:ABS;
Delivery Detail:0 days after payment;Brand Name:Minew;
Place of Origin:Guangdong China (Mainland);Chipset:nRF52832;
OEM/ODM:yes;Battery lifetime:3-5 years;
Selling Units:Single item;IP Grade:IP66 waterproof;
Product size:70.6*38*17.8mm;Single gross weight:0.1 KG;
Transmission range:100m;operating range:-40℃~70℃;
Model Number:S1;Single package size:7X8X9 cm;
Sensor:Temperature&humidity;Package Type:standard neutral package;

Smart bluetooth wifi temperature sensor tag for temperature and humidity sensor  monitoring

iBeacon Description



S1 Sensor Tag is one type of high precision smart digital temperature and humidity  indicator  (therm.o-Hygrometer).It  can convert  the  environmental  temperature  and  humidity  into correspondent digital signal. By connecting to wireless network, it can upload temperature and humidity data to the server



    Features:



Data Logger

      1. Applications with a need for data logging can use the on-board storage on the sensor, it supports to save the local-data in S1 sensor tag for 30 days. this This feature provides additional security against data loss in case of communication failures.



Calibration



2.Each sensor can be individually calibrated by means of a table look-up. This features ensures the highest flexibility and precision for every single sensor



Configure by Smartphone

3.The parameters of the senors like measurement intervals,advertising intervals and transmission power can be done from Smartphones or Tablets which support Bluetooth Smart (iOS5, Android 4.3). This allows for flexible and easy reconfiguration of any sensor in the field.



Connect to the control system

4.Our G1 Gateway allows for connection of a large number of sensors to a higher layer control or measurement system. The gateway is communicating wirelessly with the sensors on one hand, on the other it connects through Wifi to the control system. The sensor data includes directly the calibrated temperature measuement values with associated timestamp - thus eliminiating the need for any postprocessing or correction in the control system.







1.There are 2 application for our S1 Sensor Tag



Application1:

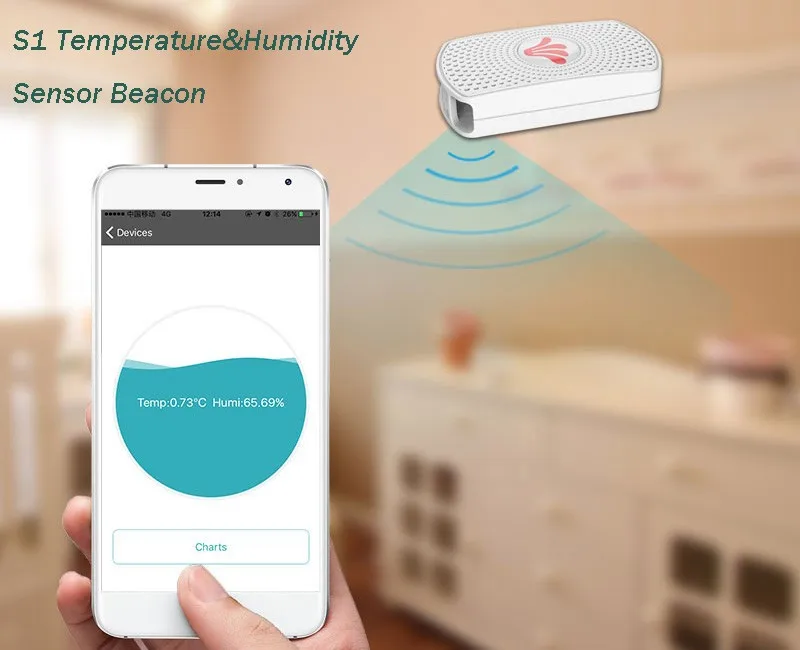

Our S1 Sensor tag is alway broadcasting the temperature and humidity data , you can check the real-time temperature and humidity data in our app(BeaconSET).



Application 2:



The S1 Beacon sensor tag connect with our ble&wifi G1 gateway , the gateway will collect all the advertising data of S1 and report the data to the Cloud sever, so you can have the access to monitor the data at anytime and anywhere.  We also have our own cloud platform www.beaconyun.com





1.PHYSICAL PROPERTY



Model

S1

Waterproof Level

IP66

Case material

ABS

Case color

White

Product size

70.6*38*17.8mm

Unit weight

43g

Battery type

2*FR03 Li-Fe battery

Voltage

3V

Average power consumption

35uA

Transmission Range

Max 100m in open space



Battery Capacity



1250mAH

Lifetime

Over 3 years

Working temperature

-40℃~+70℃

Storage temperature

10℃~+25℃,≤65%RH







 2.Technical Specification:

+
ItemvalueError Range
Temperature MeasureRange

-40℃~70℃

depends on battery working environment

Measure

-20℃~65℃

±0.5℃

Accuracy

≤ -20℃ or ≥65℃

±1℃-±2℃

Resolutions

0.05℃


Humidity MeasureRange

0%RH~100%RH


Measure

0%RH~90%RH

±2.5%RH

Accuracy

≥90%RH

±3.5%RH

Resolutions

0.05%RH



Sampling Period



Once per second







3.APPLICATION

  • Environmental control
  • Food supply chain
  • Logistics
  • Agriculture Technology

4. Customers service



- Print your logo on the top of MiniBeacon;

- Programmer your firmware into iBeacon Module;

 - Pre-configure the value of parameter before the shippment;

- PCB can be customized if needed;

- Package can be customized if required;

- Prototyping the casing and mold tool design and injection service.





5. Feedbacks From Clients.





6. Delivery and Package



 Delivery:  All the samples can supply from stock. we usually ship the samples by DHL, Customers can received the samples within 4-5 days after pay it. For bulk order, the delivery time is within 2-3 weeks.



Package information.



 7. Related Certification:

APPLE iBeacon MFi certification, BQB/FCC/CE certification Approved by the Ministry of industry and Information Technology of P.R China to ensure the use of legal and safe places of public places.

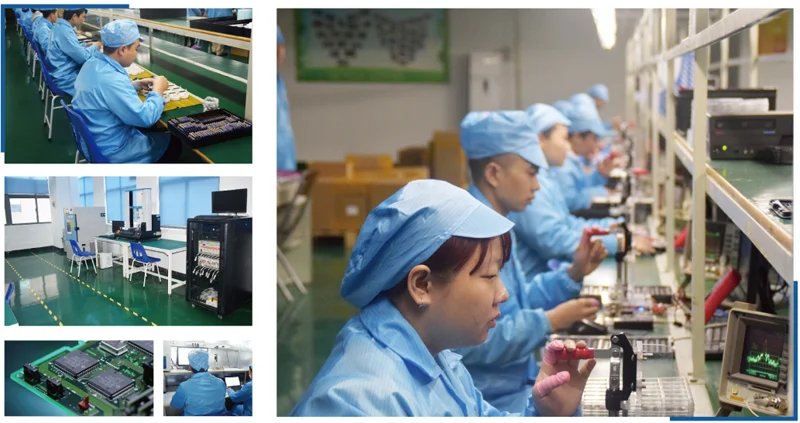

 8. Company introduction:

We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.

We only focus on designed and manufactured many different high quality and low cost ble Beacons hardware and one-stop services.

   1. Schematic design;

   2. Mechanical design;

   3. PCB layout;

   4. Firmware design;

   5. Production and assembly.

   6. iOS&Android application and cloud platform development

 Warmly welcome the OEM and ODM projects.

 9. Overseas Exhibition each year

10. FAQ



1. Do you provide the technical support to the developers?

Re: SURE. The following technical data and documents will be provided.

       1. SDK    2. API    3. Demo APP    4. Configuration APP  5. Instructions



2. Can we brand your product with our company LOGO?

Re:  Yes, , We are a manufacturer located in Shenzhen offering the OEM/ODM service.



3. How can we get the samples to test?

Re: You can confirm the order on Alibaba or contact us to pay it via Paypal , All of the samples can supply from stock. you can receive the samples within 3-4 days after you pay it.



4. What's the warranty of the product?

Re: we supply 1 year warranty from the shipping date



5. Could I ask the technical questions online for fast conversation?

Re: You can add the Skype: sales05.minew
