Belt top conveyor chain for powder coating line

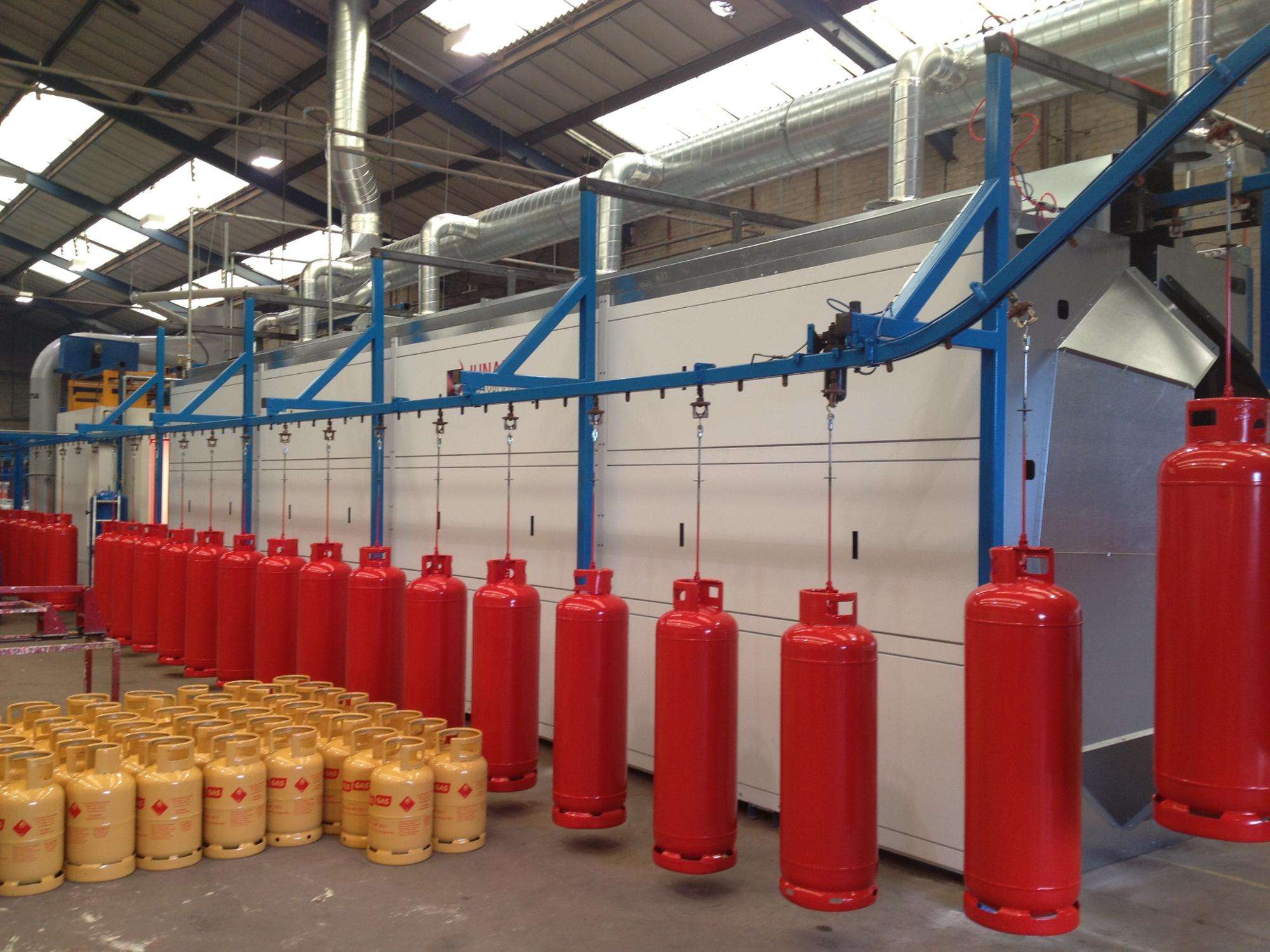

Monorail overhead conveyors for powder coating lines

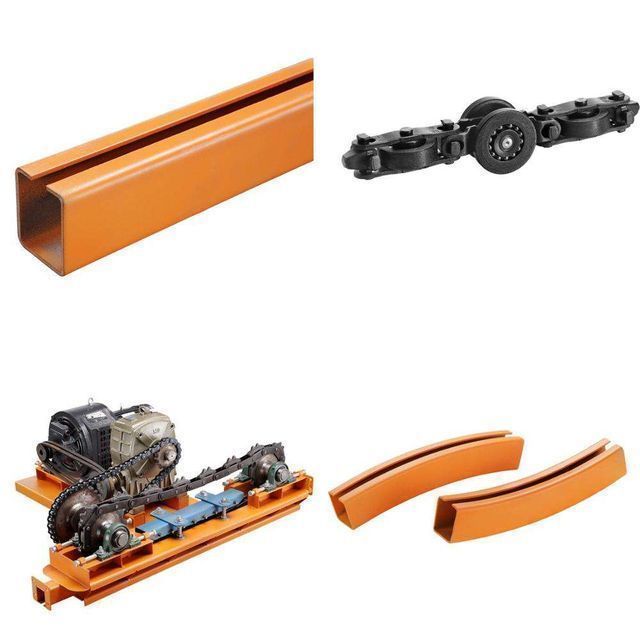

No matter your single point weight is from 10kg to 100kg, Chongqing Haodong Technology Co., Ltd. can always recommend a suitable overhead conveyor system for you. Typically, an overhead conveyor system includes the following parts:

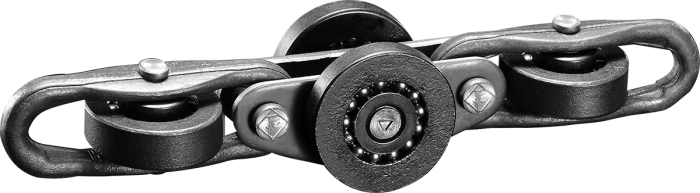

1. Overhead conveyor chain.

(We can supply suitable overhead conveyor chains according to your single point load weight requirements).

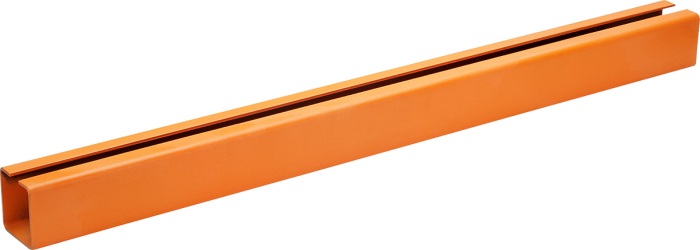

2. Linear track.

(The size of the linear track is subject to the model of the conveyor chain)

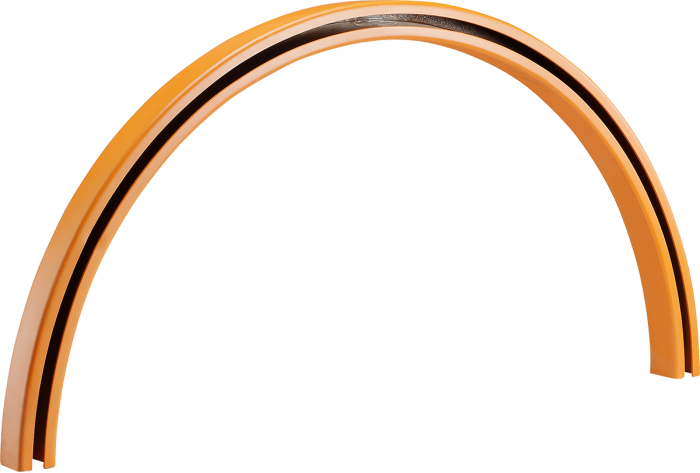

3. Conner Corner.

(corner bends according to diameter requirements)

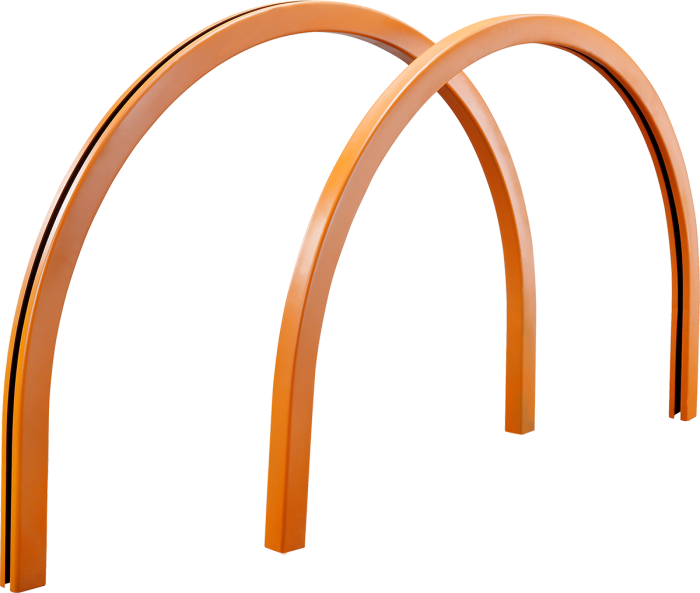

4. Up and down track.

(Based on your radians.)

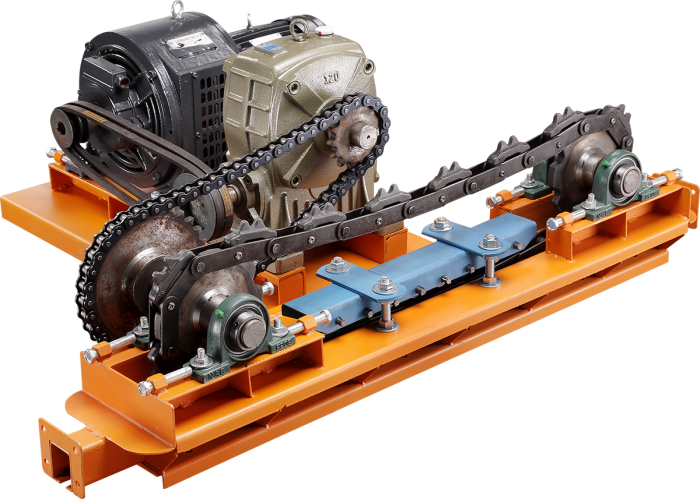

5. Drive unit.

(We can provide suitable drive unit power according to the total length of your conveyor system)

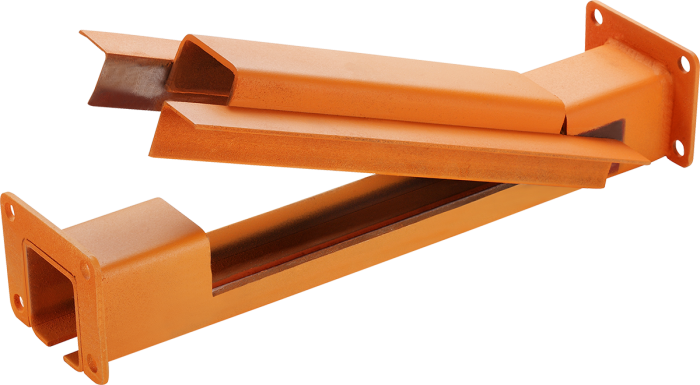

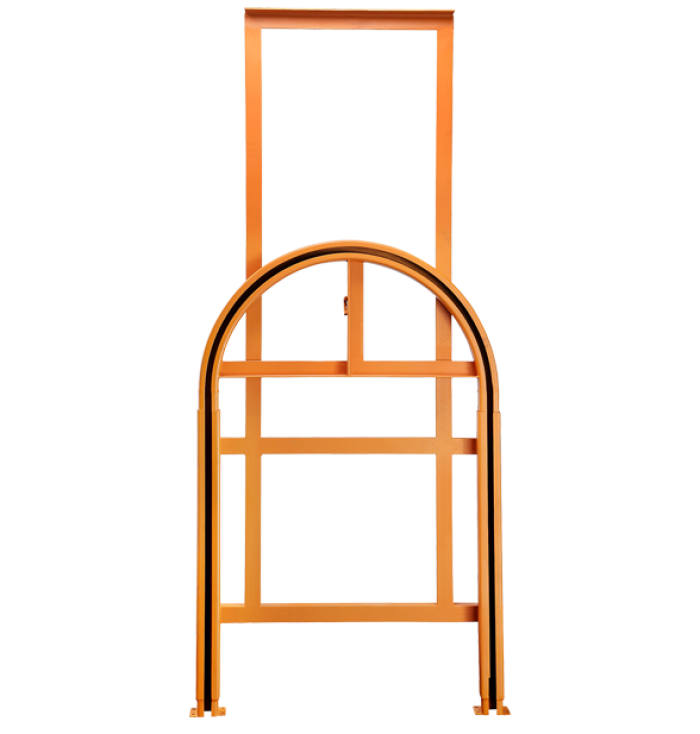

6. Coiling unit.

(The function of the take-up unit to pull the conveyor chain also requires your diameter requirements, which must be the same as the elbow track)

7. Check the track.

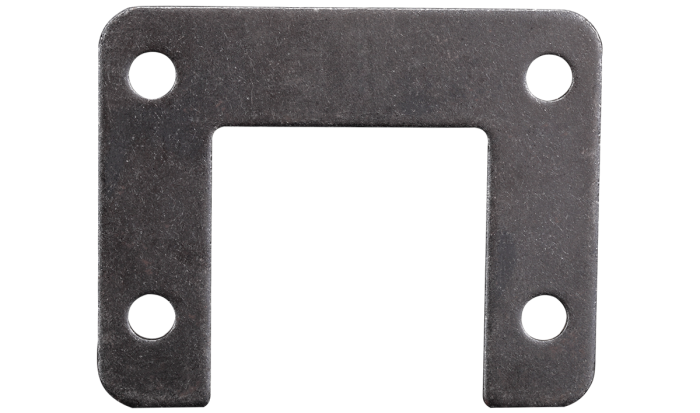

8. Flange

(connecting track)

9. Operator

(Carrier type is based on chain type and how you load your product)

Typical applications for monorail closed track conveyors include:
line drawing
"Real-time" storage of products
work in progress
assembly line
Empty cartons are delivered to pickers
Plastic suitcases delivered to pickers
Removal of corrugated waste from the picking area
Garment Handling System
