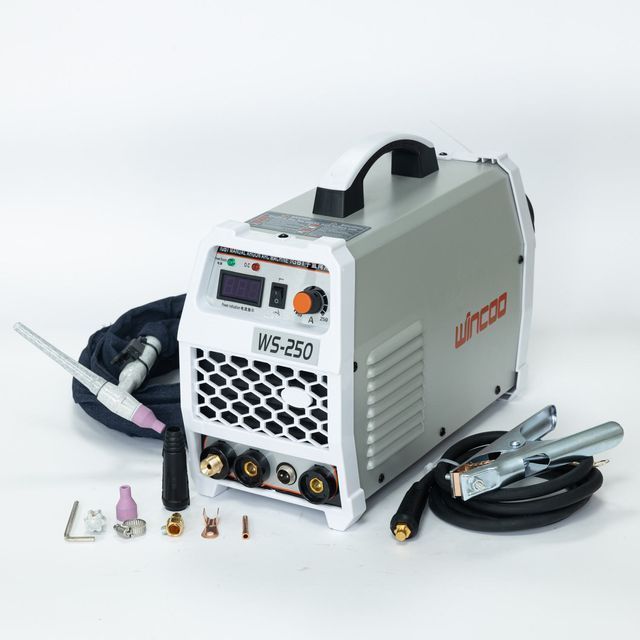

Portable inverter welding machine TIG250 argon arc welding machine mig tig mma

Supplier: Wincoo Engineering Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jacky Nie
Price: $120.00 /set
Min. Order: 1 set

Click here to contact

Product details

Minimum material thickness:	1mm	Supply capacity:	100000 pieces/month
Dimensions (LxWxH):	452733cm	model:	WS250
Maximum wire diameter:	2.6mm	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Custom Support:	OEM, ODM, OBM	port:	Shanghai
brand:	WINCOO	stage:	220/380V
place of origin; place of origin:	Jiangsu, China	Warranty:	1 year
weight:	9	Packaging Preview:
Maximum material thickness:	1/2 inch	Function:	TIG welding and mixed martial arts
Packaging Details:	carton

Yongke Engineering Co., Ltd.

We are engaged in supplying inverter welding machine such as MMA/SAMW welding machine, ARC welding machine, TIG/MMA 2 in 1 welding machine, MMA, MIG, MAG, TIG 4 in 1 machine, inverter plasma cutting machine welding machine with built-in air compression machine plasma cutting machine. Most of our products have obtained CCC, CE, EMC, SAA and UL, RoHS certificates.

The electric welding machine uses the instantaneous short circuit of the positive and negative electrodes in the high-temperature arc to melt the electrodes on the solder and the material to be welded, so that the objects are combined together. Our products are inverter DC welding machines, which are of good quality and not easily damaged, unlike other fragile products on the market that require frequent maintenance.

Model	TIG-250
Input voltage (V)	AC380+15%
Frequency (Hz)	50/60
Rated power (KVA)	5
No-load voltage (V)	54
Output current (A)	5-220
Rated output voltage (V)	18.8
Thrust range (A)	10-220
Load Sustainability (%)	60
No-load loss (W)	40
efficiency(%)	85
power factor	0.93
Insulation class	F
IP level	twenty one

feature

1. TIG inverter stainless steel welding machine is in direct current (DC).

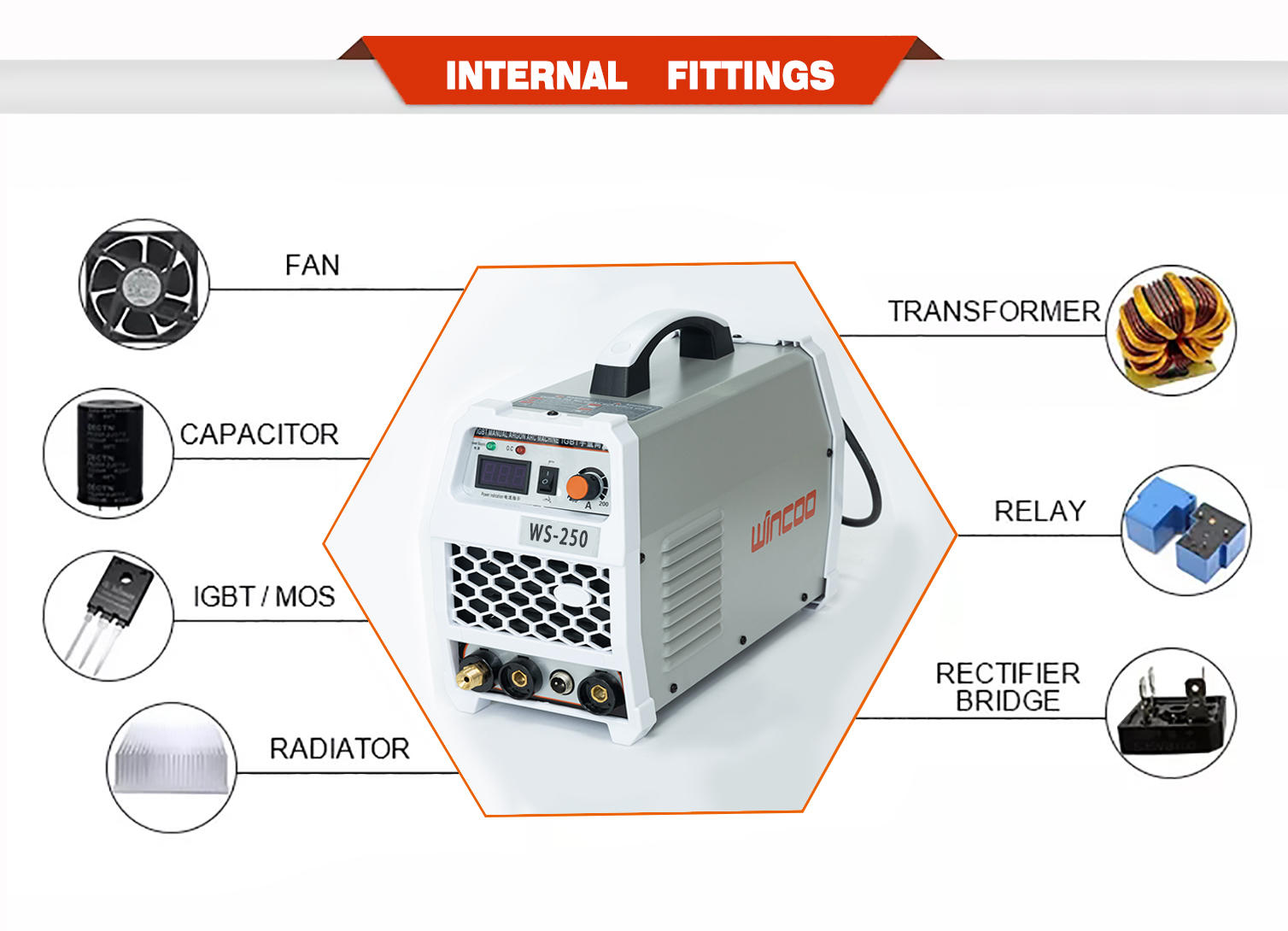

2. Adopt IGBT&Mosfect technology design, which greatly improves the reliability of the whole machine. * High working cycle, greatly improving the efficiency of the welding machine and saving energy.

3. Easy arc starting, small splash, stable current and good formability. *Widely used for interior decoration, high workplace work.

All models of this model

Model	TIG-160	TIG-180	TIG-200
Input voltage (V)	230V	230V	230V
No-load voltage (V)	65V	65V	65V
Current range (A)	10-160A	10-180A	10-200A
Rated duty cycle	60%	60%	60%
Input capacity (kw)	4.4	5.3	6.5
Insulation class	H	H	H
Applied electrode(mm)	1.6-3.2	2.0-4.0	2.0-4.0
Maximum input current	13	16	16
case protection	IP21S	IP21S	IP21S
Frequency (Hz)	50/60	50/60	50/60
Arc-Staring Cos	0.9	0.9	0.9
efficiency	80	80	80
Weight (kg)	11.5	12	12.5
Packaging (cm)	472529	472529	472529

Model	TIG-300	TIG-350	TIG-250	TIG-315	TIG-400
Input voltage (V)	AC220+15%	AC220+15%	AC380+15%	AC380+15%	AC380+15%
Frequency (Hz)	50/60	50/60	50/60	50/60	50/60
Rated power (KVA)	4	4.5	5	8.3	13
No-load voltage (V)	57	57	54	54	64
Output current (A)	10-155	10-170	5-220	10-300	10-400
Rated output voltage (V)	16.4	16.8	18.8	twenty two	26
Thrust range (A)	--	--	10-220	10-270	20-360
Load Sustainability (%)	60	60	60	60	60
No-load loss (W)	40	40	40	40	40
efficiency(%)	85	85	85	85	85
power factor	0.93	0.93	0.93	0.93	0.93
Insulation class	F	F	F	F	F
IP level	twenty one	twenty one	twenty one	twenty one	twenty one

Company Manufacturing Center

showroom

Soldering Stations

test

assemble

load test

Loading test machine

Aging test

High and low temperature tester and multifunctional test center

finished product

Package

Our company is located in Nanjing, the ancient capital of the Six Dynasties. Now it is a famous cultural tourism city in China. It only takes about 1 hour by high-speed rail from Shanghai.

We have three joint-stock joint factories in Taizhou and Linyi. We provide different kinds of inverter welding machines, such as MMA/ARC welding machines, MIG/MAG welding machines, TIG welding machines, plasma cutting power sources certified by CSA, CCC, CE, etc.

1. These welders can be from 100 amps to 1000 amps, from home DIY use to industrial use, from single-function welding process to multi-function welding process, reliable quality and good price. Our ISO9001 certified manufacturing facility provides consistent quality to every customer, every order.

2. In terms of production capacity, taking 10,000 welding machines as an example, the production can be completed in 3 days.

3. We accept small orders, we cherish and appreciate any inquiry from you. Each machine will be tested at least 3 times before leaving the factory to ensure the quality.

4. We can provide 12-month warranty for the whole machine, 18-month warranty for the motherboard, lifetime technical support and after-sales service.

5. We can provide you with online demonstration performance before purchasing, online video display during production and packaging, and after-sales online technical support.

WINCOO's culture to customers is:To provide customers with better quality and reliable welders is the unremitting goal of WINCOO. Winning by cooperation is our business philosophy, proactive response is our attitude, consideration for customers is our morality and responsibility, supporting customer success is our purpose, and mutual benefit is our expectation of win-win cooperation. For Wincoo himself: integrity, generosity, wisdom and tolerance are our characters. Vision and pragmatism are our qualities. Loyalty, responsibility, ambition are our basic requirements. The secret to growth is exceeding expectations. Success is determined by these three factors: people, people, people. Without morality, everything is negated. Integrity is the essence. Communicate openly and honestly. Unite us to win. Enthusiastic start, half done. Growth is the process of overcoming adversity. Be curious. Thankful. Execution without any excuse.

We sincerely look forward to your inquiries, visits and inspections, and sincerely hope to be your long-term and reliable partner in China.

1. Who are we?

We have 3 joint venture factories in China with a total area of about 10,000 square meters and more than 150 employees. We offer MMA/ARC welder, MIG/MAG welder, TIG welder, air compressor built-in plasma cutting power source.

2. What do we produce?

We mainly manufacture MMA welders from 100 amps to 500 amps (DIY or industrial use), inverter welders from 150 amps to 300 amps, TIG welders from 150 amps to 300 amps, (DC or AC/DC), from 120 amps to 500 amps MIG/MAG welders, (gas or no gas), air plasma cutters from 40Amp to 120Amp, (Pilot or HF ignition).

3. How do we guarantee the quality?

We can provide 12-month warranty for the whole machine, 18-month warranty for the motherboard, f. At the same time, we provide lifetime online technical support for operation guidance and troubleshooting.

4. How to place an order? I haven't done business with you before, how can I trust your company?

We can provide you with online demonstrations before purchasing to show performance, online video demonstrations during production and packaging, and after-sales online technical support. You can place an order online through Alibaba and your money is safe.

5. How to check?

Welcome your third party or SGS or your friend to check before delivery.

5. Why choose us?

*OEM/ODM available.

*Small order can be accepted, even 1 piece;

* Fast delivery within 15 days;

*12-month machine warranty, 18-month motherboard warranty, lifetime technical support and after-sales service;

* Strong willingness to develop local agents or distributors of their own brands;

*Provide online demonstration before placing an order, online video during production and packaging, and after-sales video support;

* Offers free cover design service (your own brand).
