12V Fuse Relay Switch Harness Set - Blade Fuse ATO ATC 30A 5 Pin SPST 14 AWG Heavy Wire Automotive Electrical Relay

Supplier: Dongguan Andu Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Kathie Xie
Price: $1.50 / 50 - 999 pieces
$1.38 / >=1000 pieces
Min. Order: 50 pieces

Click here to contact

Product details

product name:	Automatic relay 12V/24V30A	model:	12v24v 40A
Warranty:	12 months	place of origin; place of origin:	Guangdong, China
brand:	with you	Rated current:	40A
Original serial number:	1	Voltage:	12V 24V
payment terms:	wire transfer	car brand:	all

Product Description

product name

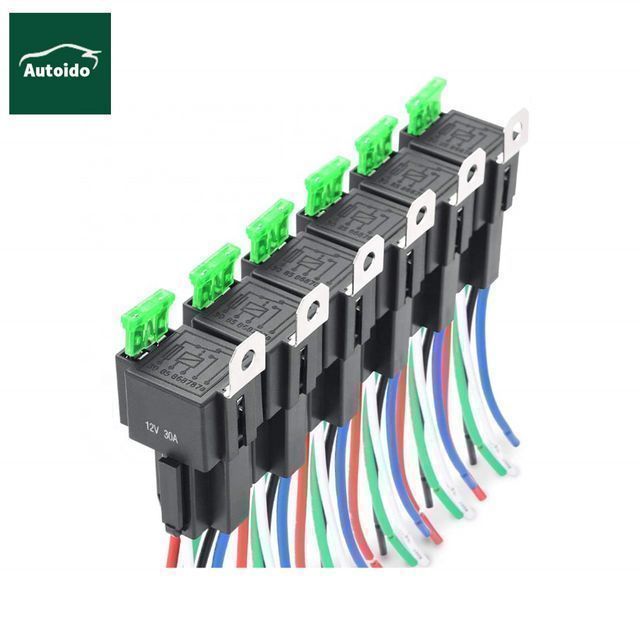

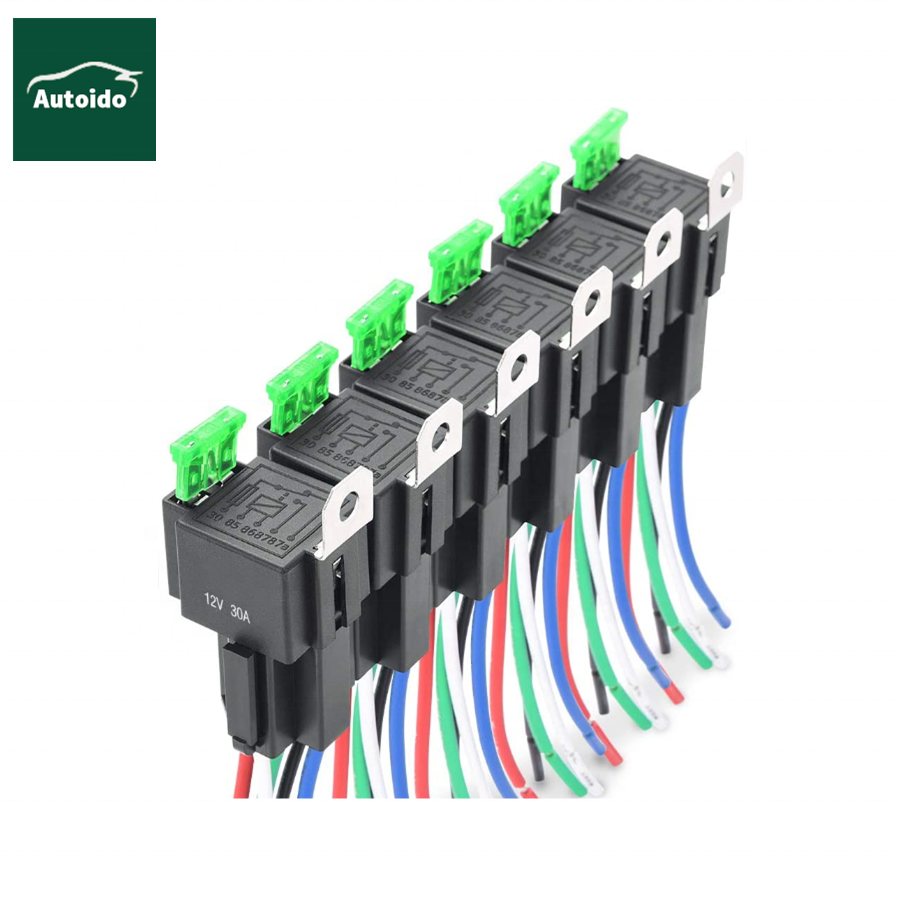

12V Fuse Relay Switch Harness Kit - 30A ATO ATC Blade Fuse, 5 Pin SPST Automotive Electrical Relay with Heavy Duty 14 AWG Wire

Specification

*Upgraded version - car relay with built-in fuse socket, comes with 30A blade fuse, no need for separate fuse holder,

Save space and money. Heavy duty 14AWG wire for main contacts

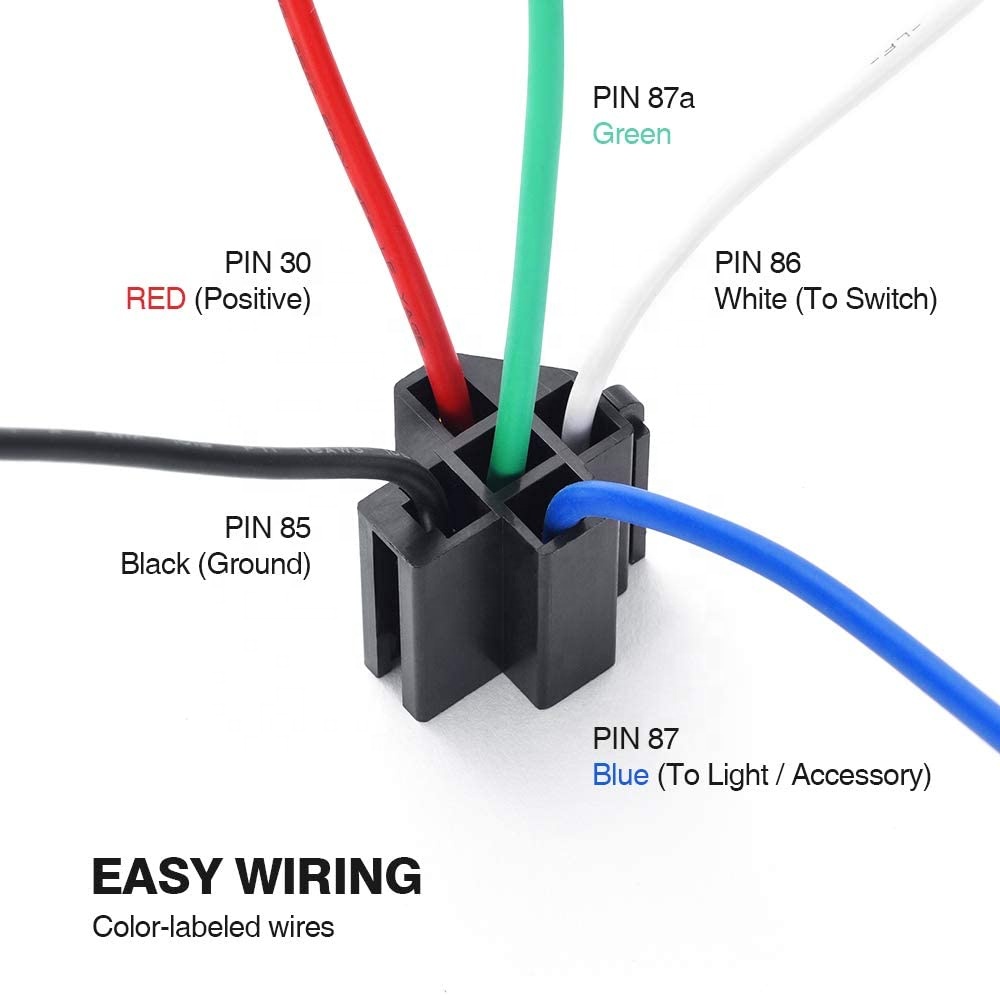

*Easy Wiring - Relay sockets come with colored labeled wires for loads/accessories for easy wiring. Black - Ground (85), Red
- VDC (30), White - Trigger (86), Blue - Output Normally Open (87), Green-87a Output Closed Contact

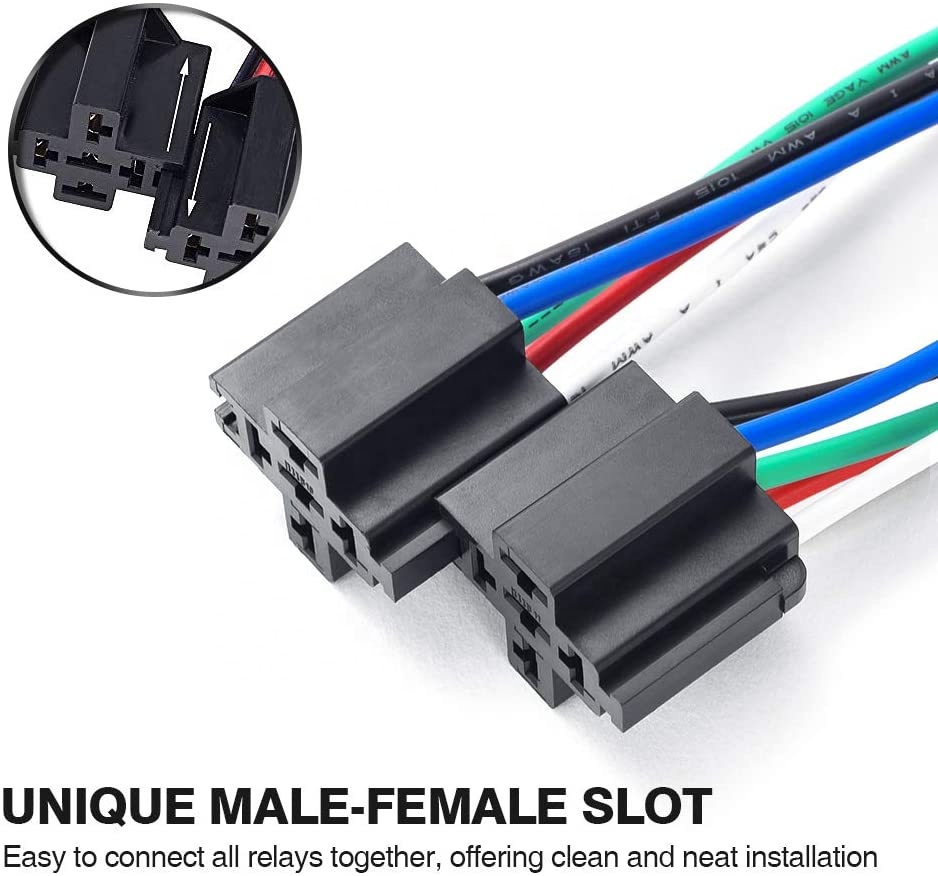

* Neat Installation Design - Unique male and female slot interlocking design on the edge of each socket for easy connection of all relays
together, providing a clean and tidy installation
* Good construction - 12V DC (Max@14V DC) and 30A high switching capacity. Bosch-style 4-pin SPST (single pole single throw)
relay. Metal mounting brackets on relays for easy installation
* Wide range of applications - Wide range of uses, widely used in car lights, fog lights, wipers, starters, fans, speakers, traction control
system, etc.

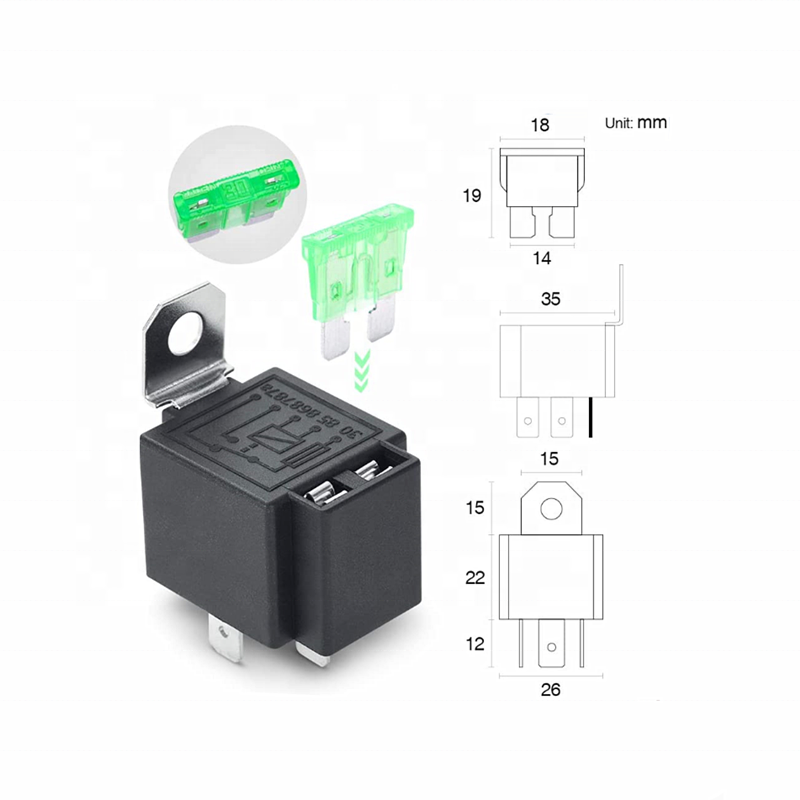

detailed image

Contact parameters
Contact list	1H(1A), 1Z(1C)
Contact resistance	100mΩ (1A 6VDC)
Contact material	silver alloy
Contact load (resistance)	40A 14VDC
Maximum switch current	40A
Maximum switching power	640 watts
Maximum switching voltage	75 VDC
Mechanical life	1×107 times
Electrical life	5×104 times

Performance parameters
Insulation resistance	100MΩ, 500VDC
Dielectric strength	Between contact and coil: 750VAC 1min
	Between open contacts: 500VAC 1min
action time	Max: 12ms
launch date	Maximum: 10 ms
Coil temperature rise (rated voltage)	Highest: 60℃
temperature range	-40℃～+85℃
Stablize	98m/s2
strength	980m/s2
vibration	1.5mm 10～55Hz
humidity	35%～85%RH
temperature range	-40% +85℃

Rated voltage VDC	Operating voltage VDC	Release voltage VDC	Maximum voltage VDC	Coil resistance VDC
6	4.2	0.6	7.2	23±10%
9	6.3	0.9	10.8	51±10%
12	8.4	1.2	14.4	90±10%
twenty four	16.8	2.4	28.8	360±10%
36	25.2	3.6	43.2	810±10%
48	33.6	4.8	57.6	1440±10%
