Manual hydraulic pipe bender busbar processing pipe bender

Supplier: Changshu Xinya Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Ms Wendy Jin
Price: $50.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	brand:	New Asia
Tube mold:	1/4", 1/8", 3/8", 1/2", 3/4", 1"	Packaging Details:	Box
place of origin; place of origin:	Jiangsu, China	Certification:	International Organization for Standardization
Bending Range (mm):	1/4" to 1"	Stroke (mm):	170
payment terms:	letter of credit, wire transfer	Custom Support:	OEM
model:	SWG-1	port:	Shanghai
output(T):	10	Weight: Approx (kg):	17
Supply capacity:	100 sets per month	Pipe thickness (mm):	1-3.5

Product Description

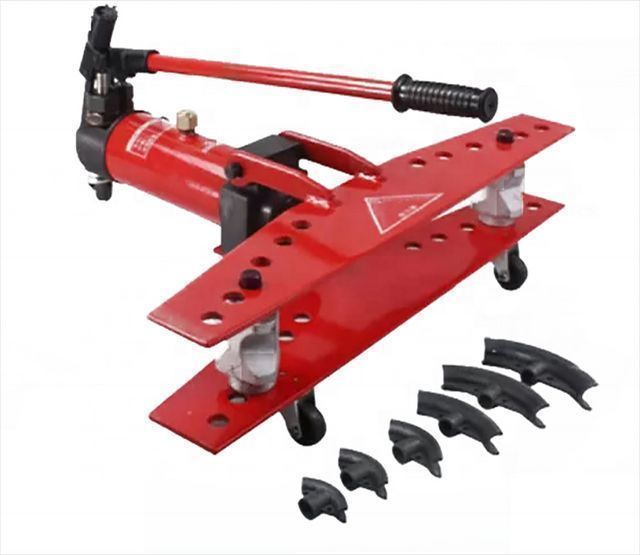

Manual Hydraulic Pipe Bender SWG-1 from 1/4" to 1"

introduce
Hydraulic pipe bending machines are mainly used in electric power construction,railway construction,
Laying and maintenance, complete functions, reasonable structure, simple operation, convenient movement,
Quick install etc.

feature:
1 The manual hydraulic pipe bending machine is suitable for ordinary water pipes, electric pipes, thick-walled pipes, and bends at an angle of 90 degrees.
2 1/2”-2” can be formed 90º in one pass, for 2 1/2”-4” the pipe must be moved and bent five times to the desired arc.

Technical data

Numbering.	SWG-1	SWG-2	SWG-3	SWG-4
output (T)	10	16	18	20
Stroke(mm)	170	250	320	415
Bending range(mm)	1/4"-1"	1/2"-2"	1/2"-3"	1/2"-4"
Pipe thickness (mm)	1-3.5	2.75-4.5	2.75-4.5	2.75-6
Weight: Approx (kg)	17	60	125	200
pack	single board box	single board box	single board box	single board box
box weight	2	6	8	13.5
Tube mold	1/4", 1/8", 3/8", 1/2", 3/4", 1"	1/2", 3/4", 1", 11/4", 11/2", 2"	1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3"	1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4"

Quality Control
1) Before the final confirmation of the order, we will gradually and strictly check the materials, accessories of the samples
2) Our salesman, who is also an order follower, tracks every stage of production from the very beginning
3) We have a QC team, every product will go through their inspection before packing
4) We will try our best to help customers solve problems
5).Most of our products have passed TUV CE/GS ISO9001 certificate.

payment terms
1) L/C at sight;
2) T/T: 100% TT or 30% deposit by T/T, 70% balance by T/T before shipment

Packaging Details
1) Plywood box or wooden box
2) The packaging method can also be changed according to the special requirements of customers.
