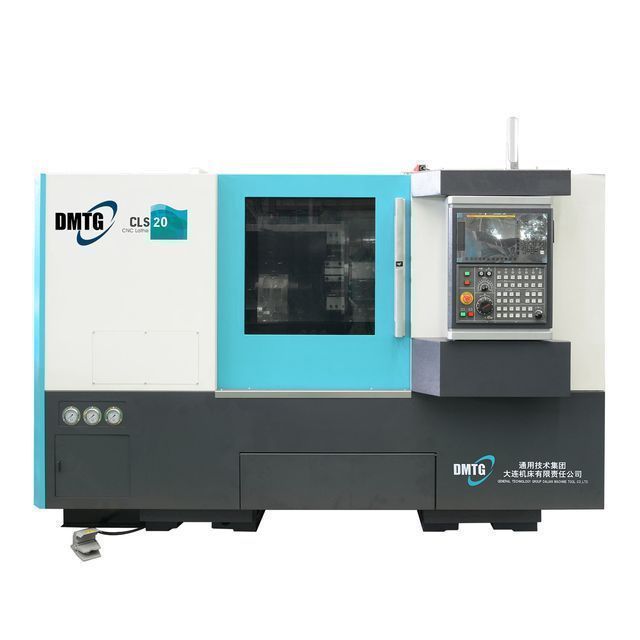

DMTG CLS20 China CNC Lathe Automatic Torno CNC Slant Bed CNC Lathe for sale

Supplier: General Technology Group Dalian Machine Tool Import & Export Co., Ltd.
Region: Liaoning, China
Contact: Mr DMTG .
Price: $13800.00 / 1 - 1 sets
$13500.00 / 2 - 2 sets
$12800.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

maximum. Workpiece length (mm):	450	Tool station:	8
payment terms:	letter of credit, wire transfer	Core components:	Spindle
Number of spindles:	1	Weight (kg):	4000
type:	horizontal	maximum. Spindle speed (rpm):	4500 rpm
structure:	Inclined bed lathe	Packaging Details:	Steel/Wooden Pallet/Wooden Box with Plastic Cover (*Op)
Core Components Warranty:	1.5 years	Maximum rotary bed diameter:	440mm
Maximum turning length:	450mm	place of origin; place of origin:	Liaoning, China
Stroke (X-axis) (mm):	165 mm	CNC control system:	Fanuc
Supply capacity:	6000 sets per year	Chuck size:	8"
Video external inspection:	if	Main selling point:	competitive price
Health status:	new	Warranty:	1 year, 1.5 years
Repeatability (X/Y/Z) (mm):	0.004/0.004	brand:	DMTG

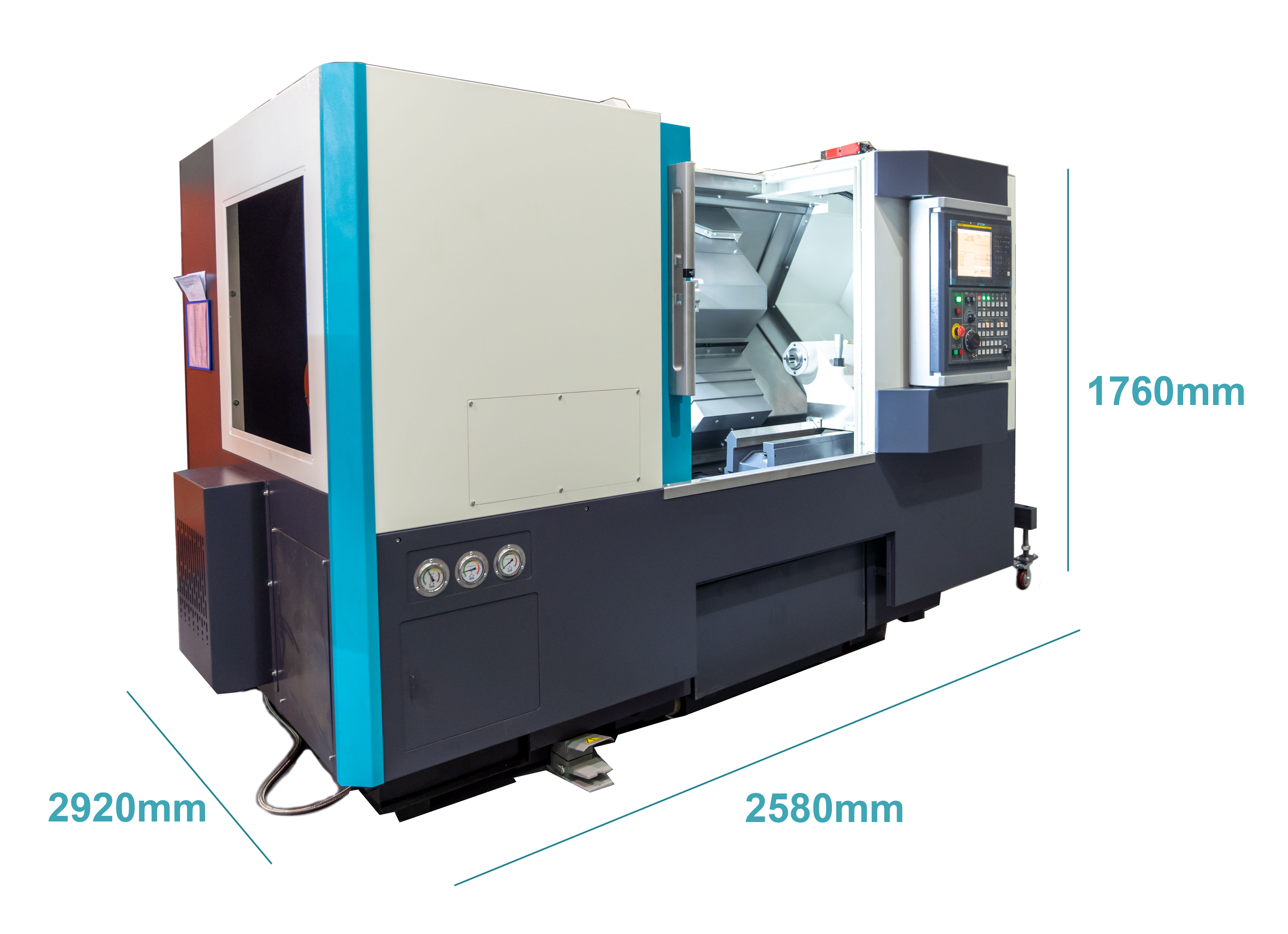

Dimensions (LWH):	285029201760	Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile , UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Japan, Malaysia, Australia
Spindle Bore (mm):	62	Maximum turning diameter:	260mm (shaft)/300mm (disk)
Mechanical test report:	if	Positioning accuracy (mm):	0.011/0.011
Processing capacity:	high accuracy	model:	CLS20
Marketing Type:	Dropshipping/Distributors	Number of axes:	2
Bed width (mm):	403 mm	port:	Dalian, China
Applicable industries:	Building materials stores, machinery repair shops, manufacturing plants	Stroke (Z axis) (mm):	500 mm
Spindle motor power (kW):	11/15

Product Details

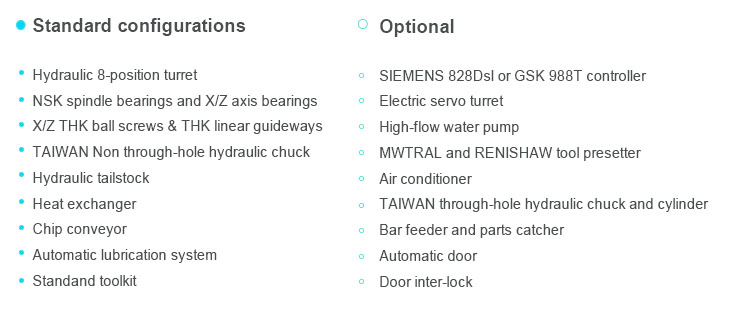

Features

1.Hydraulic 8 station turret

2.NSK Spindle Bearings and X/Z Axis Bearings3.X/Z THK Ball Screws and THK Linear Guides4.Taiwan Non-Through Hole Hydraulic Chuck

5.hydraulic tailstock

6. heat exchanger

7.Chip conveyor

8.Automatic lubrication system

9.Stand Kit

Maximum turning diameter of bed	400mm
Maximum turning diameter (shaft/disc)	165/200mm
Maximum turning length	300mm
Rail connector	Linear Guides
Chuck size	6 inches
Spindle speed range	50-5000 rpm
Spindle hole	46mm
Maximum bar capacity (Equipped with through-hole hydraulic chuck)	31mm
Spindle motor power	7.5/11kw
X-axis maximum lateral travel	120mm
Z axis maximum lateral travel	260mm
X/Z axis rapid movement	20/24 m/min
Tool type and tool number	Hydraulic 8-station turret
Shank size	20✖20
Tailstock sleeve diameter	80mm
Tailstock sleeve stroke	130mm
X/Z axis positioning accuracy	0.011/0.011
X/Z axis repeatability	0.004/0.004
Machine size (LxWxH)	2420✖2095✖2052(rear chip conveyor) 3720✖1525✖2052(side chip conveyor)
machine weight	3000kg
