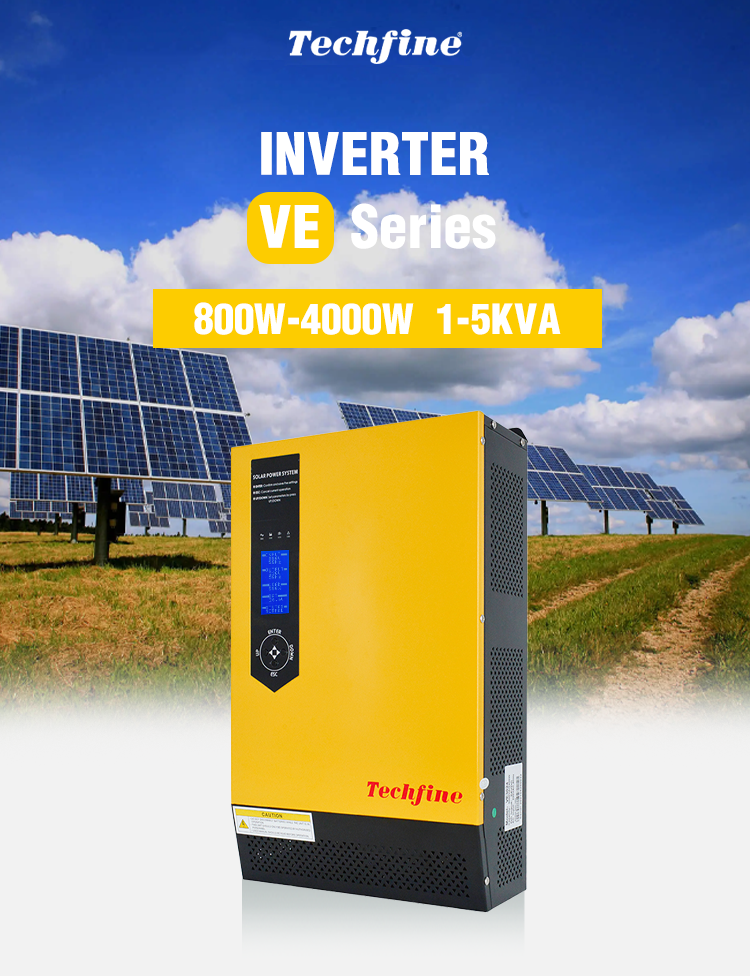

Off Grid 24V 48V 1.5Kw 2Kw 2.5Kw 3.5Kw 5Kw 6Kw 1.5 2 2.5 3 3.5 5 6 Kw Low Frequency Mppt Off Grid Hybrid Power Generation Solar Inverter
-
Supplier: Guangdong Techfine Electronic Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Ken Zeng -
Price: $104.00 /piece -
Min. Order: 1 piece
Product details

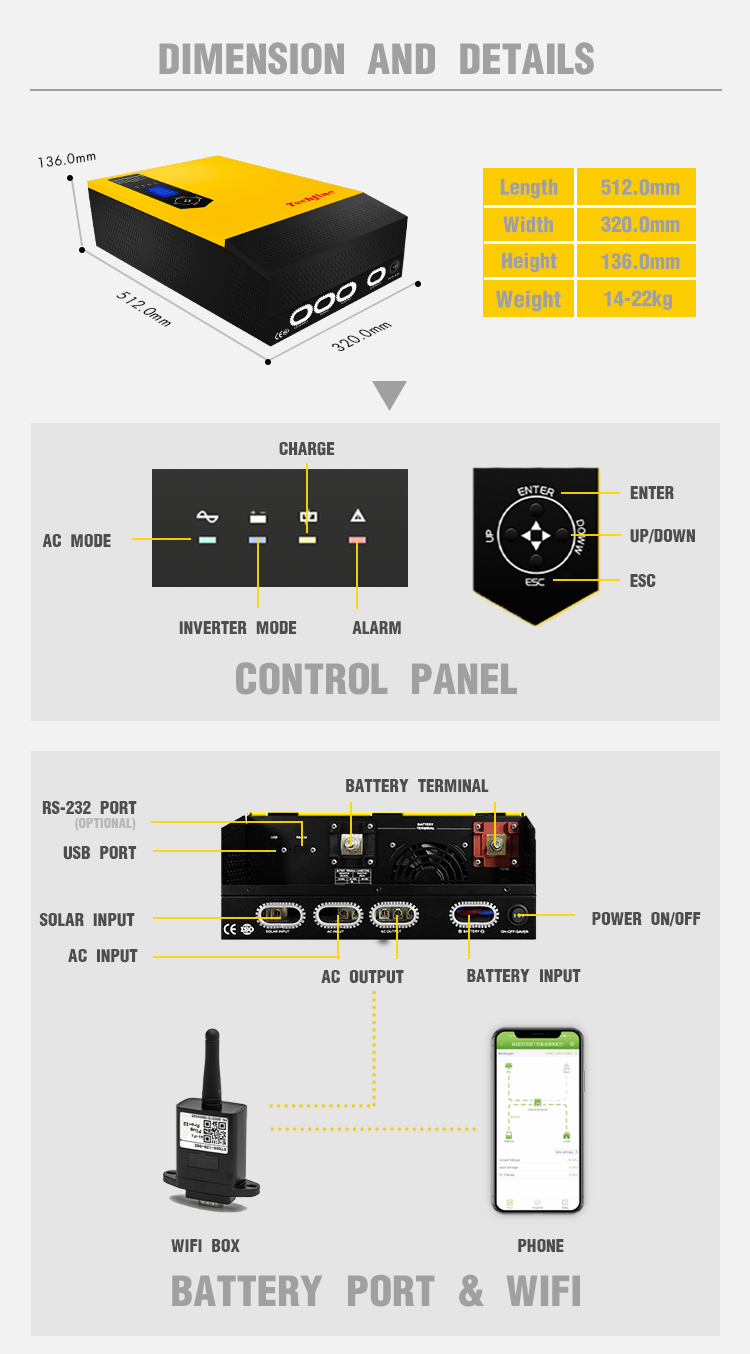

| size: | 512*320*136mm | exhibit: | LCD Monitor |
| Waveform: | pure sine wave | output type: | single |
| model: | VE | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| type: | DC/AC inverter | Output current: | 60A |
| brand: | Thai style | Warranty: | 1 year, 1 year |
| Inverter efficiency: | >98% | feature: | Energy efficient solar inverters and hybrid inverters |
| Certificate: | ISO9001, ISO14001 | Output frequency: | 50/60HZ |
| recharging current: | 60A | Original Equipment Manufacturer: | Accept OEM and ODM |
| weight: | 19KG | Supply capacity: | 5000 pieces per month |
| port: | Shenzhen/Guangzhou | Input voltage: | 24V/48V |
| Packaging Details: | Techfine Inverter is packaged in a strong and stable carton and uses plastic foam to reduce vibration and shock to ensure our products are in good condition. All Techfine products come in sturdy packaging for ocean and inland transportation, handling. Techfine guarantees the safety of operations and the timeliness of delivery, and provides attentive service to our customers. | Protect: | Short circuit protection overload |
| application: | Solar System Home | MPPT efficiency: | 98-100% |
| place of origin; place of origin: | Guangdong, China | The output voltage: | 220VAC |
| color: | yellow, red, white, green |
product description
Product Description
Product parameters
Model | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | ||||
Input voltage (DC) | 12V/24V | 12V/24V | 12V/24V | 24V/48V | 24V/48V | ||||
standard | 220VAC (standard) | ||||||||
rated power | 800W | 1200W | 1600W | 2400W | 4000W | ||||
waveform | pure sine wave | ||||||||
Battery Type | VRLA / GEL /GEL Deep Cycle / Lithium | ||||||||
Maximum PV array power | 12V: 800W / 24V: 1600W / 48V: 3200W | ||||||||
PV input voltage range (PWM controller) | 12V: MPPT 15V-150VDC / PWM 15V-30VDC | ||||||||
24V: MPPT 30V-150VDC / PWM 30V-60VDC | |||||||||
48V: MPPT 60V-150VDC / PWM 60V-105VDC | |||||||||
Maximum solar charging current | 60A | ||||||||
Maximum AC Charge Current | 15A/8A | 30A/15A | 40A/20A | 30A/15A | 42A/21A | ||||
transfer time | <10ms(UPS mode)/<20ms(INV mode) | ||||||||
load peak ratio | (Max) 3:1 | ||||||||
Static power (W) | 5W | 11.5W | 13W | 15W | 20W | ||||
Protect | Power supply: Input overcurrent protector | ||||||||
what we can offer you

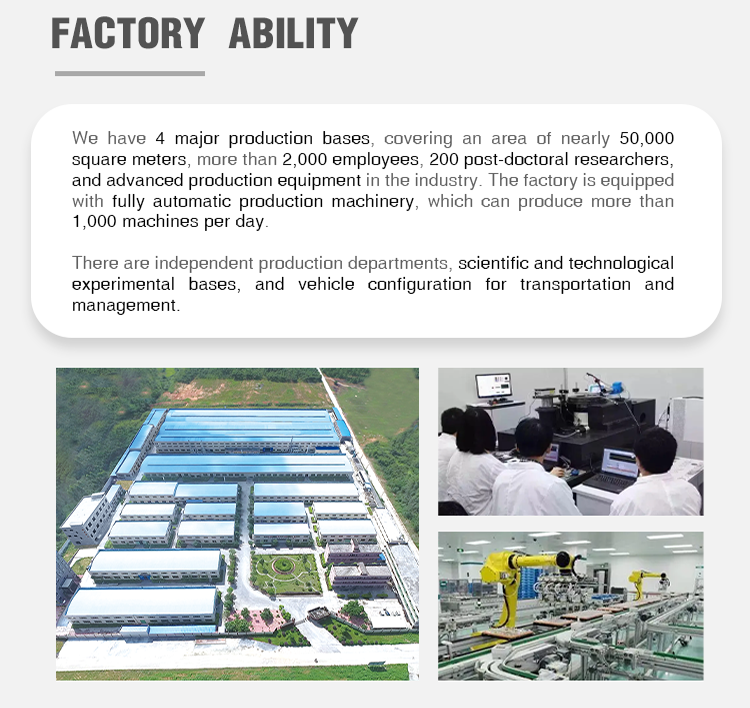

Factory tour
