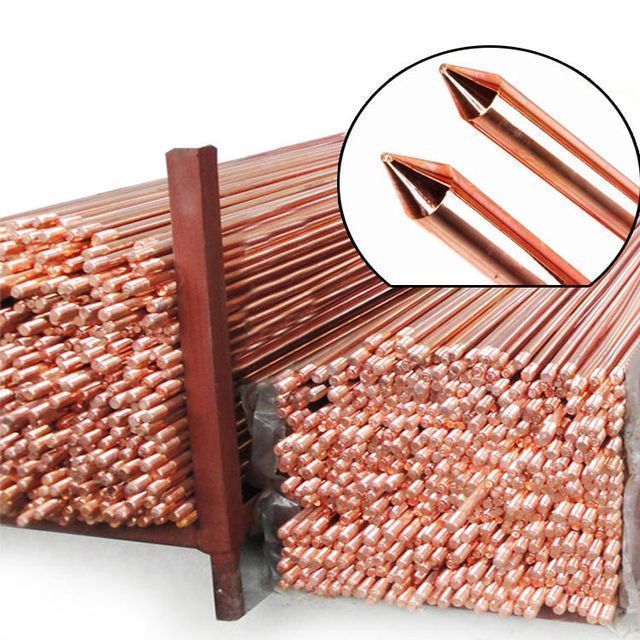

Pure copper ground rod for electrical equipment

Click here to contact

Product details

Certificate:	ISO9001	manufacturer:	Yes
Straightness error:	≤1mm/m	diameter:	12.7-25mm
tensile strength:	≥580N/mm²	Original Equipment Manufacturer:	Yes
Copper content:	99.9%	Packaging Preview:
place of origin; place of origin:	Zhejiang, China	Supply capacity:	500 tons of CCS ground rods per month
brand:	Bali	feature:	longevity
Original Equipment Manufacturer:	Yes	payment terms:	L/C,Western Union,D/P,T/T
Tensile life:	≥30 years	port:	Ningbo/Shanghai

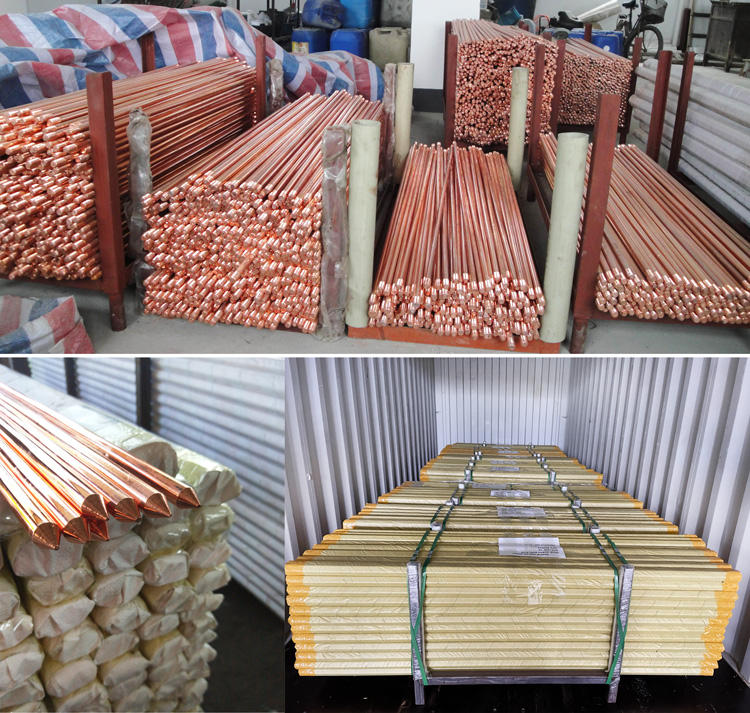

Packaging Details:	Braided belt + iron pallet + container	model:	CCSEP24

Why choose us

Click here to contact us now

Product Description

Pure copper ground rod for electrical equipment

Material	copper clad steel
copper thickness	≥0.254mm
copper purity	99.9%
tensile strength	≥600Mpa
Straightness error	≤1mm/m
service life	≥30 years
diameter	According to customer requirements

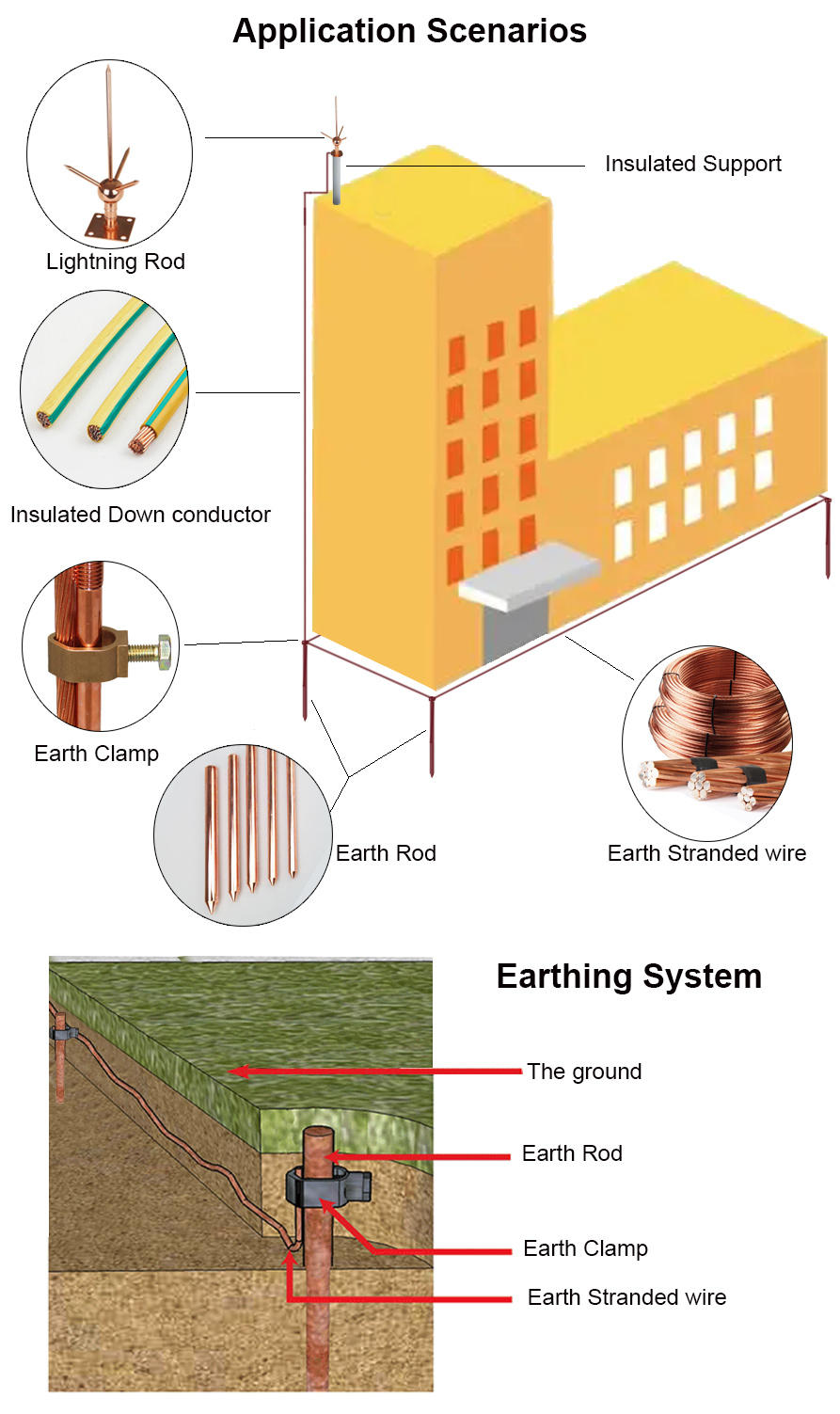

Function	For grounding and lightning protection systems

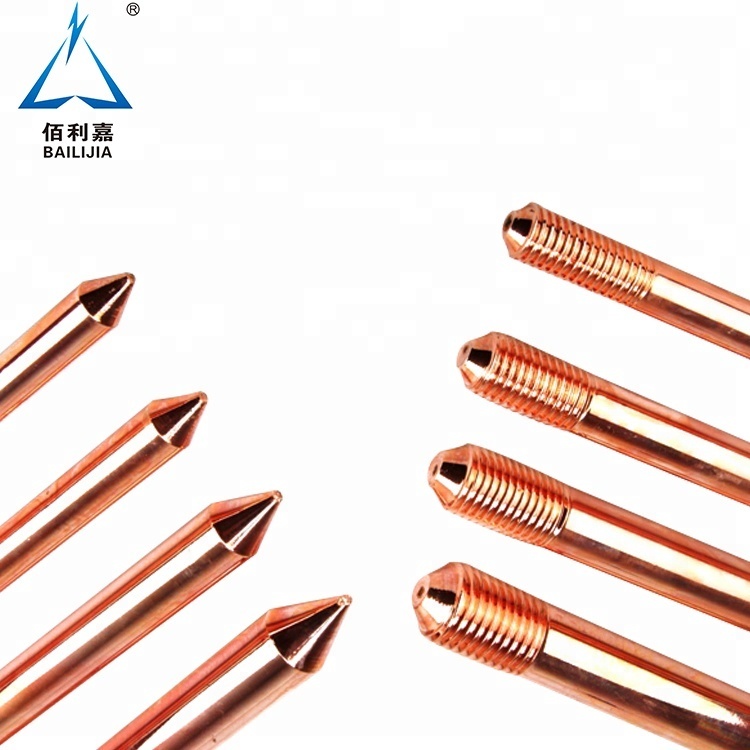

type	Threaded or flat or pointed

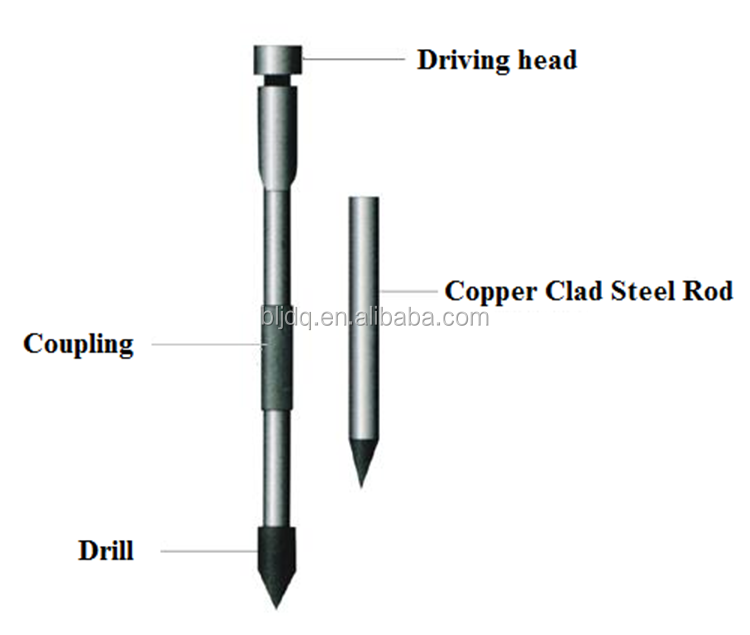

Accessories	Couplings, Drive Heads, Drills
Available service models	OEM, ODM
Certificate	ISO9001:2015,CE,SGS
Negotiable price according to different material/size and purchase quantity

Product Size

Copper-bonded ground rod, cross-section universal size (we can customize)

The above are common sizes, we can also do it according to your requirements. Please contact us to learn more about our products and services.

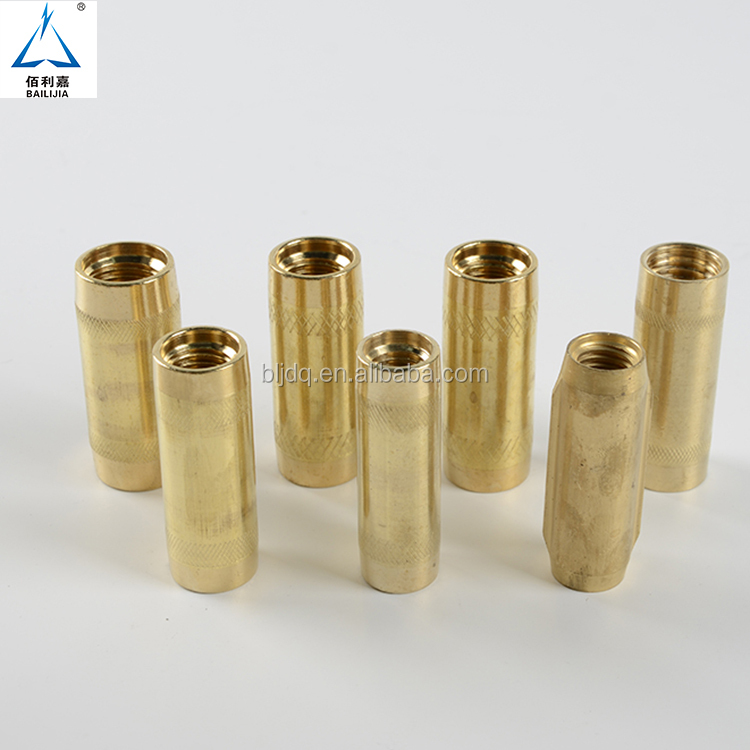

coupling
Product Specifications	Rod diameter (mm)	Screw Type (inch)	Material	Weight (kg)
8067101	12.7	9/16	brass
8067103	14.2	5/8	brass	0.1
8067105	16	M18	brass	0.111
8067107	17.2	3/4	brass	0.145
8067109	18	M20	brass	0.147
8067111	20	M22	brass	0.15

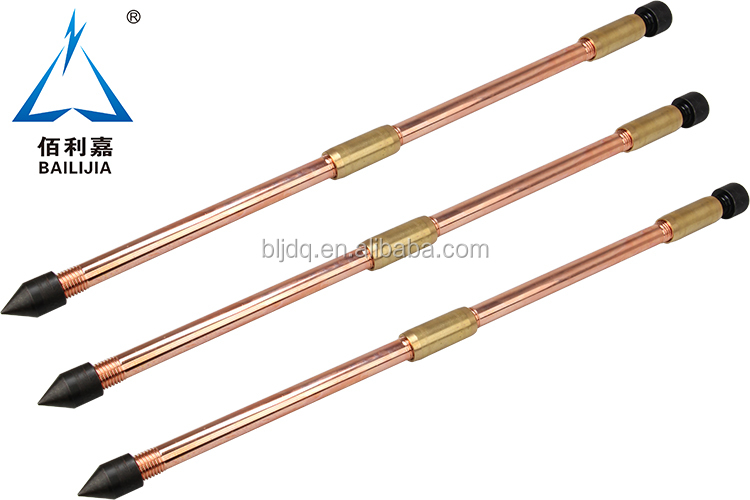

The coupling is made of high-strength copper alloy, which can protect the ground rod from being damaged when it penetrates into the ground and slow down corrosion. For connecting rods and connecting rods, connecting rods and drive heads, the length of the connecting rods can be arbitrarily increased as required. There are two kinds of threaded connection and non-threaded connection.

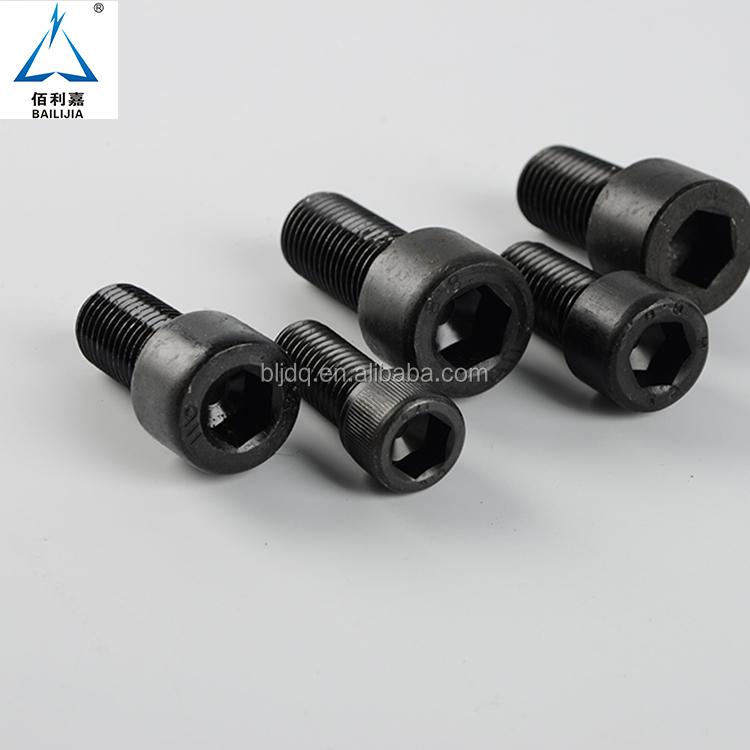

Drive head:
Product Specifications	Rod diameter (mm)	Screw Type (inch)	Material	weight
8067201	12.7	9/16	steel	0.071
8067203	14.2	5/8	steel	0.08
8067205	16	M18	steel	0.13
8067207	17.2	3/4	steel	0.121
8067209	18	M20	steel	0.127
8067211	20	M22	steel	0.219
The drive head is used for deep strikes with ground rods. Bailijia drive head is made of high-strength alloy steel, and one drive head can be recycled for many times.

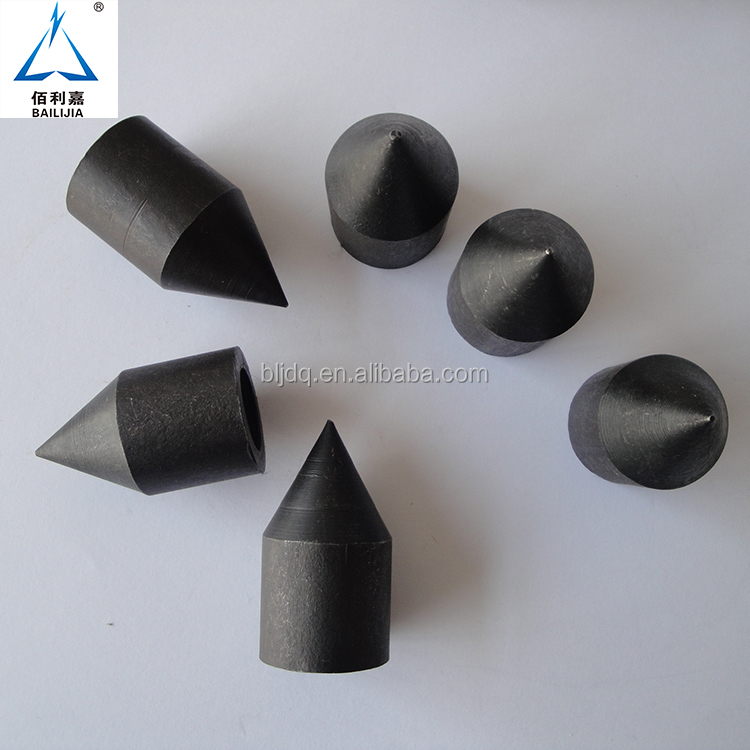

drill
Product Specifications	Rod diameter (mm)	Screw Type (inch)	Material	weight
8067301	12.7	9/16	steel	0.05
8067303	14.2	5/8	steel	0.059
8067305	16	M18	steel	0.065
8067307	17.2	3/4	steel	0.068
8067309	18	M20	steel	0.075
8067311	20	M22	steel	0.099
The drill bit is used to drill deep at the bottom of the ground rod. Bailijia drill bits are made of high-strength alloys, and the internal thread and the ground rod thread are glued together, which can effectively protect the deeply wounded rod.
