Product details

Elastic contact:	Gold or silver plated tin brass	insulator:	PTFE/plastic
port:	Shanghai	Mute contacts:	Beryllium copper
brand:	Fukuda	Material:	copper
Packaging Details:	0-3G waterproof surge arrester N female to SMA female coaxial RF arrester antenna standard export packaging 1 1 plastic bag 2 100 gray cartons 3 transparent plastic bags/standard export carton 4 according to customer requirements	temperature range:	-55~+155°C (PE cable -40~+85°C)
Origin:	Jiangsu, China	Frequency Range:	DC-3GHz / DC-6GHz
Connector type:	no	O-ring sales:	6146 silicon
impedance:	50Ω,75Ω	plating:	nickel/gold
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Supply capacity:	1000 pieces per week
model:	Surge arrester Surge arrester

Product Description

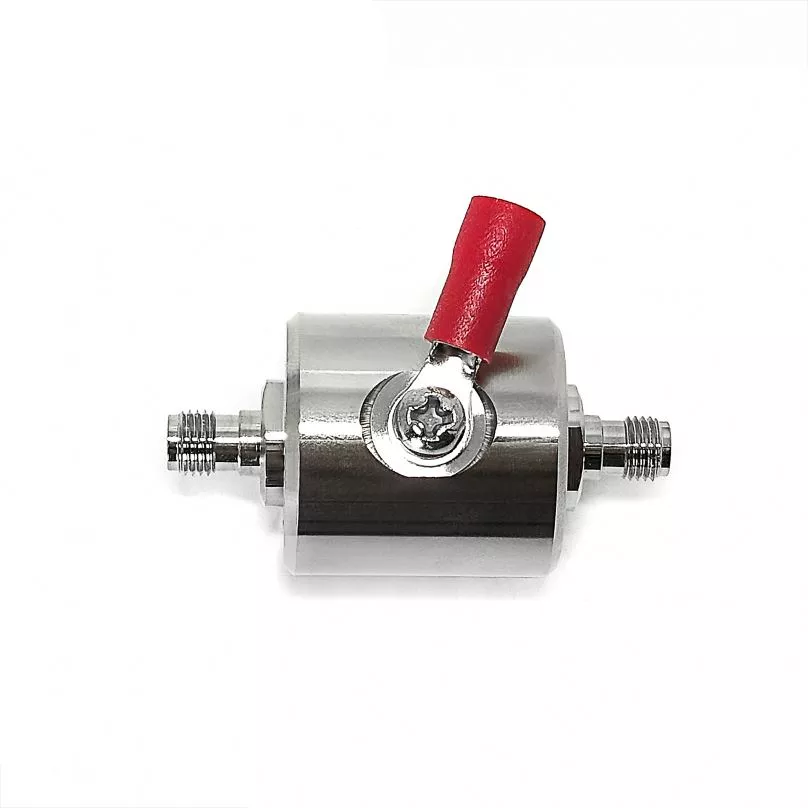

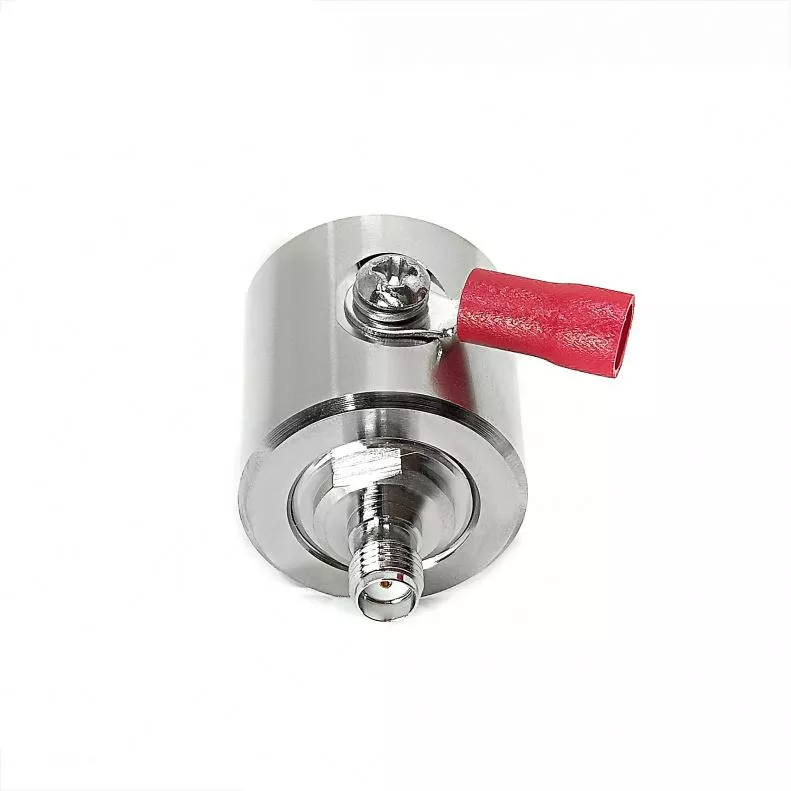

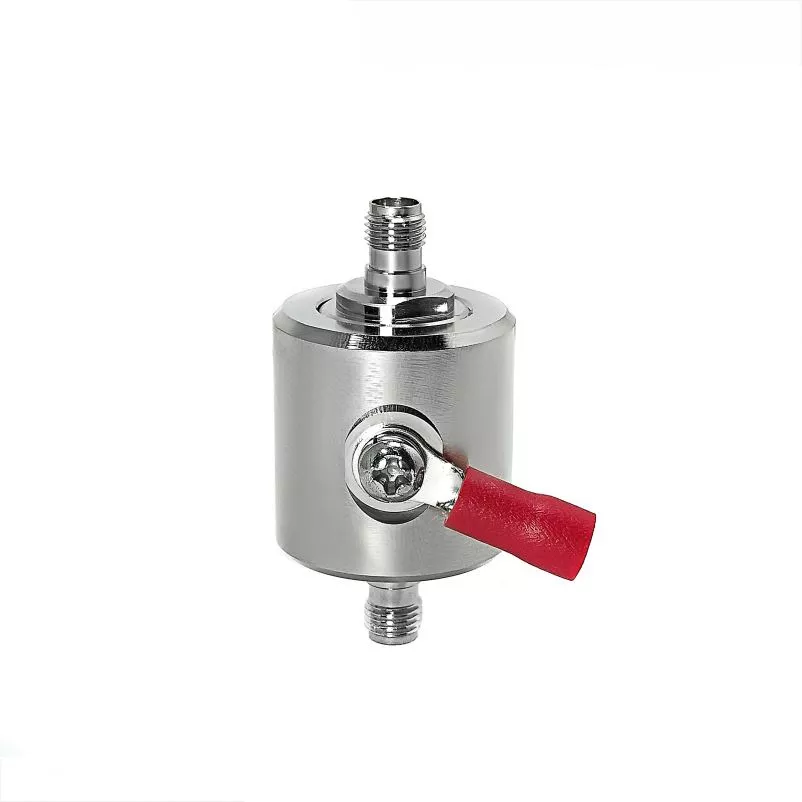

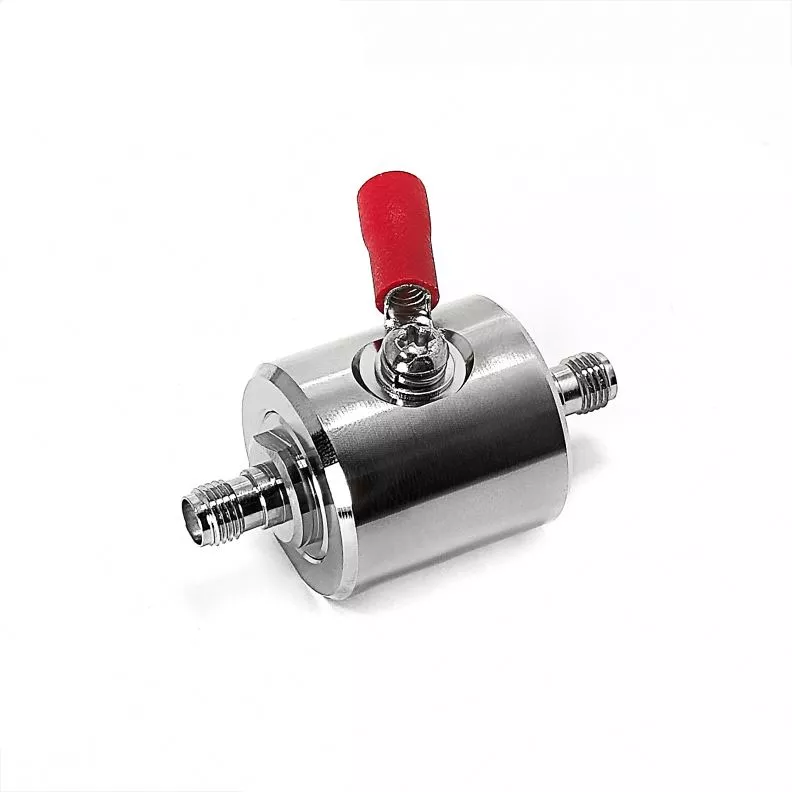

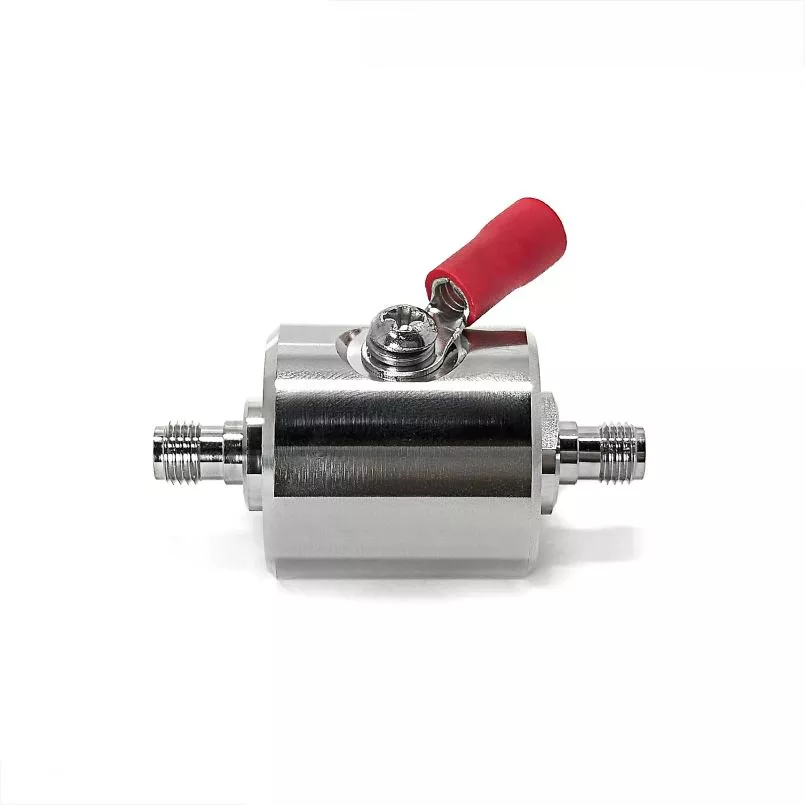

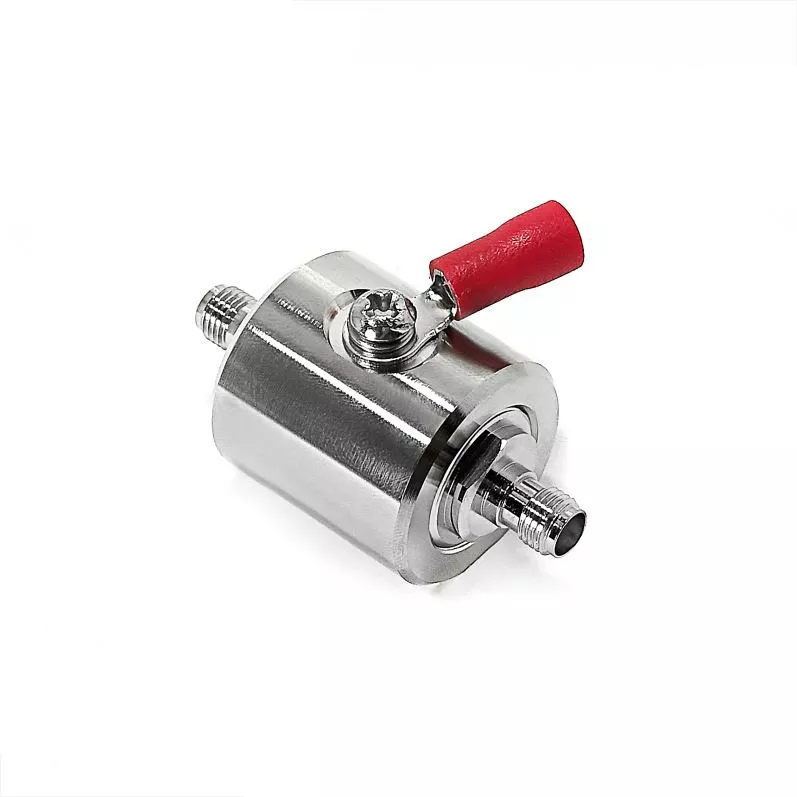

detailed image

Surge/Surge Arrester Surge Arrester/Protection
Frequency Range	DC-3GHz / DC-6GHz
Voltage	90V / 220V / 250V / 350V
Protect	Gas discharge tube / 1/4 wavelength
Insertion loss	<0.4dB
return loss	<-26dB
The maximum surge voltage allowed to pass	<200mV
by putting in energy	<5 nanojoules
impedance	50 ohms/ 75 ohms
Maximum power	50W
ingress protection	IP65
ingress protection	IP65
Ground screw/lug	yes
VSWR	<1.1(DC-3G)
Maximum current load	10A
Nominal discharge current (kAMP)	5 kA
Maximum discharge current (kAMP)	20 kAMP
Inrush current (kAMP)	2.5 kA
Working temperature (°C)	(-40 to +85) C
ROHS Directive	Yes
ISO-9000 certification	Yes
