Installing grounding rods for high-voltage lightning protection grounding rods

Supplier: Xinchang Shibang New Material Co., Ltd.
Region: Zhejiang, China
Contact: Mr Norman Chen
Price: $2.00 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

model:	Jiaduobao-J031	Material:	copper layer and steel core
payment terms:	L/C, Western Union, D/P, D/A, T/T	Origin:	Zhejiang, China
diameter:	14.2mm~25mm; (5/8, 3/4)	tensile strength:	>=580Nm/mm
Service life:	>=50 years	Copper layer thickness:	>=0.254mm
Packaging Details:	10pcs/bundle PVC pipe, 20-50 bundles/tray for installing ground rod high voltage lightning protection device	length:	1.2m~3.0m(4ft~10ft)
brand:	Shibang	Purity of Copper:	>=99.95%
Straightness error:	<=1 mm/m	Supply capacity:	50000 pieces per month
port:	Ningbo/Shanghai	thing:	Ground rod

Product Description

Installing grounding rods for high-voltage lightning protection grounding rods

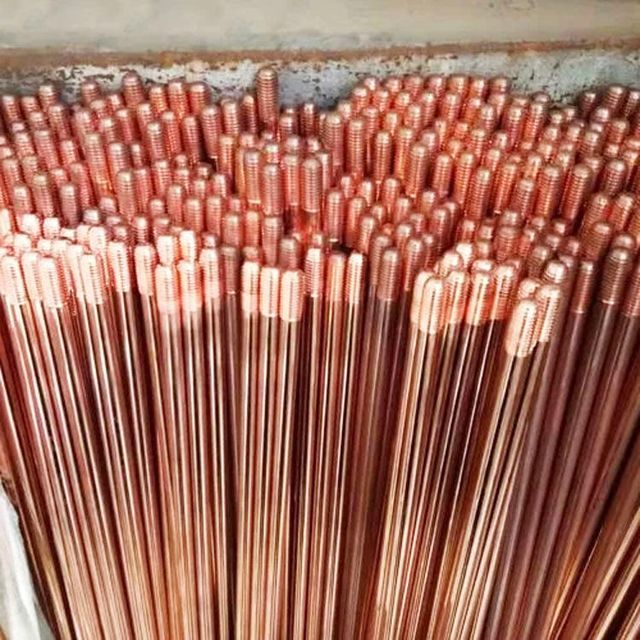

thing	14.2mm diameter copper ground rod products
Material	copper layer steel core
Copper Thickness	≥0.254mm or as your request
tensile strength	≥580Nm/mm
Straightness error	≤1 mm/m
service life	≥50 years
Function	Grounding, Dispersing Lightning

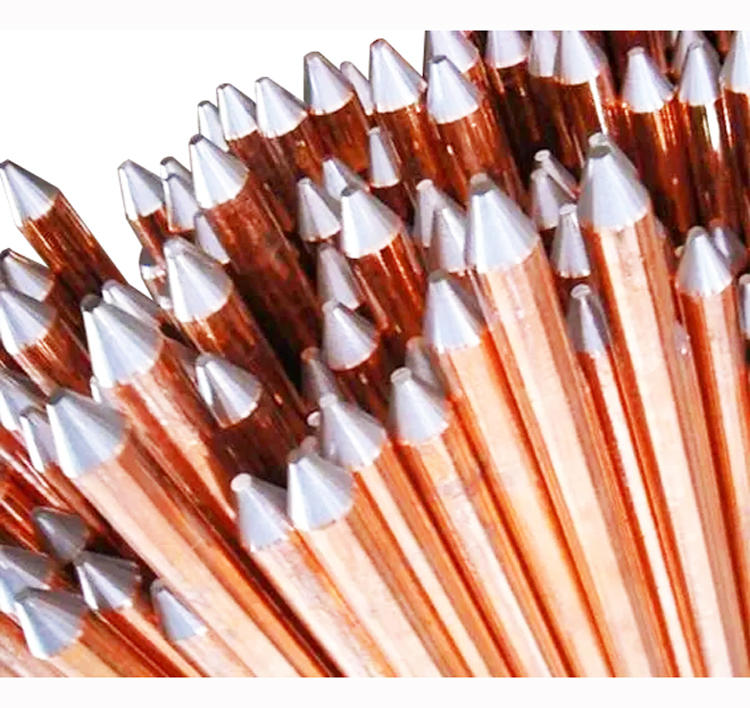

type	threaded or flat or pointed
Available Service Modes	OEM; Original Design Manufacturer
certified	ISO9001:2008

1) The purity of cladding copper is greater than 99.95%.
2) The steel core is made of low carbon steel with a carbon content of about 0.15%.
3) The copper ground rod can pass through 90° at a maximum radius of 100mm
There is no copper fracture and no adverse effect on the bond between the steel and copper cladding.
4) Good anti-corrosion performance, service life of more than 50 years, constant low resistance, good plasticity
Has the characteristics of pure copper.
5) The ground rod is fully covered with copper, without cracks, holes, voids, etc.
Protects the steel core from exposure to soil and moisture, resulting in good corrosion resistance.
