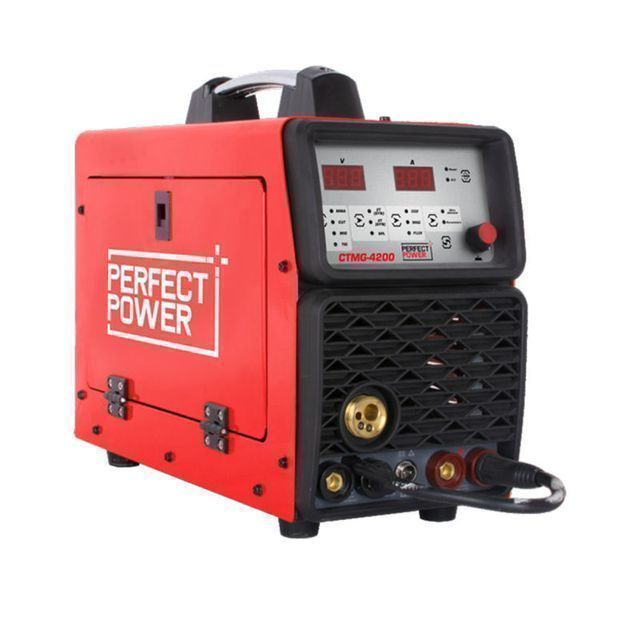

Multifunctional 5 in 1 Combination Cutting MachineTIG WelderStick WelderPlasma Cutting MachineMIG/MAG Welder
-
Supplier: Guangzhou Jingjia Auto Equipment Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Coco Huang -
Price: $527.25 / 1 - 10 sets
$503.29 / 11 - 50 sets
$479.32 / >=51 sets -
Min. Order: 1 set
Product details
| brand: | perfect power | Welding current range (A): | 20-200(TIG/MMA)60-200(MIG) 20-40(CUT) |
| Power Input AC (V): | 1pH 220V ±15% | maximum. Cutting current (A): | 40 |
| Packaging Preview: | Rated output current: | 40A | |
| port: | Guangzhou | Dimensions (LxWxH): | 496*212*380mm |
| stage: | Stage 1 | Rated duty cycle (%): | 40 |
| Power input frequency (Hz): | 50/60 | Custom Support: | OEM |
| Warranty: | 1 year | Packaging Details: | 1 carton welding machine |
| model: | CTMG-4200 | payment terms: | L/C,D/P,T/T |
| Intellectual property level: | IP21 | Insulation class: | F |
| maximum. Load power capacity (kVA): | 8.0 | weight: | 15 |
| Advantage: | Multifunctional five-in-one | Open circuit voltage DC(V): | 66(TIG/MMA/MIG) 244(Cut) |
| place of origin; place of origin: | Guangdong, China |

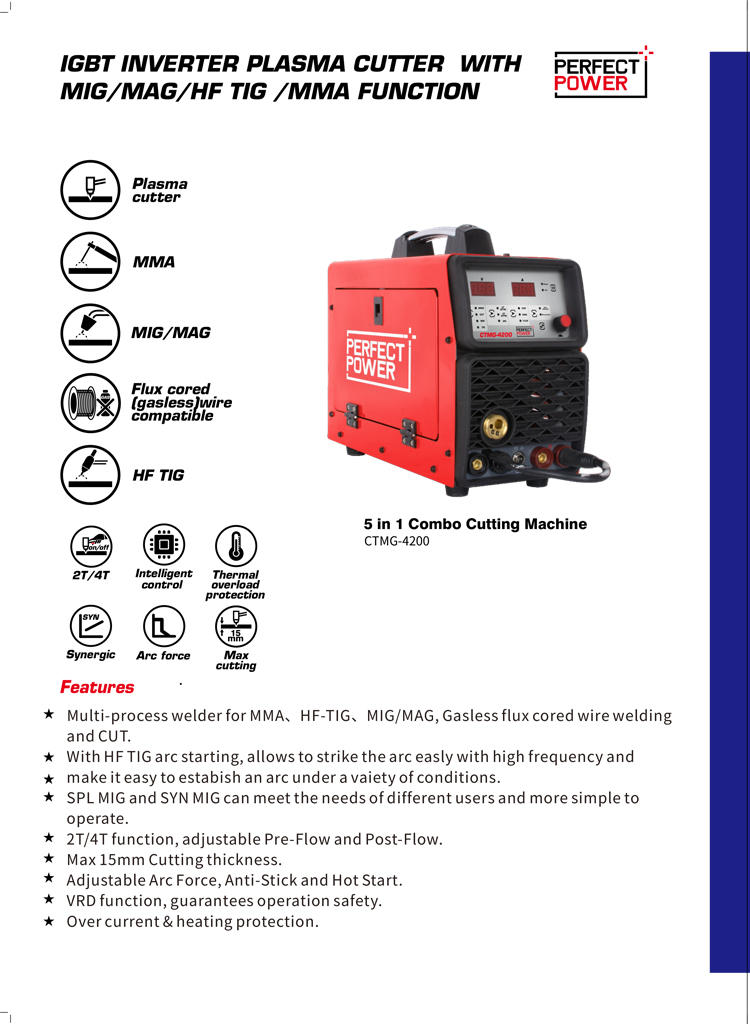

Product Description

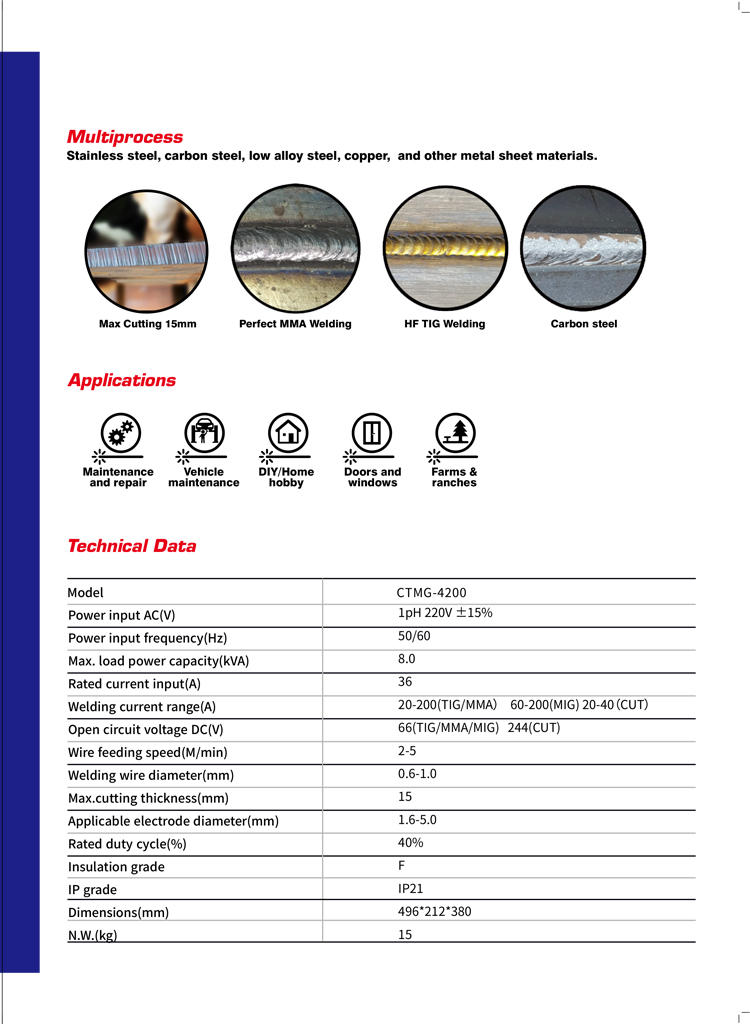

Specification
Power input AC (V) | 1pH 220V ±15% |
Power input frequency (Hz) | 50/60 |
maximum. Load power capacity (kVA) | 8.0 |
Rated current input (A) | 36 |
Welding current range (A) | 20-200 (TIG/MMA) 60-200 (MIG) 20-40 (CUT) |
maximum. Cutting current (A) | 40 |
Open circuit voltage DC(V) | 66(TIG/MMA/MIG) 244(Cut) |
Rated duty cycle (%) | 40 |
Maximum cutting thickness (mm) | 15 |
IP level | IP21 |
Insulation class | F |
Dimensions (mm) | 496*212*380 |
Net weight (kg) | 15 |
