CDR-5A small semi-automatic counter capsule filling machine for mini desktop tablets

Supplier: ZHEJIANG CAPSULCN IMP&EXP CO.,LTD
Region: Zhejiang, China
Contact: Ms Abaire Zhang
Price: $1666.00 /set
Min. Order: 1 set

Click here to contact

Product details

Capacity (pieces/hour):	90000pcs/hour	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
application:	Hard/Soft Capsules, <25mm Tablets	Video shipment inspection:	if
Core component warranty:	1 year	Main selling points:	long lasting
usage:	capsule	place of origin; place of origin:	Zhejiang, China
Applicable industries:	Manufacturing Plants, Food & Beverage Plants, Retail, Food & Beverage Stores	Mechanical test report:	if
Weight (kg):	50	Power (kW):	0.35
product name:	Capsule counting machine	Warranty:	1 year
Core components:	gearbox	Dimensions (LWH):	403655cm
Voltage:	220V50HZ/110V60HZ	Health status:	new
brand:	capsule	Output capacity:	300-1500 grains/min
Model:	CDR-5A	Packaging Details:	export wooden box
feature:	semi-automatic	Production capacity:	300-1500pcs/min
Certificate:	EU/ISO	Material:	Stainless steel
Marketing Type:	New Products 2020	Operation:	automatic running
power supply:	220V/50HZ/110V/60HZ	Showroom location:	USA, Germany, Mexico, Spain

Product Description

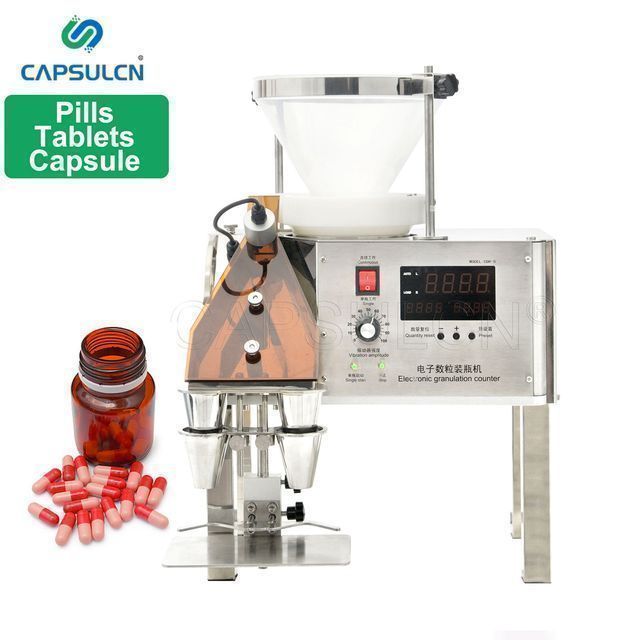

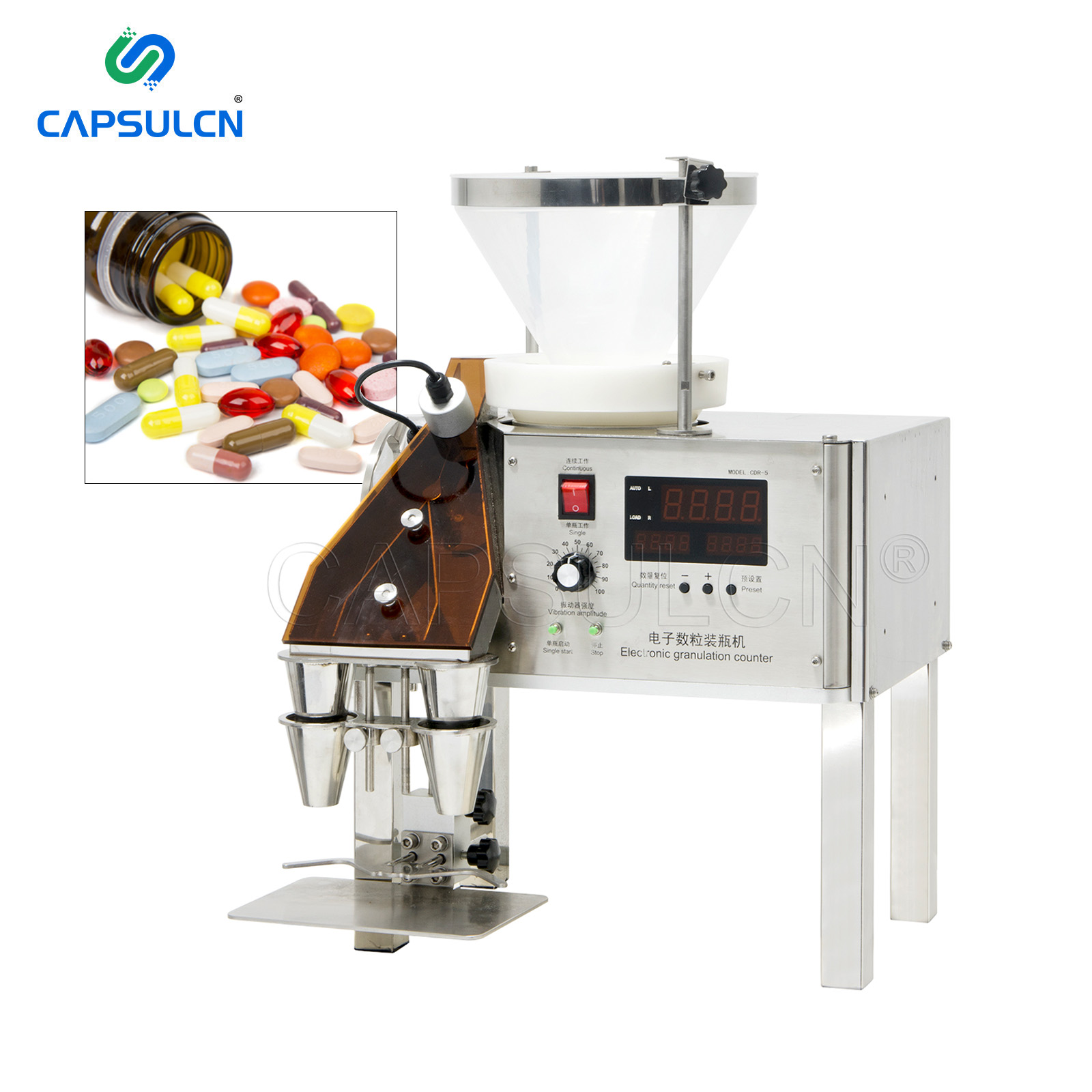

CDR-5A Capsule Counting Machine

The machine is designed and developed to accurately count and fill products of different shapes or sizes such as soft capsules, hard capsules, tablets, sugar-coated and film-coated tablets, pills, herbal medicines or similar products into containers or vials middle.
The machine can be adjusted to count 1-9999 capsules or tablets per bottle without changing spare parts.

application:

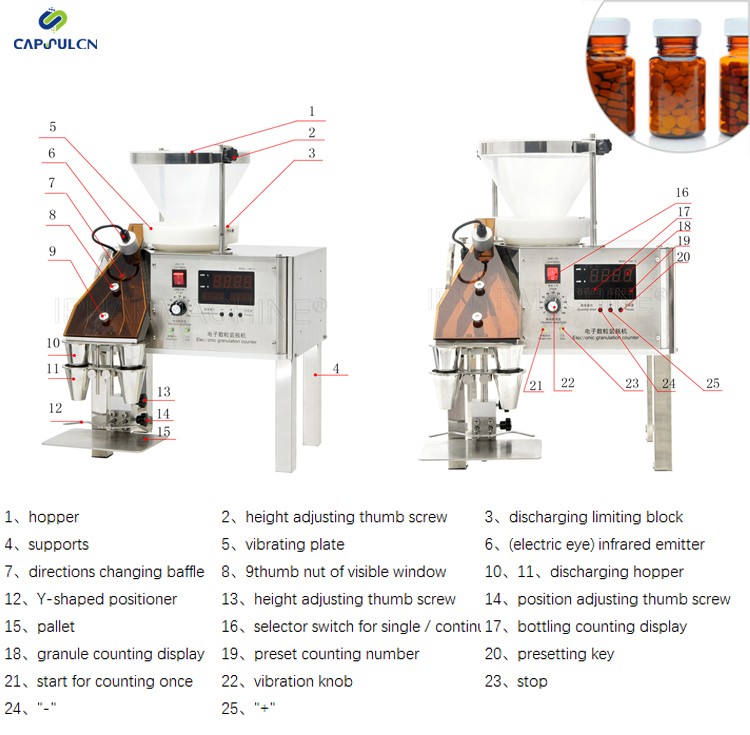

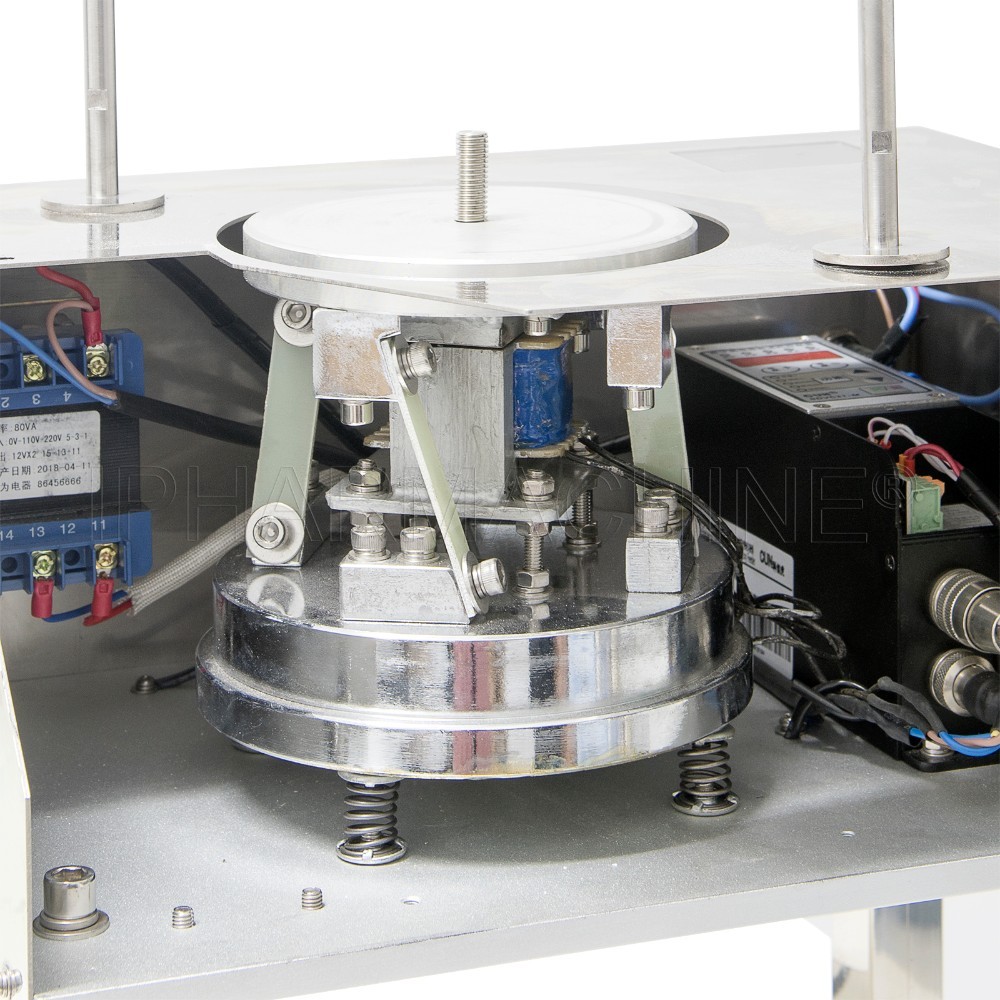

detailed drawing

Comment

* Good design structure, easy to maintain and clean.
* All parts are easy to replace, including the PC board of the control system.
* All product contact parts are made of SUS 316.
* Smooth rotation system with computer counter makes high precision.
*Infrared identification system can identify transparent soft capsules. Even after a long run, it still

Can penetrate the dust accumulated on the die.
* One conveyor belt conveys bottles at variable speed.

Specification

Model	CDR-5A	CDR-3A	YL-4
tablet size	maximum. 12mm in diameter	maximum. diameter 20mm	maximum. diameter 23mm
bottle size	15-500ML	15-500ML	15-500ML
output	500-1500pcs/min	1000-2000 pieces/minute	2000-4000pcs/min
strength	100W	150W	200W
Voltage	110V 60Hz / 220V 50Hz	110V 60Hz / 220V 50Hz	110V 60Hz / 220V 50Hz
weight	22 kg	65 kg	75 kg
aspect	400x360x550mm	820x830x350mm	980x790x930mm
