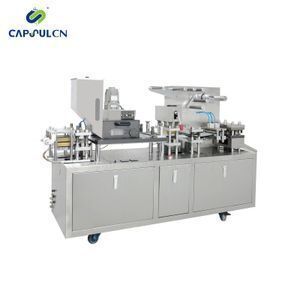

DPP-88 Automatic Capsule Blister Packing Machine

Supplier: ZHEJIANG CAPSULCN IMP&EXP CO.,LTD
Region: Zhejiang, China
Contact: Ms Abaire Zhang
Price: $6135.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power of Forming heating:	1.5KW;	Certification:	CE;
Warranty:	1 YEAR;	Key Selling Points:	High productivity;
Machinery Test Report:	Provided;	Adjustable scope of feed travel:	f feed travel: 30-100mm(adjustable);
After Warranty Service:	Video technical support,Online support;	Packaging Detail:	Export Standard Wood Pack;
Application:	Food,commodity,Medical,Machinery & Hardware;	Voltage:	380V/220V 50Hz;
Core Components:	Gearbox;	Condition:	New;
Requirement of PVC foil:	Length: 130mm, thickness: 0.25-0.5mm;	Main motor power:	0.75KW;
After-sales Service Provided:	Video technical support,Online support;	Marketing Type:	New Product 2020;
Blanking frequency:	PVC-AL: 10-40 times/min;	Driven Type:	Electric;
Showroom Location:	United States,GERMANY,Mexico,spain;	Power of sealing heating:	1.5KW;
Requirement of ALU foil:	Length: 130mm, thickness: 0.02-0.035mm;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Automatic Grade:	Automatic;	Brand Name:	CapsulCN;
Warranty of core components:	6 months;	Capacity of air compressor:	≥0.2m3/min Pressure: 0.4~0.6MPa;
Supply Ability:	50 Set/Sets per Month;	Capacity:	AL-AL: 10-30 times/min;
Dimension(LWH):	20706501060mm;	The max forming area and depth:	120mm90mm20mm;
Port:	Shanghai/Ningbo;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Food & Beverage Factory,HOME USE,Retail,Food Shop,Chemical, Food, Medical;
Video outgoing-inspection:	Provided;	Weight:	560KG;
Type:	Blister Packaging Machine;	Local Service Location:	United States,GERMANY,Mexico;

Product Description

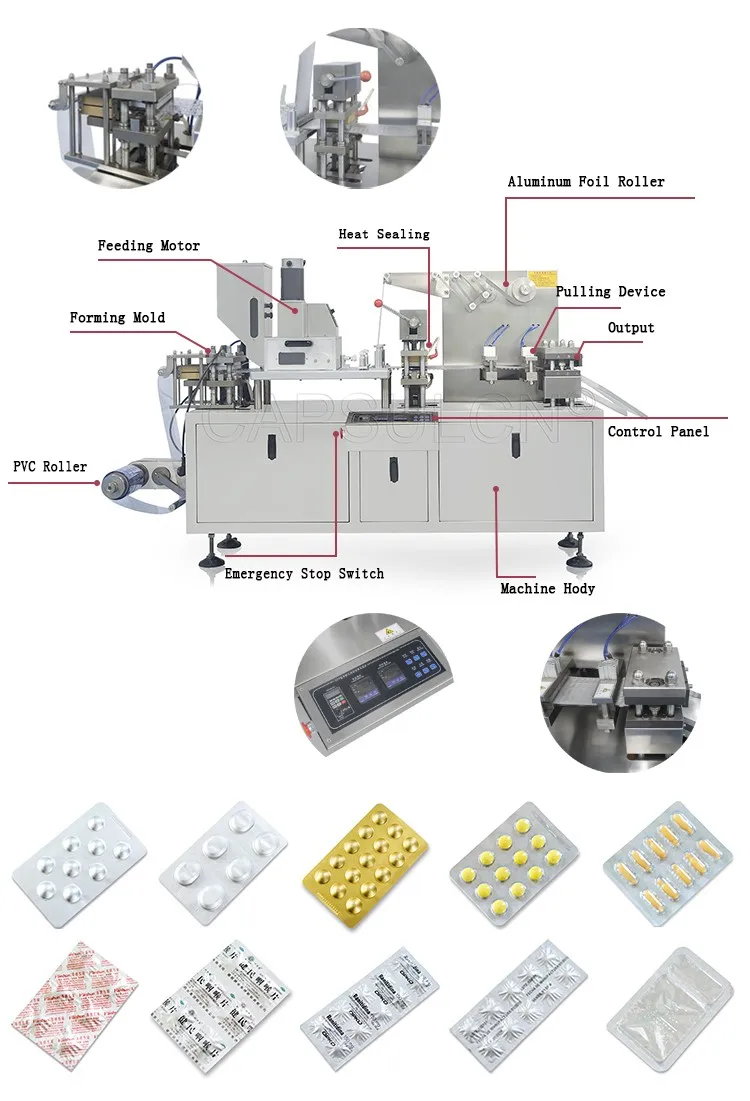

DPP-88 Automatic Blister Packing and Sealing Machine

The product is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine body, easy operation, multi-function, stroke adjustable, long durability etc, it is suitable for the Alu-PVC package of medicine, food, electric parts etc. Aided forming Pre‐cutting Inspection and rejecting control systems. Print mark registration Automatic feeder

Specifications

Automatic Blister Packing and Sealing Machine
Model	DPP-88	DPP-140	DPP-250
Cutting Frequency	20-40 times/min	20-40 times/min	15-45 times/min
Capacity	2400strip/h	4800strip/h	9600strip/h
Max shaping areas and depth	*8010015mm*	24011015mm	25012015mm
Stroke	20-100mm(can be manufactured as user's requirements)	20-120mm(can be manufactured as user's requirements)	30-130mm(can be manufactured as user's requirements)
Standard Sheet	*8057mm(can be manufactured as user's requirements)**	80*57mm(can be manufactured as user's requirements)	80*57mm(can be manufactured as user's requirements)
PVC hard pieces	*0.15-0.588mm**	0.15-0.5*140mm	0.15-0.4*260mm
PTP Aluminum Foil	*0.02-0.03588mm**	0.02-0.035*140mm	0.02-0.015*260mm
Air Pressure	0.4-0.6 Mpa	0.4-0.6 Mpa	0.4-0.6 Mpa
Air Compressed Capacity	≥ 0.3m³/min	≥ 0.3m³/min	≥ 0.3m³/min
Power Supply	380V/220V 50Hz 1.8kw	380V/220V 50Hz 3.2kw	380V/220V 50Hz 8kw
Main motor power	0.55kw	0.75kw	1.5kw
Cooling of Mold	Tap water or Recycling water	Tap water or Recycling water	Tap water or Recycling water
Noise (dBA)	< 75dBA	< 75dBA	< 75dBA
Net Weight	450kg	820kg	1400kg
Overall Size	*18405901100mm*	23156351405mm	30007301600mm

(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, Filling machine and Capsule Size.) Contact us>>

Related Products

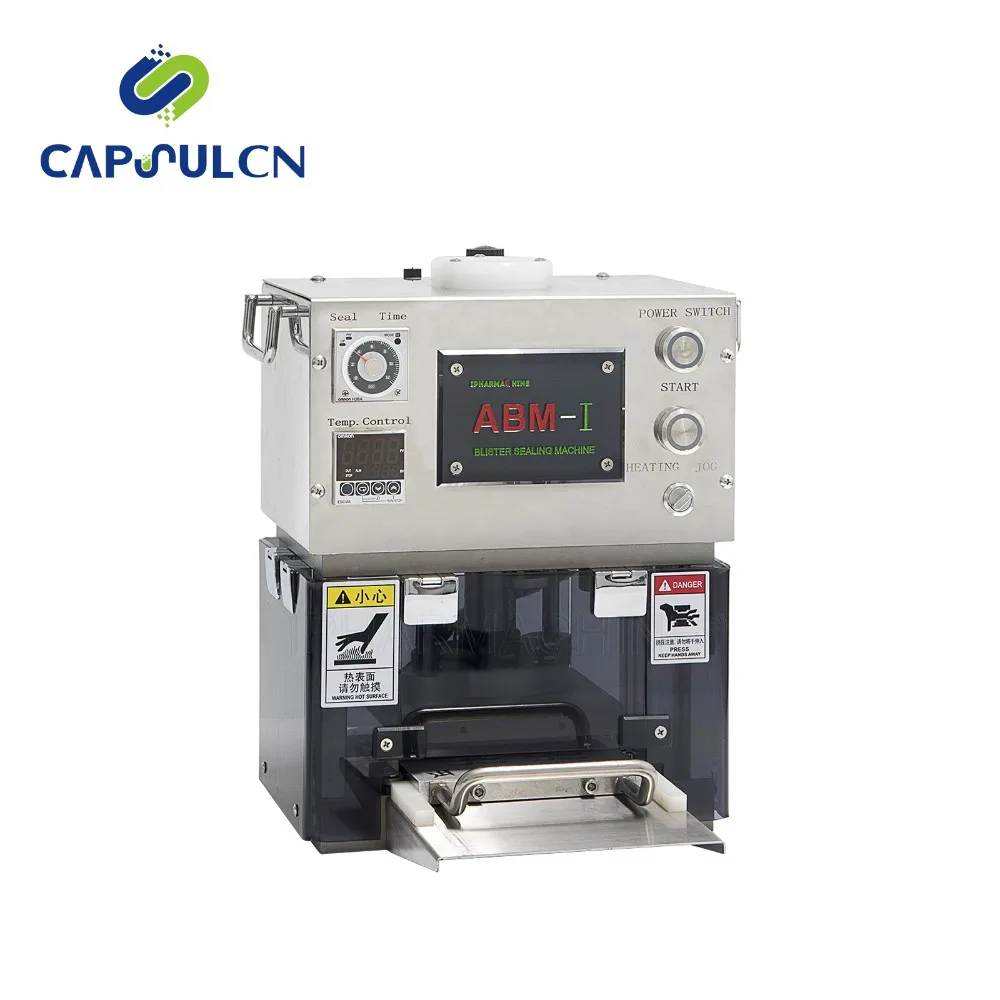

ABM-I Manual Blister Packing Machine

LVS-C100 Capsule Polishing Machine

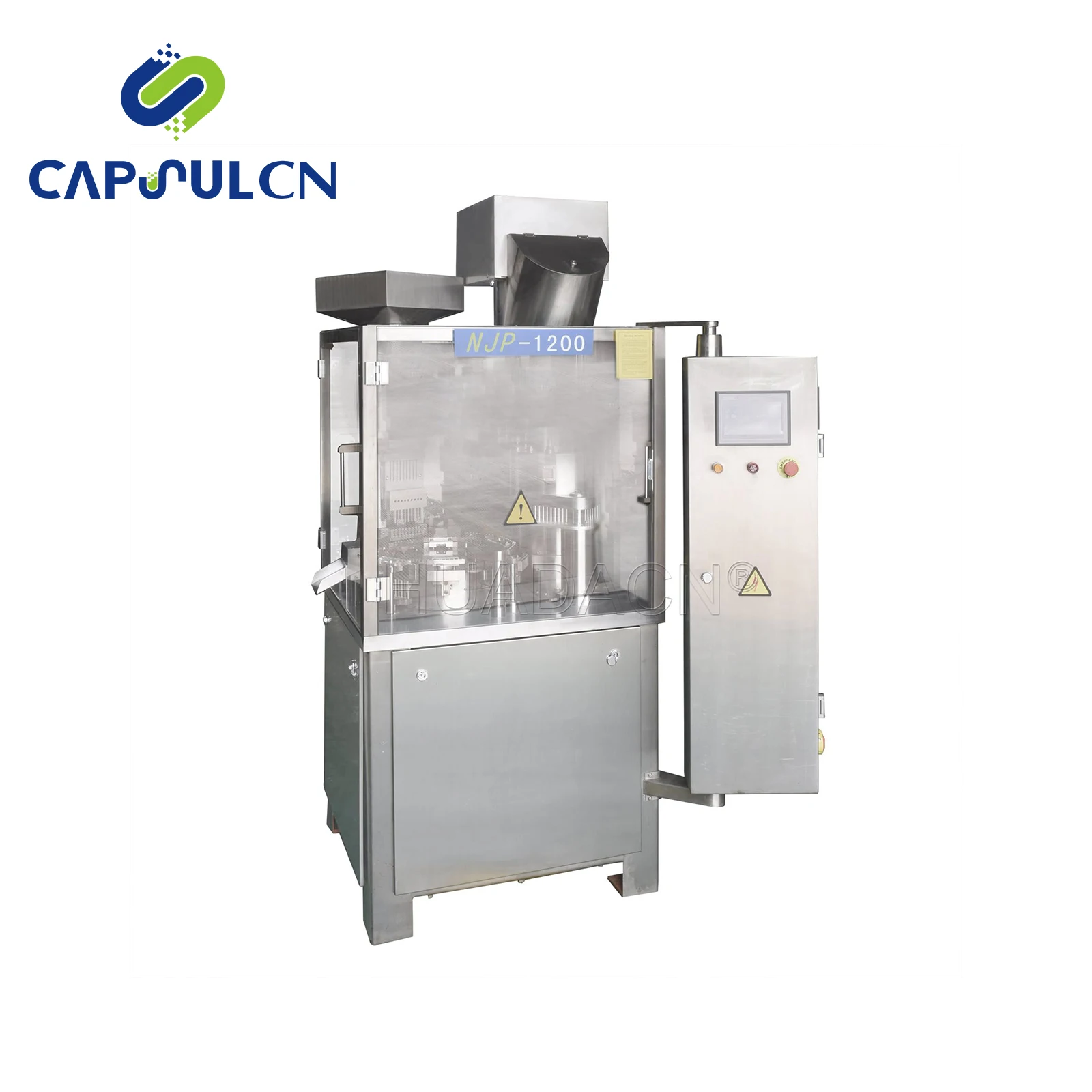

NJP-1200 Capsule Filling Machine

V-100 Dry Powder Mixer

CDR-5 Capsule Counting Machine

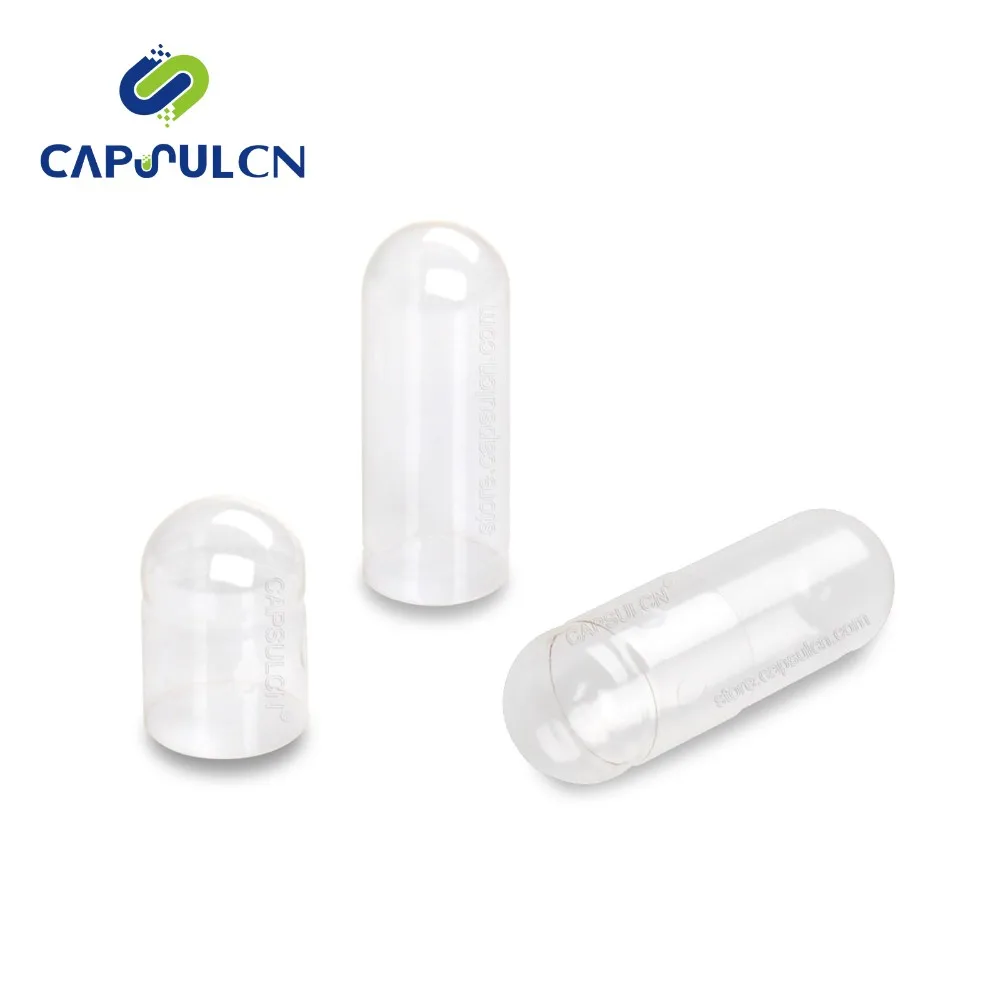

Best Pullulan Vegetarian Capsule
