LCD size: | 47 x 104mm | brand: | neutral |
power supply: | AC100~240VAC | product name: | CO2 Controllers and Monitors |
Customization support: | OEM production | place of origin; place of origin: | China |
Operating conditions: | 0~50°C , 5~95% RH (avoid condensation) | Measuring range: | 0-5000ppm |
Gross weight per piece: | 1.400 kg | type: | controller |
accuracy: | CO2 below 3000ppm ±50ppm or ±5% of reading | Warranty: | 1 year |
Storage status: | -20~ 60°C, 5~95%RH (avoid condensation) | Single package size: | 25X19X12 cm |
model: | 7530GE_US/EU/UK | Sales unit: | single product |
Warm up time: | 30 seconds | Resolution: | 1ppm (0-1000ppm) |
Packaging Details: | Standard Factory Packing | Sensor cable length: | 4.5 meters |
Product Description

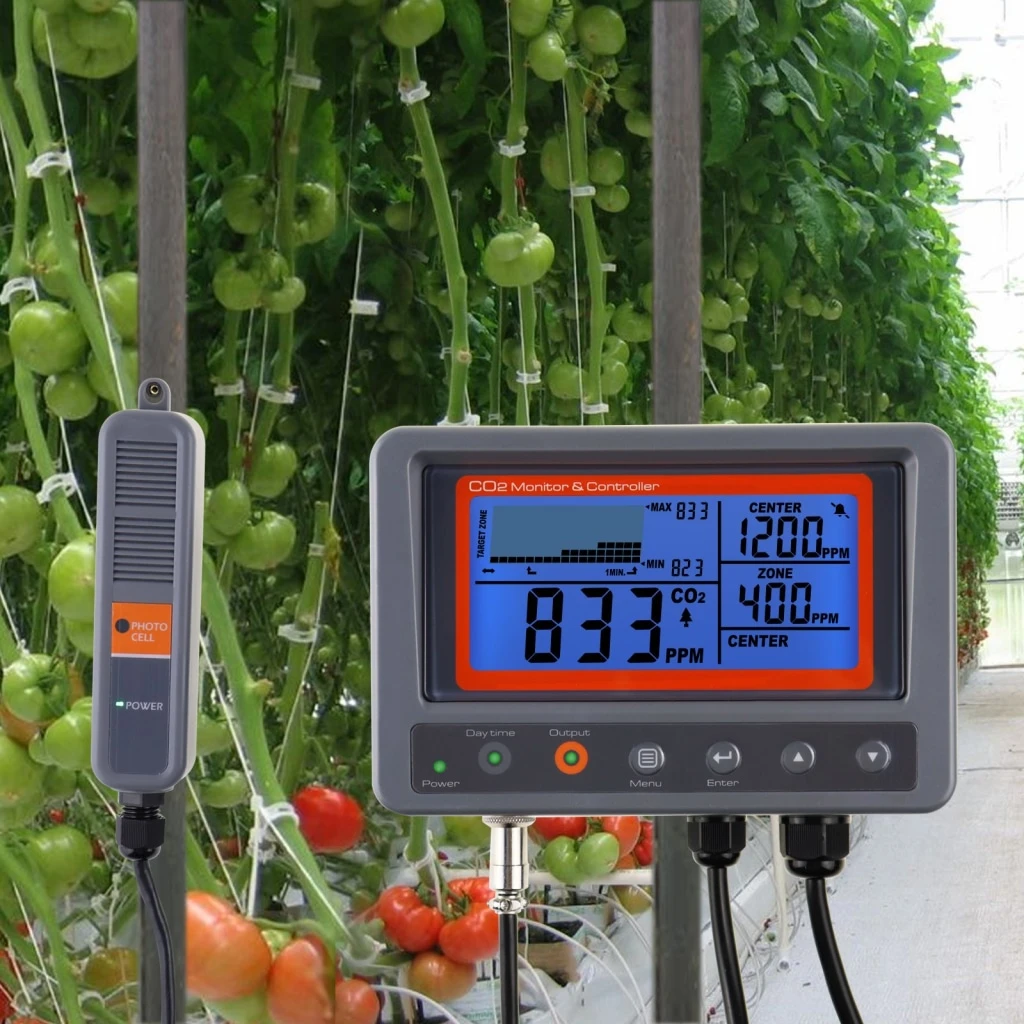

The 7530 Wall Mount CO2 Controller has an external CO2 sensing probe to help measure CO2 levels in enclosed spaces such as greenhouses.
You can use it for CO2 monitoring in indoor air quality and CO2 measurements in greenhouses. It can also be used and operated in other work spaces such as offices, hospitals, schools, stations, residences, commercial buildings, greenhouses or home use.

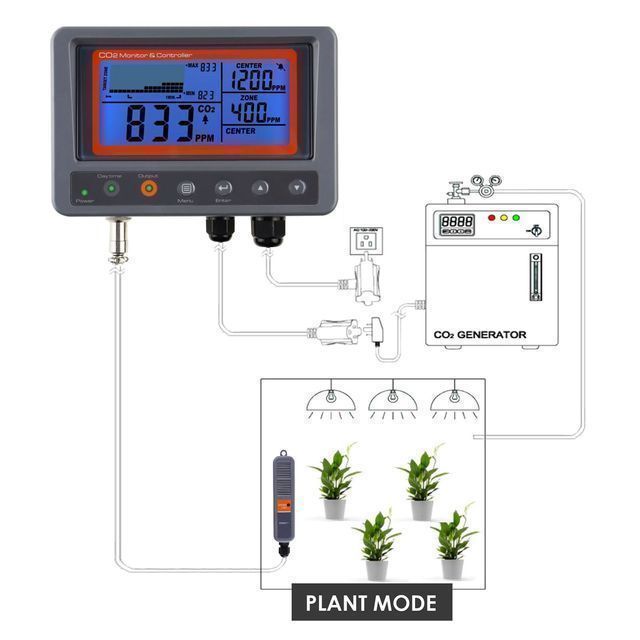

You can also use it to easily control other connected instruments such as CO2 generators or ventilation fans with two modes (plant or human mode) to cover the control of low or high CO2 concentrations.
The 7530 gives you an easy and affordable way to control and monitor CO2 levels in greenhouses, homes, hydroponics, mushroom farms, commercial buildings and more.
* A 3kA@300VAC fuse is installed in the meter to avoid power overload damage
Specification
* Measuring range: 0~5000ppm
*Resolution: 1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
* Accuracy:
* CO2 below 3000ppm ±50ppm or ±5% of reading, whichever is greater
* CO2 above 3000ppm ±7% of reading
* Warm-up time: 30 seconds
* Response time CO2:
* 63% of step changes < 2 minutes or
* 90% step change <4.6 minutes
* LCD screen size: 47 x 104mm
* Meter size: 158 x 106 x 50 mm
* Sensor size: 124 x 33 x 26 mm
* Operating conditions: 0~50°C , 5~95% RH (avoid condensation)
* Storage conditions: -20~60°C, 5~95%RH (avoid condensation)
* Power supply: AC100~240VAC
*Knapsack socket load 5A@250VAC; 10A@120VAC
