Supply capacity: | 500 sets per month | hole: | Gas Analyzer |
Origin: | Seoul, Korea | Automobile exhaust gas analyzer: | KEG-500 |
type: | Automotive Gas Analyzer | port: | incheon or busan |
Warranty: | 1 year | payment terms: | L/C, Western Union, T/T |
brand: | Conn | Packaging Details: | export carton |
Customization support: | OEM production | Package preview: | |
Certification: | International Electrotechnical Commission | model: | KEG-500 |

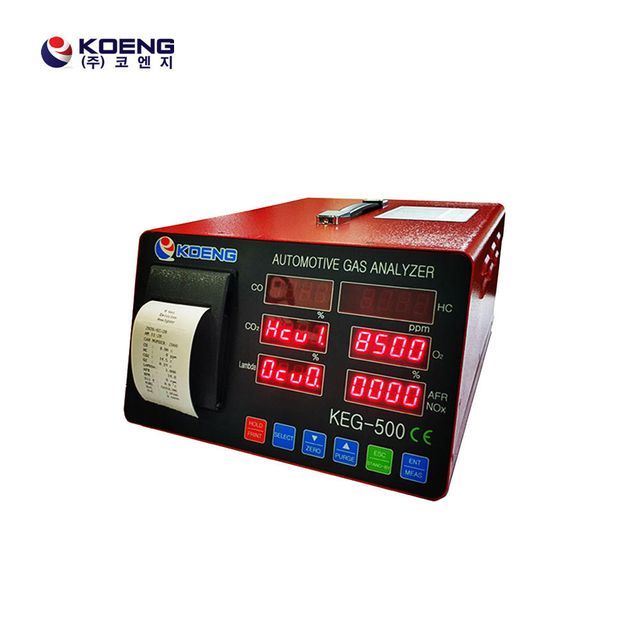

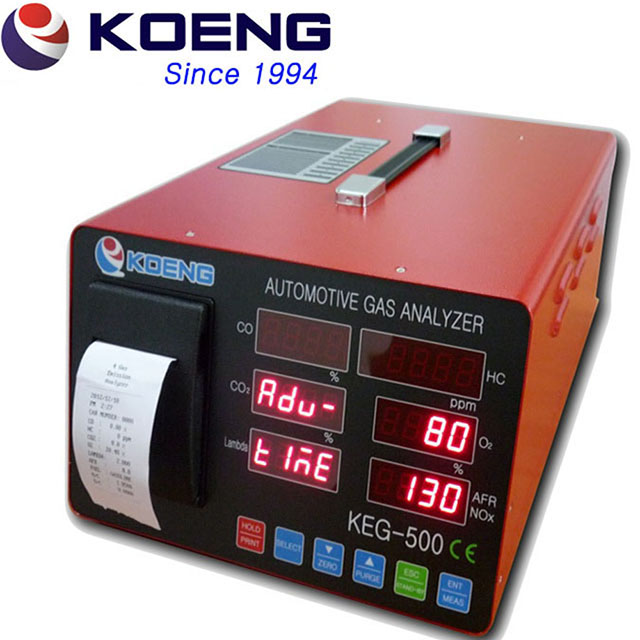

Portable Automobile Exhaust Gas Analyzer. KEG-500 (4 gas/5 gas)
The analyzer is a device that measures the concentration of automobile exhaust emissions, and can diagnose the state of the car and perform preventive maintenance, thereby providing the function of preventing air pollution in advance.
use and use
Measurement items: CO (carbon monoxide), HC (hexane), CO2 (carbon dioxide), O2 (oxygen), Lambda (air excess rate), AFT, NOX (optional)
Model |
KEG-200(2gas) / KEG-500(4gas/5gas) |
|||
measuring gas |
CO, HC, CO2, O2, Lamda (air excess rate), AFR, NOX (5gas) |
|||
sensor theory |
Carbon monoxide, hydrocarbons, carbon dioxide, non-dispersive infrared analysis (NDIR) |
|||
carbon monoxide |
hydrocarbon |
carbon dioxide |
||
Measuring range |
0.00 ~ 10.0% |
0 ~ 9999ppm |
0.0 ~ 20.0% |
|
solve |
0.01% |
1 ppm |
0.1% |
|
oxygen |
lambda |
AFR |
Nitrogen oxides |
|
Measuring range |
0.00 ~ 25.00% |
0 ~ 2.000 |
0.0~99.0 |
0 ~ 5,000ppm |
solve |
0.01% |
0.001 |
0.1 |
1ppm |
exhibit |
4-digit 7-segment LED |
|||
repetition rate |
Less than 2% of full scale |
|||
Response time |
within 10 seconds |
|||
Preheat time |
about 2~8 minutes |
|||
flow rate |
4 ~ 6 L/min |
|||
strength |
110V/ 220V±10%, 50/60Hz |
|||
energy consumption |
about 50W |
|||
Operating temperature |
0 ~ 40ºC |
|||
aspect |
420(W) x 298(D) x 180(H)mm |
|||
Package Size |
530(W)×400(D)×350(H) mm |
|||
Weight (net/gross) |
6.9 kg / 12.5 kg |
|||

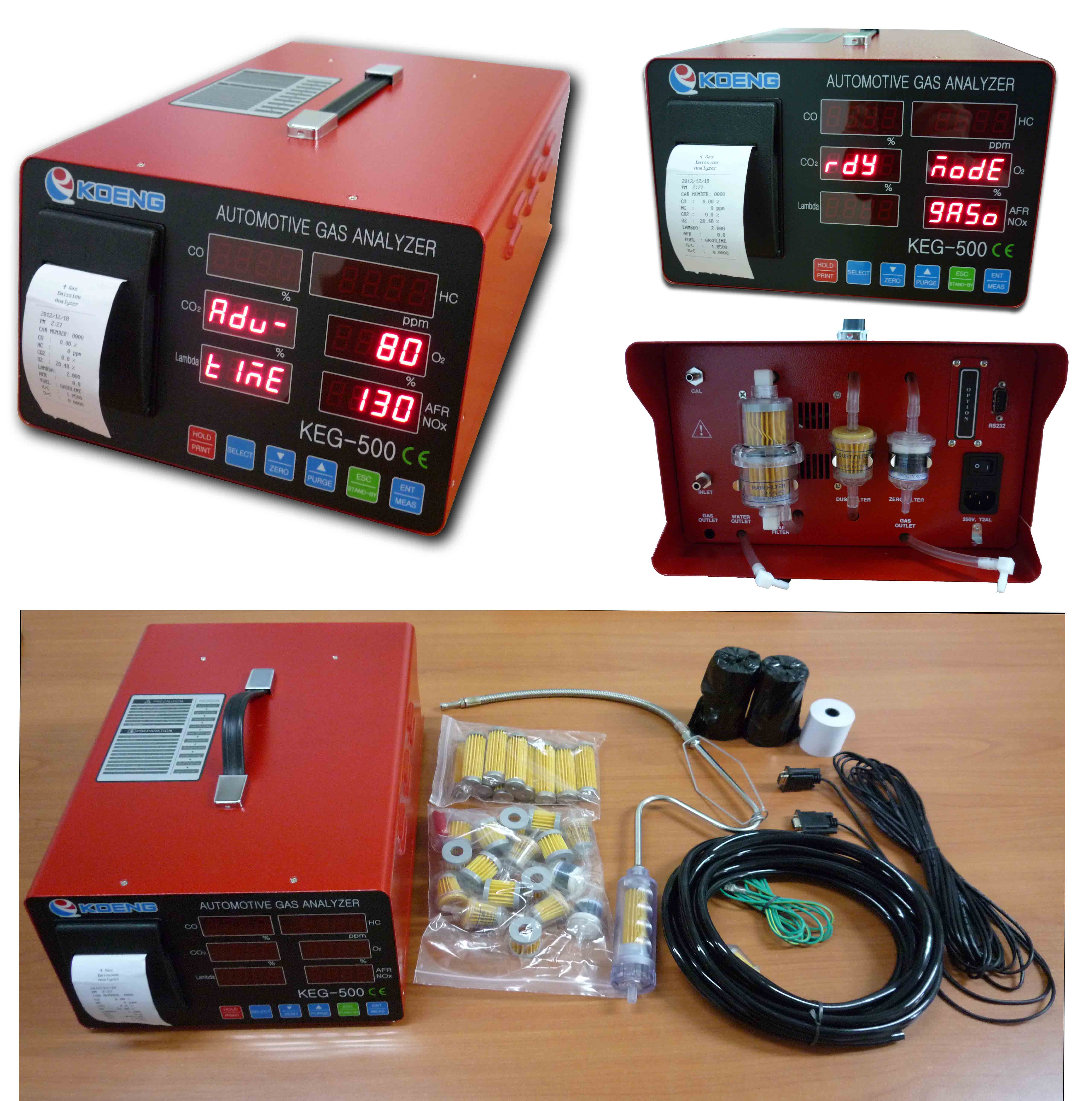

Standard accessories (KEG-500) |
Probe, probe hose, fuse, leak test cap, spare filter, power cord, RS232, built-in printer, printing paper, communication cable |
|||
options |
speed and oil temperature. meter KEG-200 built-in printer |
