Oxygen Analyzer Online O2 Gas Oxygen Analyzer CI-PC84

Supplier: Beijing Cape Golden Gas System Company Ltd.
Region: Beijing, China
Contact: Ms Ling YU
Price: $459.00 / 1 - 4 sets
$450.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Customization support:	Processing	type:	3D ion current
Sample gas temperature:	0-45℃	Install:	Dial installation
Package preview:		Packaging details:	carton
application:	Non-hazardous general applications	Measuring range:	10-99.99% oxygen
port:	Tianjin	Supply capacity:	300 sets per month
Stablize:	≤±0.5% full scale	Measurement mode:	online
in principle:	3D ion current	measurement accuracy:	≤±1% full scale
Response time:	T90<15s at 25℃	Place of origin:	China
Sample gas flow:	400~600ml/min

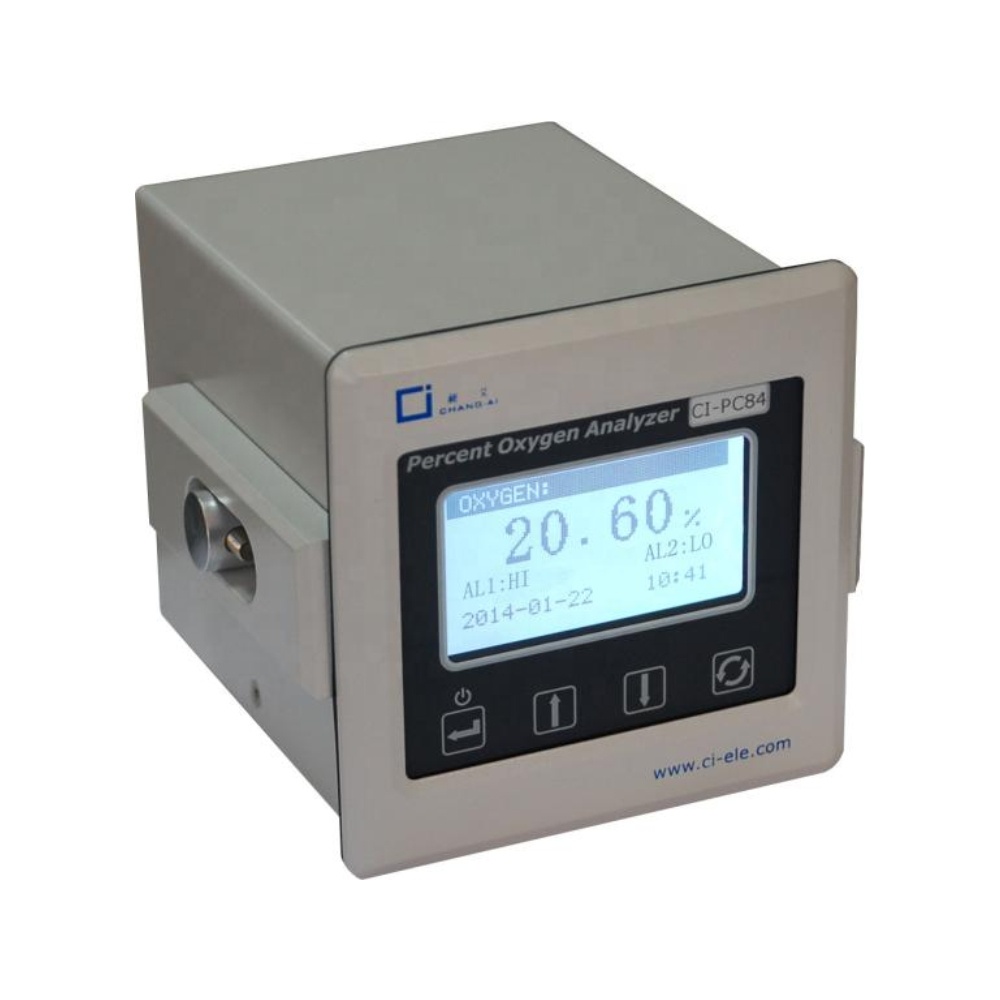

Oxygen Analyzer Online O2 Gas Oxygen Analyzer

CI-PC84

CI-PC84 purityoxygen analyzerIt uses the principle of ion flow,oxygen analyzerOxygen purity measurement range is 10-99.99%.

Product Description

Specification

thing	value
Name	oxygen analyzer
Model	CI-PC84
Warranty	1 year
type	3D ion current
Certification	CE
Custom support	Processing
birthplace	China
	Beijing
brand	golden corner
model	CI-PC84
Measuring range	10-99.99% oxygen
in principle	3D ion current
Measurement mode	online
Install	Dial installation
application	Non-hazardous general applications
measurement accuracy	≤±1% full scale
Stablize	≤±0.5% full scale
Response time	T90<15s at 25℃
Sample gas temperature	0-45℃
Sample gas flow	400~600ml/min
Sample gas pressure	35-210KPa
power supply	AC85~264V, power consumption less than 10VA
Signal output	4-20mA DC isolation, 0-1V and 0-10V switching
Alarm contact	2-way SPST alarm
display resolution	0.01%
communicate	RS232 standard (RS485 optional)
Analyzer size	100 (width)100 (height)110 (depth) mm

Technical features

1. 240×128 LCD displays oxygen concentration and other settings;
2. Isolated 4-20mA signal output, 0-1V, 0-10V optional;
3. It is easy to replace the sensor;
4. Standard RS232 two-way communication port;
5. Two-way single-pole single-throw alarm;
6. Automatically store data at certain intervals.oxygen analyzerBrowse data at any time.

application

1. Air separation
2. PSA oxygen concentrator
3. Medical oxygen
4. Petrochemical industry
5. Oxygen purity detection in other inert gas mixtures
