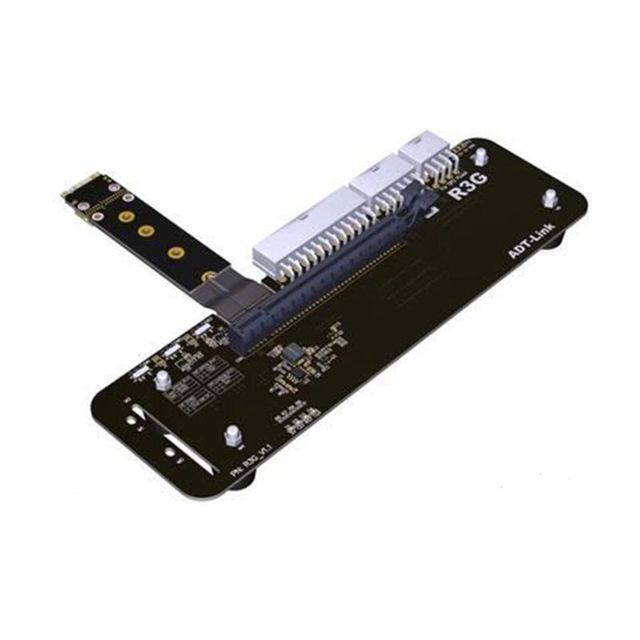

M.2 Key M External Graphics Card Holder with PCIe3.0 x4 R43SG/R43SG-TU Riser 32Gbs for ITX STX NUC VEGA64 GTX1080ti
-
Supplier: Shenzhen SHCHV Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Tiger Wang -
Price: $36.90 /piece -
Min. Order: 1 piece
Product details
| payment terms: | L/C, Western Union, T/T | type: | expanding board |
| model: | L0143 | usage: | For ITX STX NUC VEGA64 GTX1080ti |
| brand: | SHCHV | Health status: | 100% brand new |
| Product Category: | expanding board | Model: | R43SG/R43SG-TU |
| pack: | Yes | describe: | M.2 key M external graphics card |
| place of origin; place of origin: | Guangdong, China | compatible: | For ITX STX NUC VEGA64 GTX1080ti |
Product Description
caution:
For the 70cm cable, we cannot guarantee the speed of PCIE 3.0, because the length of the cable will affect the signal. Please consider before buying.
For the 70cm cable, we cannot guarantee the speed of PCIE 3.0, because the length of the cable will affect the signal. Please consider before buying.
The length can be customized, and the price of cables of different lengths is different, please contact us if necessary!
Brand: ADT
Product model: R3G series products
Product name: graphics card external adapter board extension cable
Wire length: 25cm, 50cm (other lengths can be customized in batches)
Graphics card compatibility: support new graphics cards shipped after 2015 (old graphics cards shipped before 2014 are not supported)
supported)
Motherboard compatibility: ITX/STX motherboard, NUC, only supports M.2 NVMe interface, does not support M.2 SATA interface, does not support
Does not support M.2 WiFi interface, does not support M.2 WWAN interface
Power supply description: The supported power supply model is DELL 12V/18A/220W power supply, or standard ATX power supply.
Please prepare or purchase a power supply separately.
Bandwidth speed: PCIe3.0x4 (32G/s)
Model description: R43SG (M.2 NVMe interface)
Brand: ADT
Product model: R3G series products
Product name: graphics card external adapter board extension cable
Wire length: 25cm, 50cm (other lengths can be customized in batches)
Graphics card compatibility: support new graphics cards shipped after 2015 (old graphics cards shipped before 2014 are not supported)
supported)
Motherboard compatibility: ITX/STX motherboard, NUC, only supports M.2 NVMe interface, does not support M.2 SATA interface, does not support
Does not support M.2 WiFi interface, does not support M.2 WWAN interface
Power supply description: The supported power supply model is DELL 12V/18A/220W power supply, or standard ATX power supply.
Please prepare or purchase a power supply separately.
Bandwidth speed: PCIe3.0x4 (32G/s)
Model description: R43SG (M.2 NVMe interface)
notes:
1. We strongly recommend using it for PC desktops, not laptops. Laptops have a low success rate due to incompatibilities,
Especially HP, Dell, Lenovo)
2. It is strongly recommended for professionals to use. This item does not include a user manual, we do not support technical support, please take a photo
Take this into consideration before placing an order.
3. If the BIOS cannot be recognized, please go to the mainboard official website to update the BIOS to the latest version.
4. System support: only supports Win10 1909 and later versions.
1. We strongly recommend using it for PC desktops, not laptops. Laptops have a low success rate due to incompatibilities,
Especially HP, Dell, Lenovo)
2. It is strongly recommended for professionals to use. This item does not include a user manual, we do not support technical support, please take a photo
Take this into consideration before placing an order.
3. If the BIOS cannot be recognized, please go to the mainboard official website to update the BIOS to the latest version.
4. System support: only supports Win10 1909 and later versions.
EMI shielding using conductive polymers
The extenders are designed with the latest EMI shielding materials in a five-conductor flat cable. This technology allows each cable to be completely covered by an EMI shield of conductive polymer to prevent incoming or outgoing emissions of electromagnetic frequencies, minimizing interference and performance degradation, and reducing the weight of the extender.
The extenders are designed with the latest EMI shielding materials in a five-conductor flat cable. This technology allows each cable to be completely covered by an EMI shield of conductive polymer to prevent incoming or outgoing emissions of electromagnetic frequencies, minimizing interference and performance degradation, and reducing the weight of the extender.
Cable Length Notes:
R3G series cable length is available in 25cm or 50cm, the following is the cable length of 50cm. Refer to the blue dimension in the figure below.
Power Description:
The supporting power supply is DELL 8-pin 12V/18A/220W, or a standard PSU power supply. The power supply needs to be prepared by the buyer or purchased separately.
R3G series cable length is available in 25cm or 50cm, the following is the cable length of 50cm. Refer to the blue dimension in the figure below.
Power Description:
The supporting power supply is DELL 8-pin 12V/18A/220W, or a standard PSU power supply. The power supply needs to be prepared by the buyer or purchased separately.
installation steps
1. Install the hexagonal copper pillar, and insert the graphics card into the PCIe x16 slot. Tighten the screws so that
The graphics card will not shake or fall.
2. Install the ATX power supply or DELL power supply, including the power cable of the graphics card. After installation, the DELL power supply will light up in orange.
3. You can plug in the M.2 cable while the computer is off. After booting, the ATX power supply will automatically start the fan to rotate. If using a DELL power supply, the green light will be on. At this time, the R3G board will light up two green lights. The system will automatically recognize the card. Please install the graphics card driver. Installing the driver may prompt the computer to restart.
4. Done.
The graphics card will not shake or fall.
2. Install the ATX power supply or DELL power supply, including the power cable of the graphics card. After installation, the DELL power supply will light up in orange.
3. You can plug in the M.2 cable while the computer is off. After booting, the ATX power supply will automatically start the fan to rotate. If using a DELL power supply, the green light will be on. At this time, the R3G board will light up two green lights. The system will automatically recognize the card. Please install the graphics card driver. Installing the driver may prompt the computer to restart.
4. Done.
