EXP GDC External Laptop Graphics Docking Station Video Card Notebook Docking Station with NGFF M.2 AE Key

EXP GDC is an external graphics card device for notebooks; it can help you use an external independent high-performance graphics card, which can be used to connect to any PCI-E interface device to improve the performance of the notebook computer, allowing you to play games that require high-performance graphics cards big game.

Product Type: Laptop PCI-E Extender Product Positioning: Laptop Performance Upgrade. (PS: Win XP, Win8/8.1 are only compatible with laptops with external screens) Support PCI-E X16, the actual X1 mode (according to different laptops) configuration can be upgraded to X2 mode) Operating system: Windows XP/7/8 /8.1, Linux, etc. Input interface: Mini PCI-E interface Power input/output interface: support external DELL power adapter or ATX power supply; 8P interface: maximum 220W DC interface: 5.5x 2.1mm, maximum 150W, support soft switch function. (ATX line has no power limit) Extended support: PCI-E X16: DMI GT/s (X1) 5 CTD switch (delay): 6S PTD switch (delay): 7S, 14S USB: 1.0/1.1/2.0 (warm Note: Win XP, Win8/8.1 are only compatible with laptops with external screens) Material: PCB+Asian chocolate Size: PCI-E adapter size: 14.4×3.7×2.5cm/5.67×1.46×0.98inin (approx.) ATX PSU power cord Length: 15.3cm/6.02in (approx.)

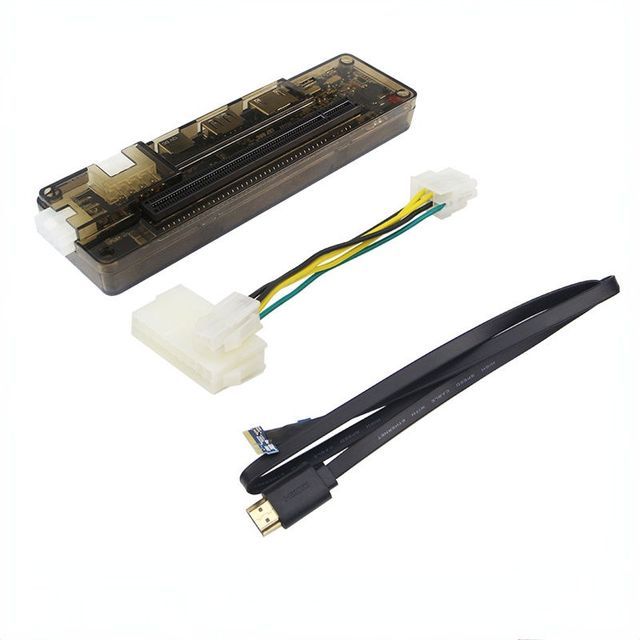

EXP GDC laptop external independent graphics card base with expresscard data cable and 6-pin/8-pin power cable. Dual TD compatible switch (solve hardware conflicts). High-quality imported electronic components, multi-level anti-interference and isolation protection circuit. Multi-power automatic switching (support soft start). Enhanced MINI PCI-E data cable, 26pin interface, supports 54-type and 34-type expresscard interface. With 6pin interface, used to connect graphics card power supply; 8pin interface, used to connect EXP GDC power supply. It is used in industrial applications such as engineering measurement, data acquisition, server debugging, GPU computing, etc. Of course, most of them are still used to connect to graphics cards to play games.

EXP GDC is an external graphics card device for NOTEBOOK, and does not include a graphics card. If you are using your laptop monitor, make sure it has an Intel (R) HD graphics card connected above the GTS450 as an NVIDIA graphics card. Otherwise you need an external monitor.

This product does not support the following laptop models, please do not place an order for the following laptops:

1. Asus (N55SF, N75 ACPI, ASUS A53XI24 1SV-SL, K43SD, A73S, K53SD, X8dij, A43s, n55sl, k45dr) 2. Lenovo E530, L430, E43, U410, E49, K49, G50-75M (new ) ) 3. HP H533OM, 6910, 5310M 4. Hasee ui45, EVI4 5. Haier T68 6. ​​Acer 4739z Acer E1-451G 7. Samsung 450

For Lenovo W530/T520/W520/X220/X220/TZ570/T420/Y460/Y560/T410/E420/X201/X201s Edge/ /T410s/T400/T510/X201T/X200/W500/T61p/X61/T61/T60 /T520/T420S//y470/T420I/Y480/G480/k580s/E520/Y580/G500/E46A/Y530/G510/Y400/G500/V460/Y560P/y480n/y480/E420/K29/B470/Z470/L40K/ SL4021/SL4021 /E420S/G470/G450/z465/Y500/V370/G430/Z370/Y485/Y410P/v1000/s410p/y471a/s230u/V570/e420s/Z500/V470/Y40 70/G710y 40p/ S4000/SR1000/SR1000 /B5400/405S/A8/Y50/Z501/Z480/Z580/U310/K46A/Z380 dell E6520VOSTRO/3450/XPS15/L502STUDIO/1557/e6220/e64220/e6420/e43420ps 1 16430psp. 1340Vostro 1500 1440Vostro v130XPS M1530D830M1330Studio 1555Insp 1520Vostro 1310E15051545E6520E6520E6220E5410E4310E641014RM12104600MD630E64206320N4120N50103421N3010772014R4728152014rd658N411014RD658inspiron15-3521e632074205537xps164​​515r7520767015R 45265547773014R 5420M6600752055374050vostro3300n3420L702X3542155815 75484z-5423 E6230 For Sony Z21VPC-Z11, VPC-Z13, VPC-Z12, VGN-FW45Z46GD, VGN-NS110eEA27ECVPCCA36ECEA47ECCB36ECNw35eEA200CS138Vgn-nw71fbSVT11138CCS, vpcs128ec, FW17Z45vpcea25fgvpcea18ec, VPCEB26FXVPCZ138GGsve14a28ccsPcg-71212tSVE 141 For HP 4530s /2560P/8460P/4330s/2540P/8440P/DV4-2000/2530P/2740P/6930P/6930P/2730P/HDX9000/ Pavilion DV4/DV9690en/CQ60/DV7126/7CLHDX16HDX18TTX22510PDV7-3020EDDV2000dv2416US6910PNC640021334530sHp8440p14 beatsG42DV51220TXN51108570PCQ35-219TXDV2804TXCQ45CQ40CQ42 285TX8560P2730p4321sDV7HP44318470P2570Penvy17j120usHP6450BHP 8470Pcq15-102tx/2570P/ 8460P For Fujitsu AH531/T731/S6420/T901/T5010/U9200/AH56/Gnh532 For Acer 5755G/3820TG/5920G/5620Z/5742G/6930/5620/1810TZ/5720G/1410 Ferrari One/47507G-7 5951G/E1-571G/V3-571G/V5-472G/4315/V5-471G/V3-772G/4738G/4745G/E5-511G/5552G for MSI CX623/CR720/A6200-021US/CR630/M610/GX640 /GE60 For Toshiba R840/A665/L305-S5921/L300/A505-6965/L300/L305-S5921/M332/M780/L700/L650-02B/L800 For Clevo M860T/UM570RU For Sager NP2096/NP8662/NP5793 For NEC Vers For ASUS F8SA/X42JR/X59SL/1015PEM/M60J/Y581/CX81/x55v/X450VB/X450JS/x450c/N61JV/x402ca/U24E/r400/P53SJ/n75sl/n75s/N61JQ/N56/n5k/k56d/n5/K5 K52DR/k45vs/K43SM/a55vd/K42JB/K40IP/K40IN/g73sw/F83se/A73S/A55VM/A53/a450j/A43X/A43s/a42j/k55vm/k43/SDG74S/XN43sl/n55sl/k55BC45/vm6/4/2kv3D/K X55XI237VD-SL/X550VC/N81/VG X751L/A53S/A53SM/a450jf for LG P300 for Samsung R780/NP300E4A/NP270E5J-K01CN/r428/rv420 for Condor A460-I7/K590C/5p5860P/4p58 460P/A550/k602c/K590S/K500DE400/K500C-i7 /D1/k660E/A460p-i7/K480N Tsinghua u49fK41H/A14RM0C Blue Sky p170em Haier 7g-2X5P Gigabyte p15f V2 Founder Yihe a600

1. List of recommended graphics cards: GTX650 GTX660 GTX670 GTX750 GTX760 GTX950 GTX960 GTX970 GTX980 GTX1060 GTX1070 GTX1080 There are other graphics cards that may also be used, but the compatibility and performance are not as good as the graphics cards in the list. So it is not recommended to buy. 2. GTX 1060 1070 1080 are compatible with EXP GDC, but the August 2016 driver (version 372.70) must be installed. And the GTX 1080 is the most powerful we recommend. 3. For GTX1030, GTX1050, GTX1050Ti, GTX1070Ti, GTX1080Ti technicians told us that these cards are new products, and the driver does not fully support this product.
