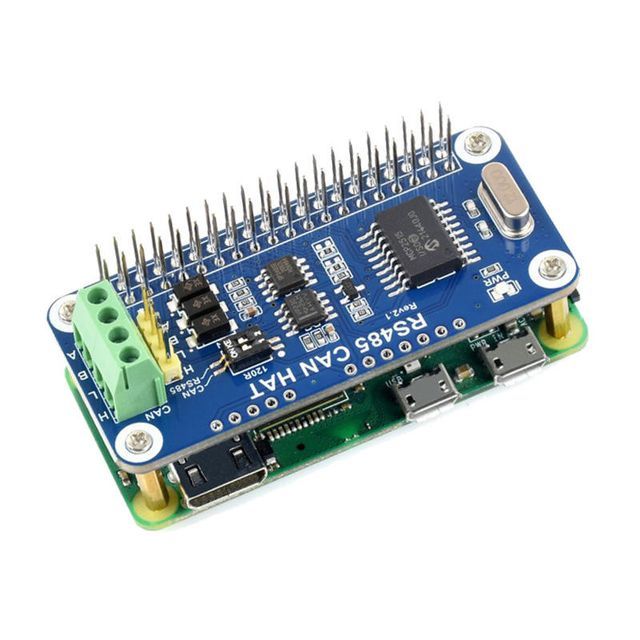

Raspberry Pi RS485 CAN HAT 3.3V MCP2515 SP3485 SPI interface enables Pi 4B/3B+/3B/0 stable long-distance communication

Supplier: Shenzhen SHCHV Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Tiger Wang
Price: $7.92 / 1 - 99 pieces
$7.32 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Place of origin:	Guangdong, China	model:	C3164
Sales unit:	Single product	compatible:	Raspberry Pi 4B/3B+/3B/0
CAN transceiver:	SN65HVD230	brand:	SCHHV
Accessory type:	expanding board	CAN controller:	MCP2515
Single piece packaging size:	10X18X12cm	type:	expanding board
485 transceiver:	SP3485	Output:	3.3V
describe:	RS485 CAN cap	Gross weight of single piece:	0.040kg
Health status:	100% brand new	usage:	Suitable for Raspberry Pi 4B 3B+ 3B Zero
Operating Voltage:	3.3V	Installation type:	-

RS485 CAN hat for Raspberry Pi

Allows stable long-distance communication between Raspberry Pi and other devices

Comes with online development resources and manuals

Function overview

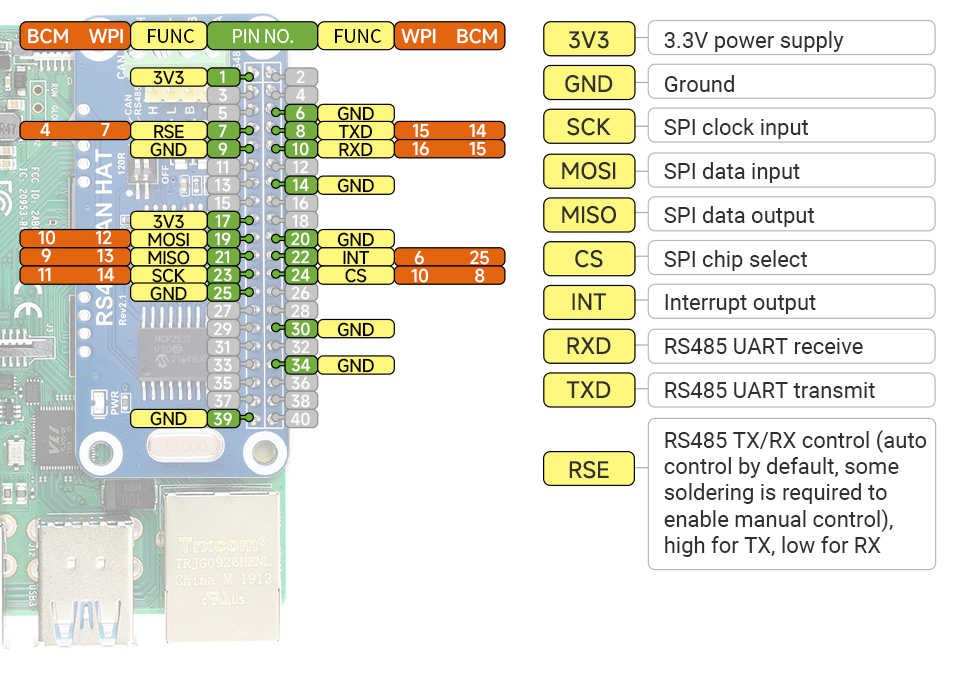

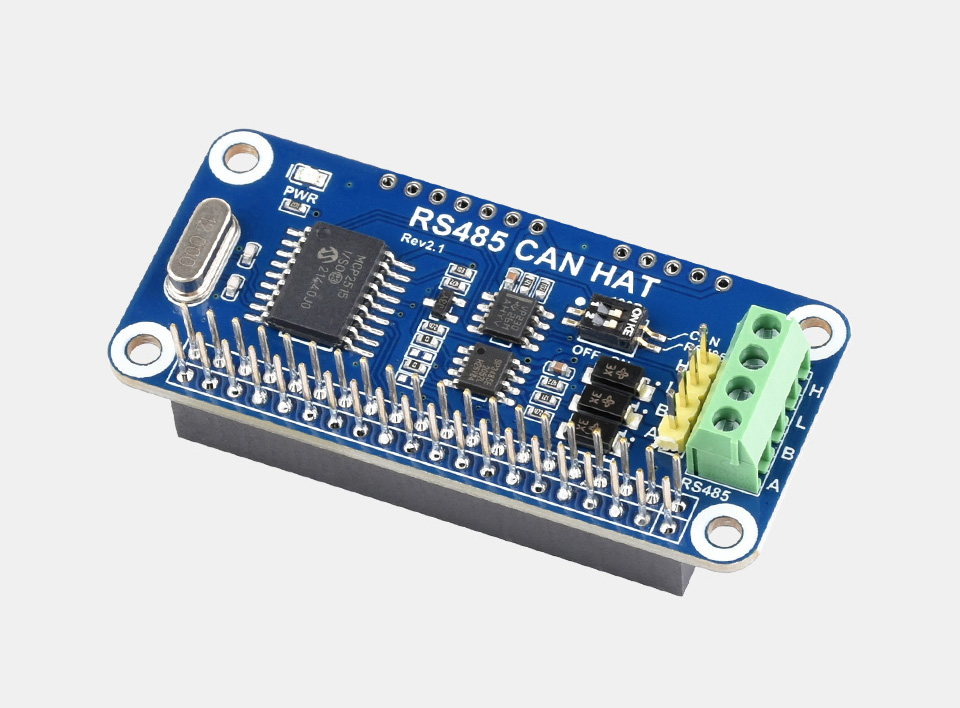

Standard Raspberry Pi 40PIN GPIO expansion header, supports Raspberry Pi series boards

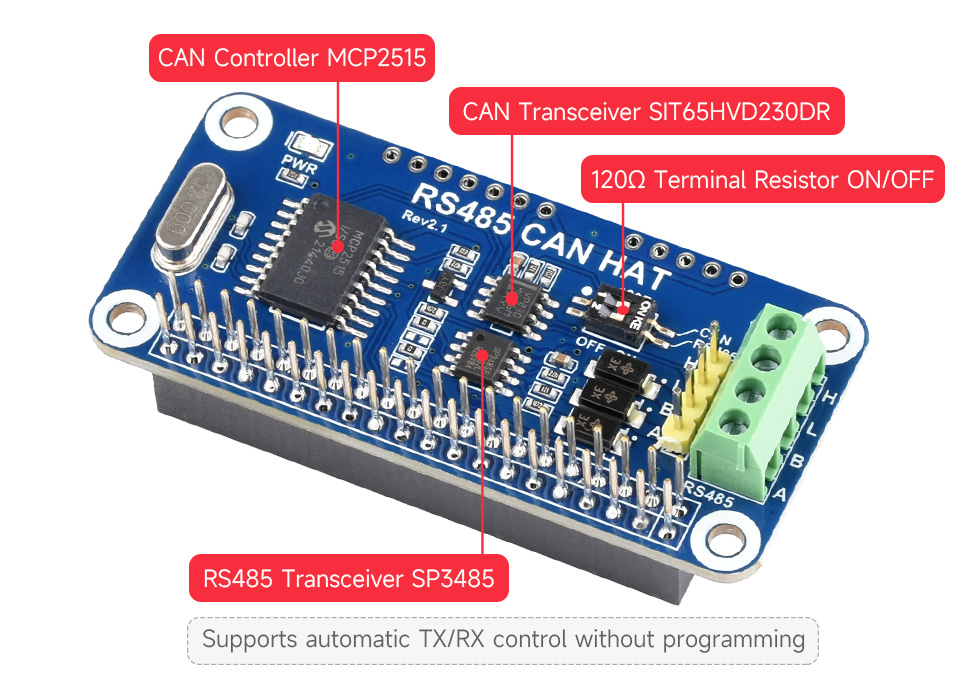

CAN functionality, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SIT65HVD230DR
RS485 function, controlled by UART, half-duplex communication, supports automatic TX/RX control, no programming required, on-board transceiver SP3485
Onboard 120Ω terminating resistor for RS485 and CAN interfaces, enabled via DIP switch

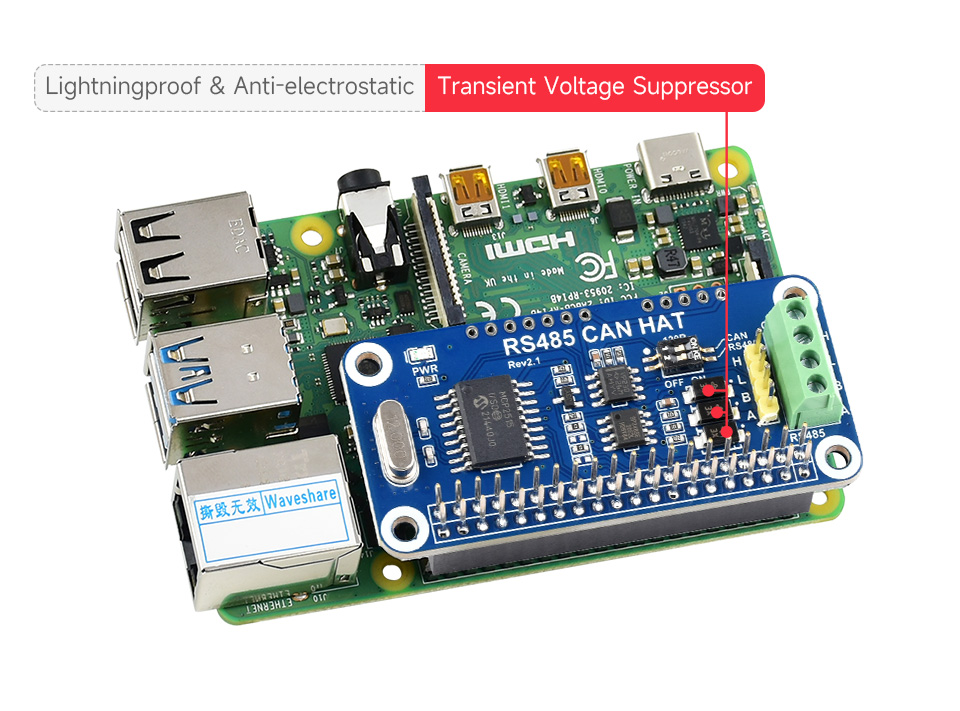

Onboard TVS (transient voltage suppressor), effectively suppresses surge voltage and transient peak voltage in the RS485 transceiver circuit, and is lightning and anti-static

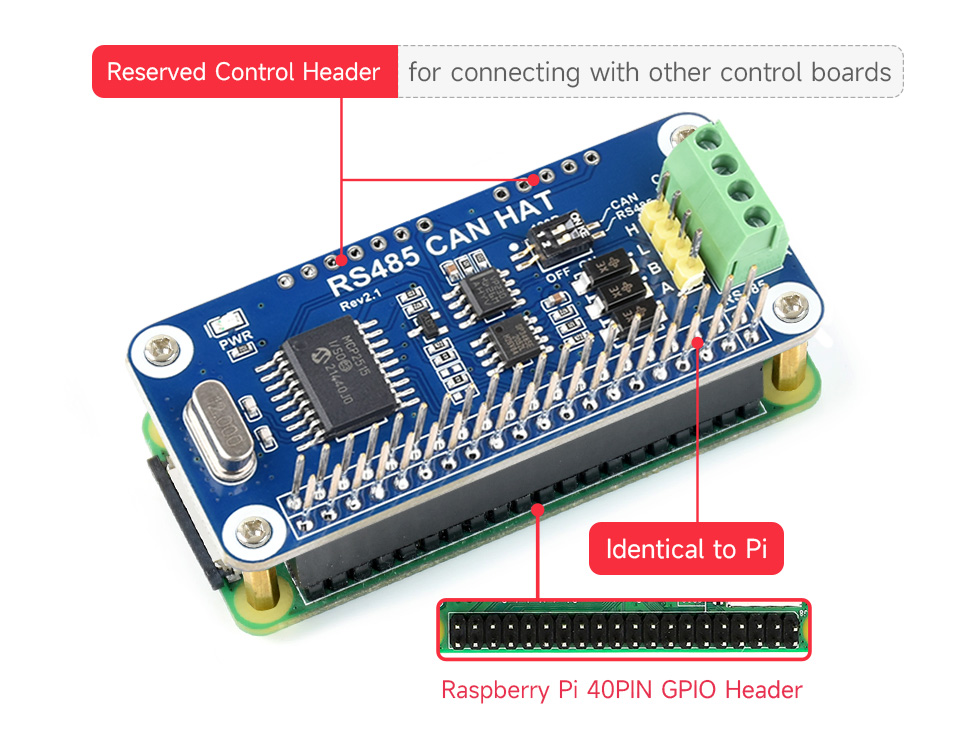

Reserved control head to allow use with other control boards
Comes with online development resources and manuals (examples in wiringPi/python)

Specification

CAN controller	MCP2515	Operating Voltage	3.3V
CAN transceiver	SIT65HVD230DR	Mounting hole size	3.0mm

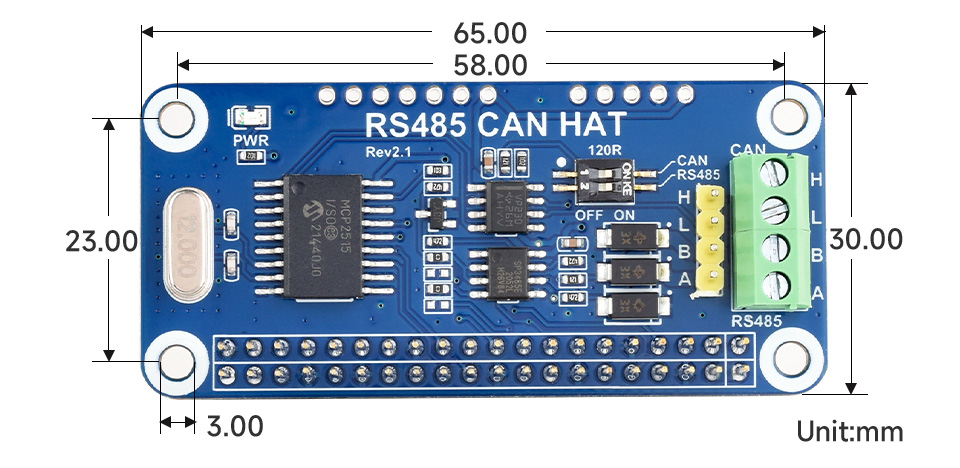

485 transceiver	SP3485	aspect	65×30mm

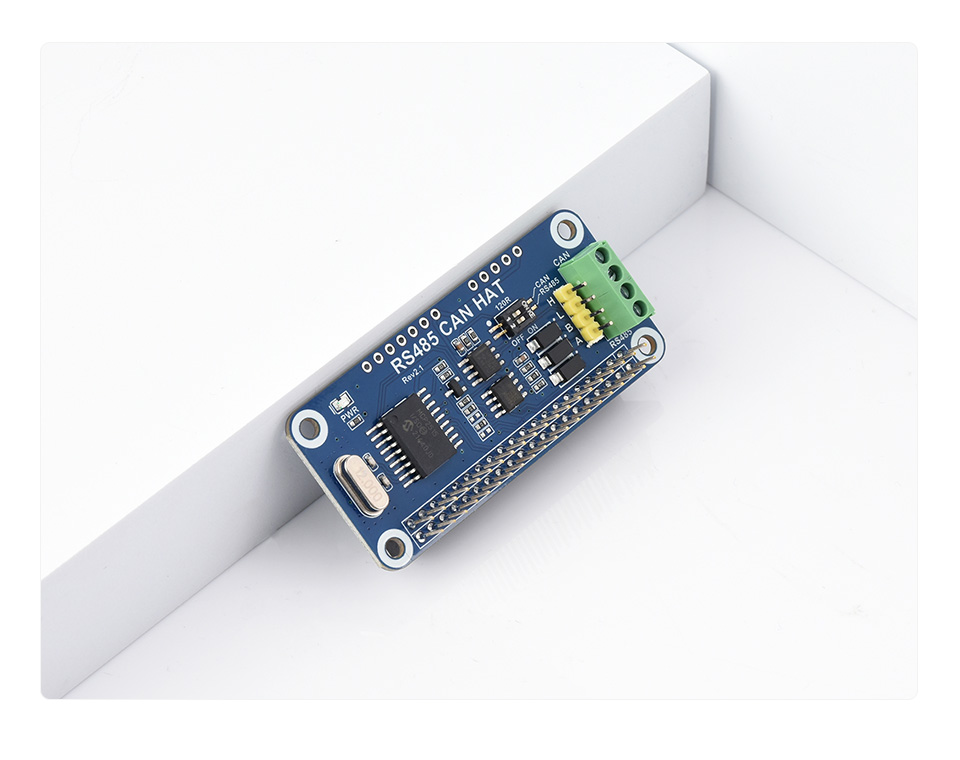

Specifically designed for Raspberry Pi series

Standard Raspberry Pi 40PIN GPIO connector, specially customized for Raspberry Pi series motherboards

Extended CAN and RS485 functionality

CAN: Onboard CAN controller MCP2515 via SPI interface with transceiver SIT65HVD230DR
RS485: control via UART, half-duplex communication, onboard transceiver SP3485
