Skid Steer Loader Rear Pound Attachment Agricultural Rear Drive High Quality Hydraulic Rear Pile Driver Hydraulic Breaker

Product details
Warranty:1 yearMarketing Type:New Products 2020
brand:CaseyPackage preview:
Name:fence post driverHealth status:new
Blow rate:500-900 times/minShowroom location:U.S.
Working weight:340-480KGCore component warranty:1 year
payment terms:L/C, Western Union, D/P, T/TImpact rate:400-900BPM
Video shipment inspection:ifDimensions (L*W*H):56.7 x 53.54 x 31.5
thing:skid steer rear driveMechanical test report:if
Packaging Details:Iron shelf and plywood, we will pack according to your requirements.Key words:hydraulic pile driver
Supply capacity:1000 pieces per monthport:Shanghai
weight:500 kgplace of origin; place of origin:Jiangsu, China
application:pile drillproduct name:rear drive hydraulic
Applicable industries:Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Farms, Restaurants, Home Use, Retail, Construction, Energy and MiningHose diameter:1/2
Unique selling point:High operating efficiencyOil flow:9.5-16 gal/min
Core components:Engines, bearings, gearboxes, motors, pressure vessels, gears, pumps
Specification
PD750-PZ
PD680-PZ
working weight
1100 lbs
working weight
1100 lbs
Energy
700 ft-lbs
Energy
700 ft-lbs
oil flow
9.5-16 gal/min
oil flow
9.5-16 gal/min
work pressure
1600-2000 psi
work pressure
1600-2000 psi
Chisel shaft diameter
2.9"
Chisel shaft diameter
2.7"
Blow rate
500-900 times/min
Blow rate
500-900 times/min
Dome Cup Inner Diameter
8"
Dome Cup Inner Diameter
8"
Hydraulic hose diameter
1/2"
Hydraulic hose diameter
1/2"
Package dimensions
56.7" × 53.54" × 31.5"
Package dimensions
56.69" × 49.61" × 31.5"
Shipping weight
1146.4 lbs
Shipping weight
1124.36 lbs
main features

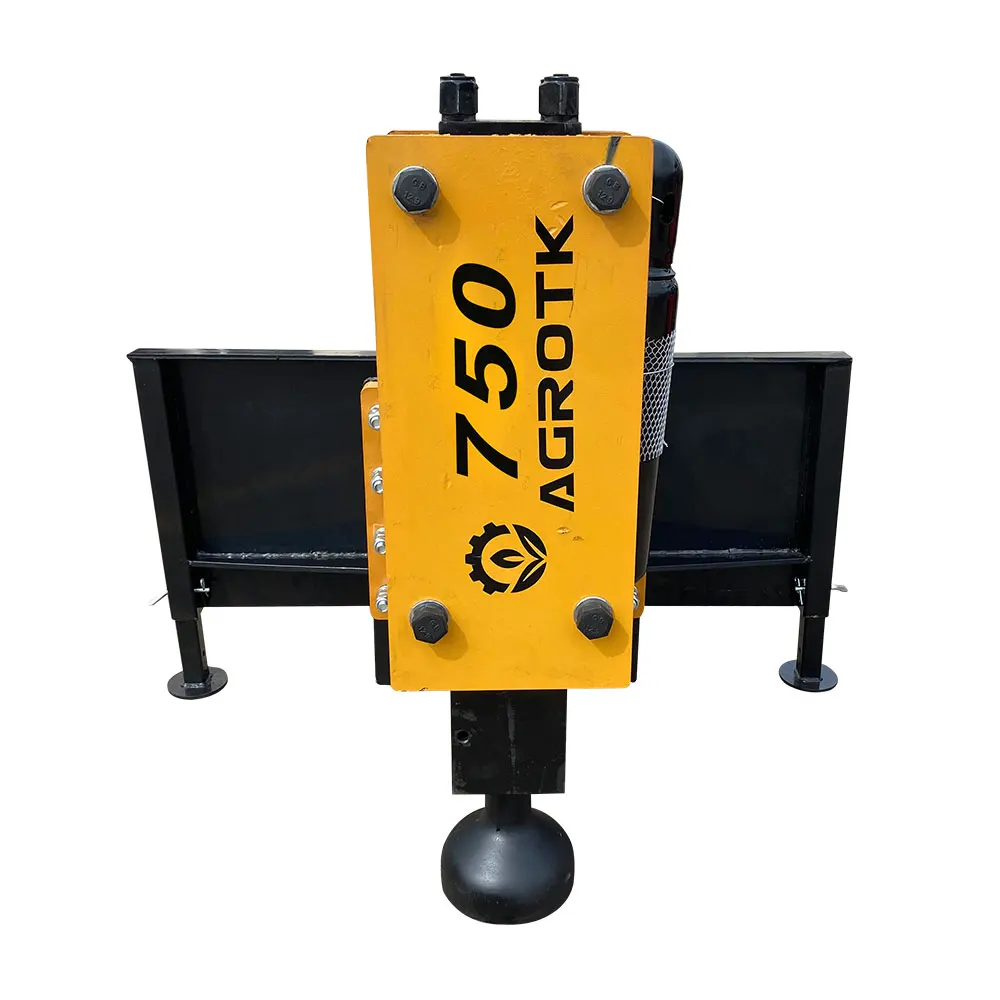

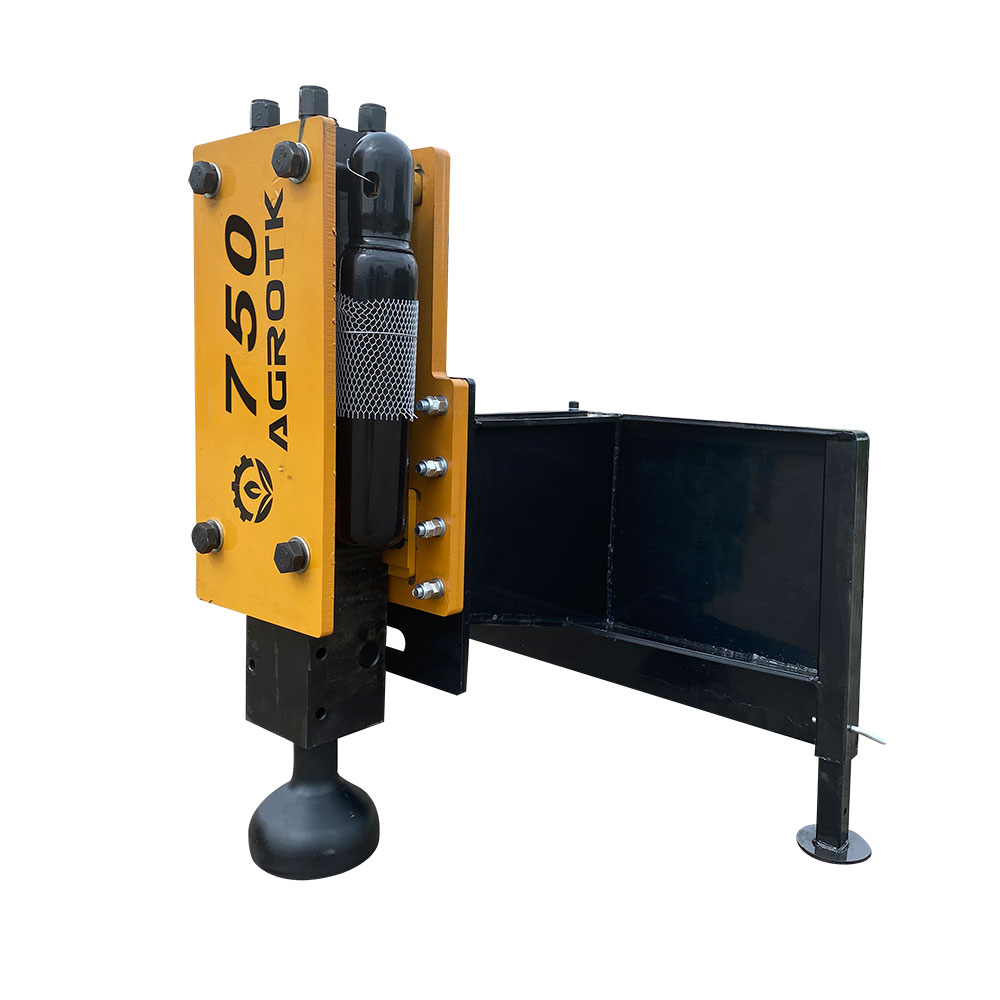

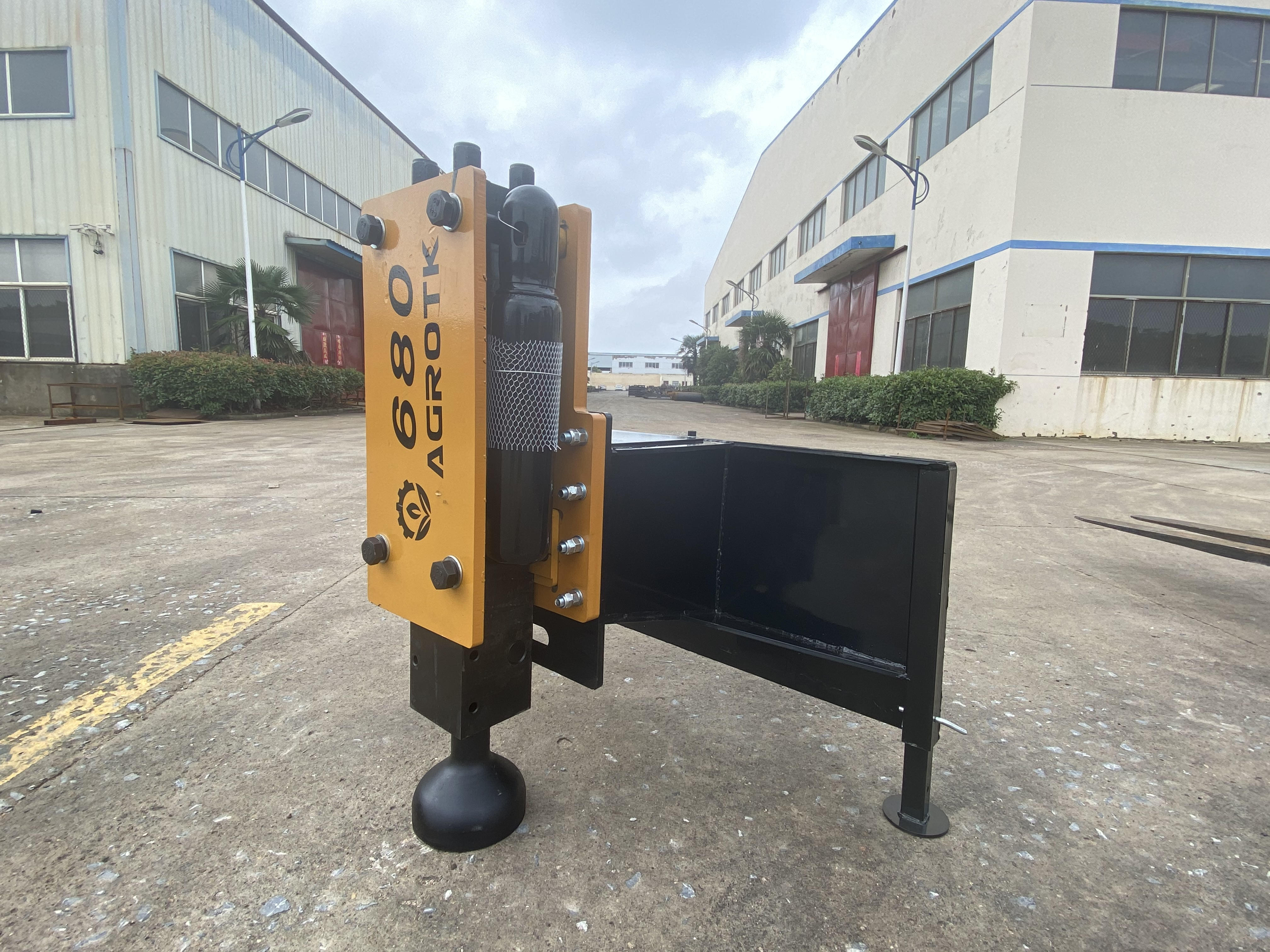

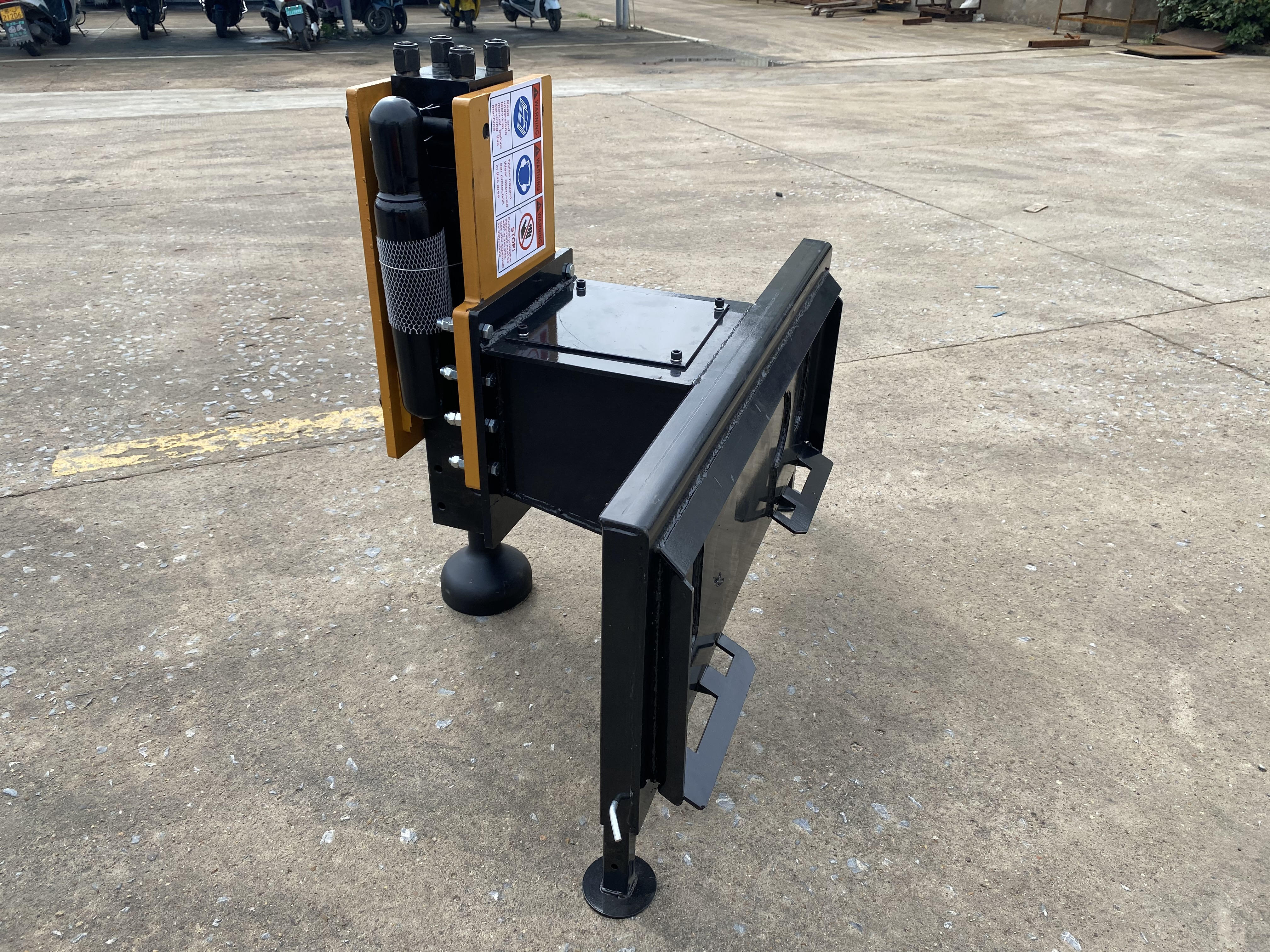

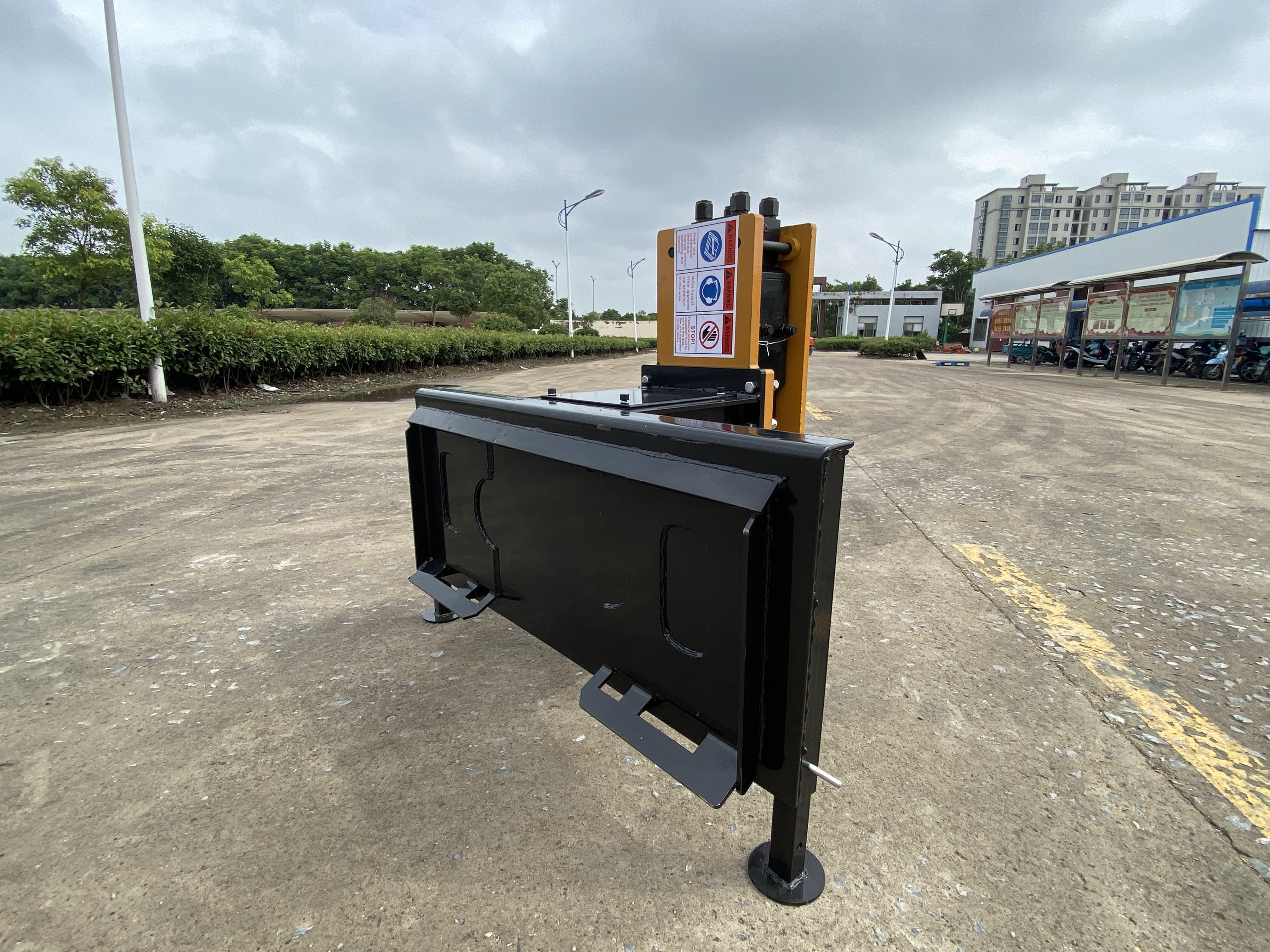

The AGT-PD680-PZ, 700 ft/lb hydraulic column drive has a universal mount making it easy to use with most skid steer loaders. Maximize the versatility of your skid steer loader by adding this ideal skid steer loader tool box to your skid steer loader. Perfect for farms, ranches, and more, you'll never need to knock out another fence post with your hands. If you have a special skid steer attachment inquiry or are unsure if your machine is compatible with a specific attachment please contact us





skid steer loader rear drive
* Suitable for, skid steer loader, tractor, backhoe loader
* Professional R&D and manufacture of skid steer
Loaders and Attachments
* Support customization, OEM of skid steer loader.
*Factory guarantee fast delivery and good quality.
main products
Application field
☞ Mining industry: mining, secondary crushing.
☞ Metallurgy: slag removal, furnace demolition, foundation.
☞ Roads: repairs, destruction, foundation works.
☞ Raliway: Bridge tunnel demolition.
☞ Construction: Demolition of buildings and reinforced concrete.
☞ Ship repair: remove foreign matter and rust on the hull.
☞ Miscellaneous: Break frozen mud.
