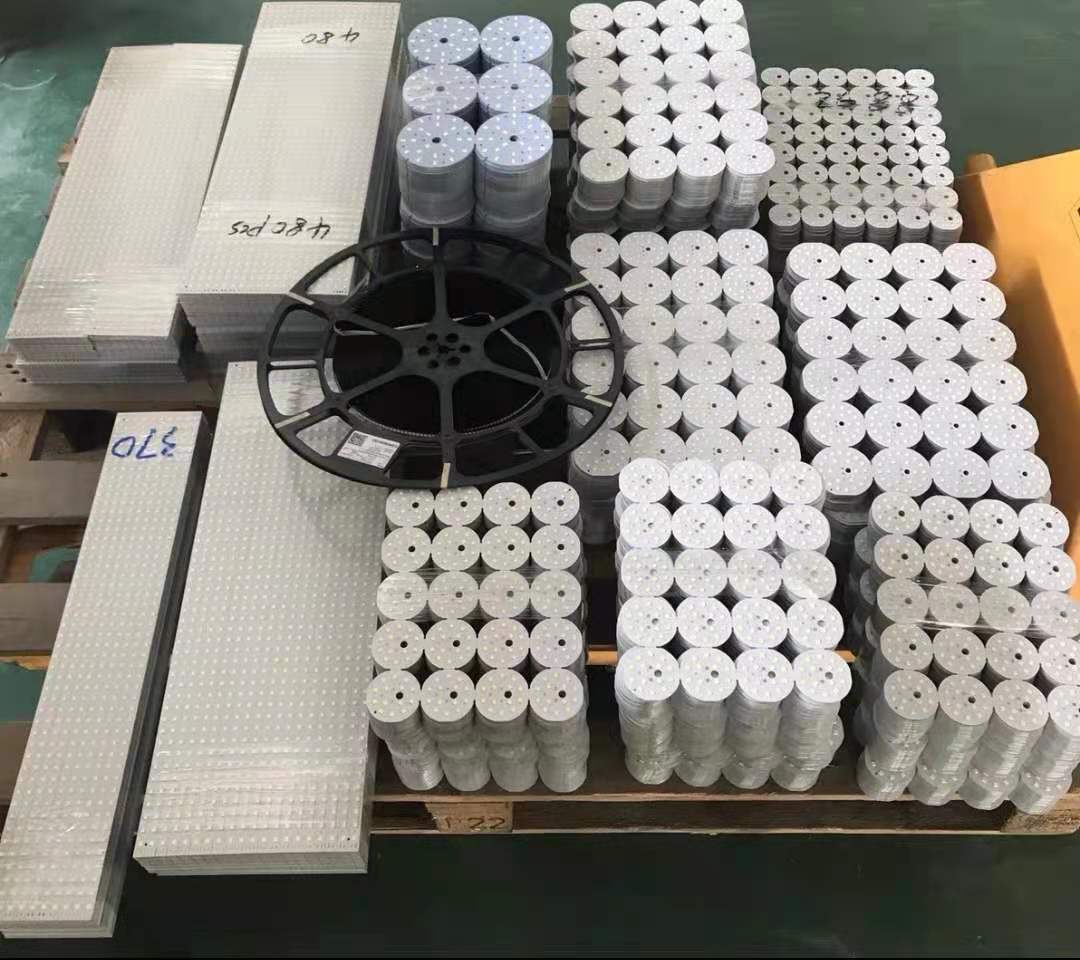

Packaging Details: | PE film packaging, vacuum packaging machine | Surface treatment: | Immersion tin, OSP |
type: | Aluminum plate | Plate shape: | Rectangular, circular, grooved, hollowed out, complex and irregular |
Solder mask and silkscreen color: | Green/Black/White/Red/Blue/Yellow | Minute Hole Size: | Single layer, 0.5mm |
port: | Shenzhen Port, Guangzhou Port, Zhongshan Port | V-cut corner: | 30, 45, 60 degrees |
layer: | single layer | Maximum panel size: | 1200mm*1000mm |
Supply capacity: | 1,000,000 pieces per month | MOQ: | 1 |
Copper thickness: | 15uf, 18uf, 22uf, 25uf, 35uf, etc. (1/2oz-2oz) | pcb base type: | Copper base, aluminum base, glass fiber |
Substrate: | FR4,FPC, CEM-3, 22F, VO, HB, KB | Serve: | One-stop service |
Minute line spacing: | 0.15mm | Plate thickness: | 0.4/0.6/0.8/1.0/1.2/1.5/1.6/2.0/3.0mm |
place of origin; place of origin: | Guangdong, China | payment terms: | Western Union, T/T |
brand: | Xinda | Minute line width: | 0.15mm |
model: | XD-SMT-69 | Board Dimensions: | 0.4/0.6/0.8/1.0/1.2/1.5/1.6/2.0/3.0mm |
Package preview: |
raw material | Various thickness PCB boards, FR4, FPC, CEM-3, 22F, VO, HB, KB |
printing art | screen printing |
surface treatment | HASL(LF), Gold Plated, Enig, Immersion Gold, Immersion Tin, OSP |
layers | single layer |
copper thickness | 15uf, 18uf, 22uf, 25uf, 35uf, etc. (1/2oz-2oz) |
PCB board cutting | Die punching, CNC gong shape, V cut |
Color of soldermask and silkscreen | Green/Black/White/Red/Blue/Yellow |
