type: | Aluminum plate | Plate thickness: | 1.6 mm |
brand: | Jinhua | Copper thickness: | 1 oz |
layer: | 4th floor | custom made: | Micro LED PCB is available |
Key words: | led light pcb board | Surface treatment: | half low frequency |
port: | Shenzhen | Minute line width: | 800w |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Packaging Details: | Bubble bag, pearl cotton bag, anti-static bag, vacuum bag |
Minute Hole Size: | 0.5mm | OEM/Design Manufacturer: | One-stop PCB&PCBA Service |
Serve: | Provide OEM double sided led aluminum pcb service | Testing service: | 100% AOI test |
Certificate: | ISO9001/Iso14001/CE/ROHS | Substrate: | aluminum |
Supply capacity: | 60000 pieces per month | MOQ: | 1 |

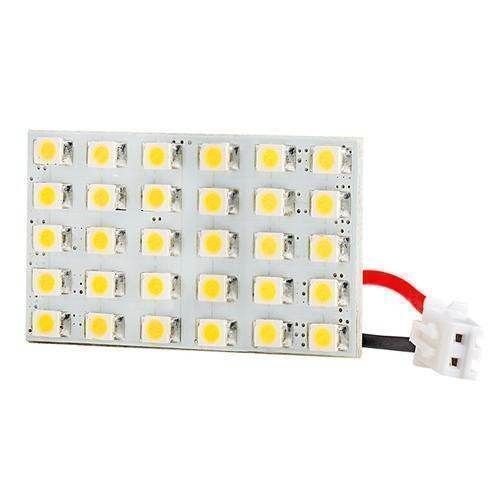

product name: | SMD LED PCB board | Minute line spacing: | 800w |
model: | JH-APCB-012 | Package preview: | |
application: | Consumer electronics products | Origin: | Guangdong, China |
Board Dimensions: | 300*1500mm, or can be customized |
Why is JH-PCBA used in MCPCB manufacturing?
.For regular MCPCB, we can customize the thermal conductivity within the range of 1W/MK to 5W/MK.
.Master the core technology of copper MCPCB thermoelectric separation.
.We have realized the fully automatic manufacturing of 1.5m ultra-long Alu PCB mass production.
.Jinhua also supports other substrate materials, such as copper and FR4 substrate PCB, copper and ceramic substrate PCB, etc.
.Provides assembly services from design to completion, along with conformal coating, IC programming, mechanical box and assembly.
Jinhua Aluminum PCB Capacity | ||
thing | process | ability |
1 | layers | 1-4L |
2 | plate thickness | 0.4-5.0mm |
3 | copper thickness | 0.5oz-4oz |
4 | Material | Aluminum base, Boyu, PTTC, Bergquist, TOTKING, sun ink, resin filled |
5 | Thermal Conductivity | 1-5W/MK |
6 | thermoelectric separation | Up to 200W/MK |
7 | Board size | Maximum: 650*1500mm, Minimum: 10*10mm |
8 | Minimum trace width/spacing | 1oz copper is 8/8mil |
9 | Hole to Line or Pad Spacing | Minimum 0.3mm |
10 | drilling | Minimum finished hole diameter 0.5mm |
11 | Solder mask | Thickness 25-30um |
12 | Color: green, white, black, etc. | |
13 | The reflectivity is 85%, and the mirror aluminum plate reaches 95% | |
14 | silk screen | Color: white, black, yellow, red...etc |
15 | analyze | Contour tolerance: +/-0.1mm |
16 | V-CUT angle: 30 degrees and 45 degrees | |
17 | V-CUT remaining thickness 0.4+/-0.05mm | |
18 | surface treatment | ENIG, HASL & HASL-LF, Immersion Tin, Immersion Silver, OSP |
19 | bow and twist | ≤0.03mm |
20 | standard | ISO9001, ISO14001, IPC-600,6012, Class II and Class III |
