Tier 1 mono PERC 22.5% 22.6% 22.7% 22.8% 10BB 182mm Solar Cells A ladder for solar panels

Supplier: Hefei Pinergy Solar Technology Co., Ltd.
Region: Anhui, China
Contact: Mr Mark Meng
Price: $0.80 / 100000 - 159999 pieces
$0.50 / >=160000 pieces
Min. Order: 100000 pieces

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T	Package preview:
Battery efficiency:	22.9%	model:	PNG182M-229
brand:	Papua New Guinea Solar	place of origin; place of origin:	Anhui, China
Happening:	new	application:	Solar panels
Solar battery:	Monochrome 166*166mm	Material:	Monocrystalline silicon cell
busbar:	9bb	color:	blue
Certificate:	TUV IEC CE ISO	product name:	Solar battery
type:	PERC

Product Description

feature:

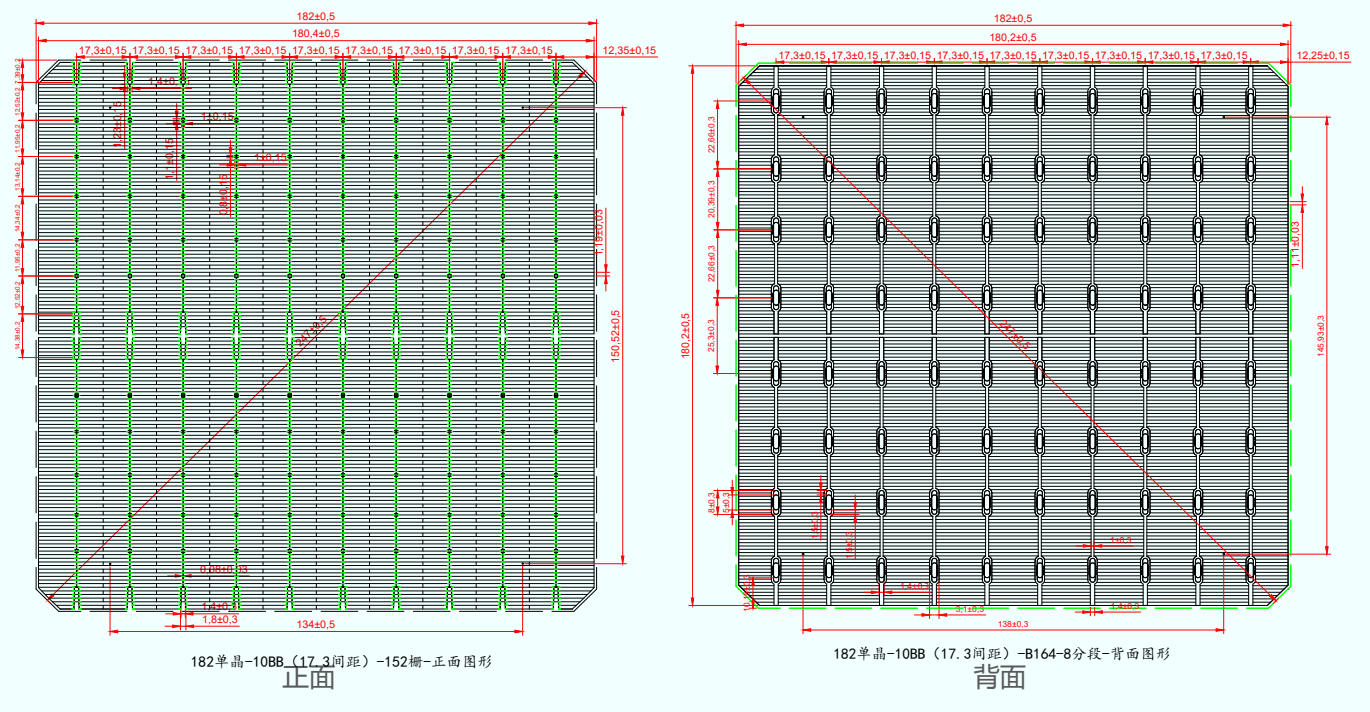

Size: 182mm×182mm±0.25mm (diameter 247±0.25mm)
Thickness: 175±17.5μm
Front (-): Silicon dioxide + blue silicon nitride composite anti-reflection coating (PID Free); The width of the bus bar is 0.08±0.03mm, and there are two forks on the head of the bus bar; The size of the 182 bus bar and the finger joint is 0.6 mm×1mm.
Back (+): AlOx and SiNx double layer and back contact (Al); the back electrode consists of 10 back composite busbars and 152 back aluminum fingers. 6-section, 1.4±0.30 mm silver anode, no laser pattern under rear electrode. The silver electrode has a round head, and the silver electrode is 1.2±0. Hollow 1mm at both ends.

Positive electrical performance parameters
the code	efficiency(%)	Power peak (W)	Upp(V)	Imp (A)	Volatile Organic Compounds (V)	Isc(A)	FF(%)
PNG182M-232	23.2	7.66	0.5933	10.582	0.6874	11.113	82.18
PNG182M-231	23.1	7.63	0.5916	10.566	0.6859	11.100	82.10
PNG182M-230	23.0	7.59	0.5905	10.540	0.6837	11.105	81.97
PNG182M-229	22.9	7.56	0.5887	10.525	0.6822	11.090	81.89
PNG182M-228	22.8	7.53	0.5873	10.503	0.6811	11.082	81.73
PNG182M-227	22.7	7.49	0.5856	10.486	0.6807	11.075	81.46
PNG182M-226	22.6	7.46	0.5835	10.477	0.6790	11.060	81.41
PNG182M-225	22.5	7.43	0.5817	10.462	0.6780	11.046	81.26
PNG182M-224	22.4	7.4	0.5799	10.448	0.6777	11.039	80.98
PNG182M-223	22.3	7.36	0.5781	10.433	0.6774	11.021	80.81
PNG182M-222	22.2	7.33	0.5760	10.424	0.6748	11.014	80.79
PNG182M-221	22.1	7.30	0.5742	10.409	0.6743	10.996	80.60
PNG182M-220	22.0	7.26	0.5720	10.401	0.6729	10.990	80.45
PNG182M-219	21.9	7.23	0.5701	10.386	0.6719	10.974	80.30
PNG182M-218	21.8	7.20	0.5684	10.371	0.6713	10.958	80.12

Electrical performance parameters on the back
the code	efficiency(%)	Power peak (W)	Vmp(V)	Imp (A)	Volatile Organic Compounds (V)	Isc(A)
PNG182M-16.2	>16%	5.29	0.5884	7.549	0.6788	8.019
PNG182M-15.7	15.5%~16%	5.13	0.5782	7.492	0.6688	7.940
PNG182M-15.2	15%~15.5%	4.96	0.5721	7.335	0.6650	7.735
PNG182M-14.8	<15%	4.96	0.5657	7.173	0.6592	7.554

STC (Standard Test Conditions): 1000W/m2, AM1.5, 25°C
The above technical parameters are subject to technical changes and tests.

Pine Solar reserves the right of final interpretation.
