Customization support: | OEM production | model: | K-1688 |
size: | 250mm x 75mm x 270mm (L*W*H) | aspect: | 250mm x 75mm x 270mm (L*W*H) |
Voltage: | 35kV-50kV voltage (variable) | Incentive source: | High-power and high-performance X-ray microtube |
place of origin; place of origin: | Guangdong, China | power supply: | 1 lithium battery (7.2v\6600mAh) |
detector: | High Resolution Si-Pin Detector | Supply capacity: | 10000 pieces per month |
processor: | High performance ARM pulse processor | brand: | high speed rail |
Warranty: | 1 year | port: | Shenzhen, Guangzhou |
Package preview: | thing: | XRF spectrometer portable hand-held | |
payment terms: | L/C, T/T | weight: | Equipment: 1.50kg, 1.65kg with battery.,1.5Kg |
Standard mode: | K-MAX Alloy Plus 6.0 |

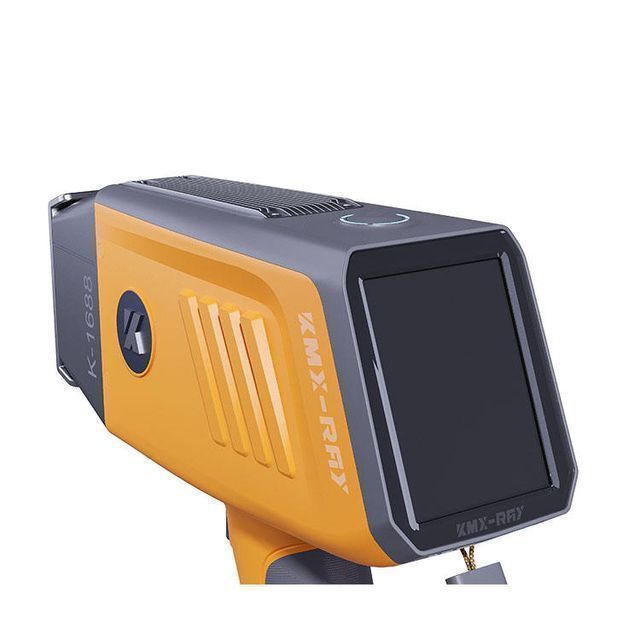

thing | Alloy Analyzer K-1688——Cost-effective X-ray fluorescence spectrometer |
weight | Equipment: 1.50kg, 1.65kg with battery. |
aspect | 250mm x 75mm x 270mm (L*W*H) |
excitation source | High-power and high-performance X-ray microtube |
target | Five target materials for X-ray tube are available: gold (Au), silver (Ag), tungsten (W), tantalum (Ta) and palladium (Pd) |
Voltage | 35kV-50kV voltage (variable) |
filter | A variety of optional filters, automatically adjusted according to different measured objects |
detector | High Resolution Si-Pin Detector |
Detector Cooling temperature | Peltier effect semiconductor refrigeration system |
Standard film | External 316 standard film/window protection cover (optional built-in standard film, plus version) |
power supply | 1 lithium battery (7.2v\6600mAh) |
processor | High performance ARM pulse processor |
data processing | 32G large-capacity data storage card: ≥80000 sets of data and frequency spectrum; |
display screen | High-resolution TFT industrial-grade color high-definition touch screen, ergonomic, durable, dustproof and waterproof, clearly visible under any light conditions |
shape design | The one-piece design body is strong, waterproof, dustproof, freezeproof, and shockproof, and can be used normally in harsh environments. |
safe operation | "One-button" detection, automatic locking, detection self-stop function. The X-ray is automatically turned off when there is no sample within 2 seconds before the detection window. 3/2 of the equipment casing is covered with a 6061 aluminum alloy frame design, which has better X-ray blocking ability. |
Test Report | Test reports can be customized according to customer needs |
Elemental analysis | Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, zn, Hf, Ta, W, Hg, Se, Au, Br, Pb, Bi, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Re, Ir, Pt, Hg, Ru, Rh, Pd, etc. Note: The light elements marked in red are the SDD detector configuration of the plus version, and the others are Si-Pin. |
