Peak torque: | 150 | Voltage: | 115V |
rated power: | 15 kW | Vehicle Type: | Battery |
motor: | Permanent Magnet Synchronous Motor | Peak power: | 29 kW |
Speed (rev/min): | 7500 rpm | payment terms: | wire transfer |
Rated torque: | 30 | product name: | EV conversion kit |
Wuling MINI EV Concealment Kit Spec Sheet
Product Description and Specifications

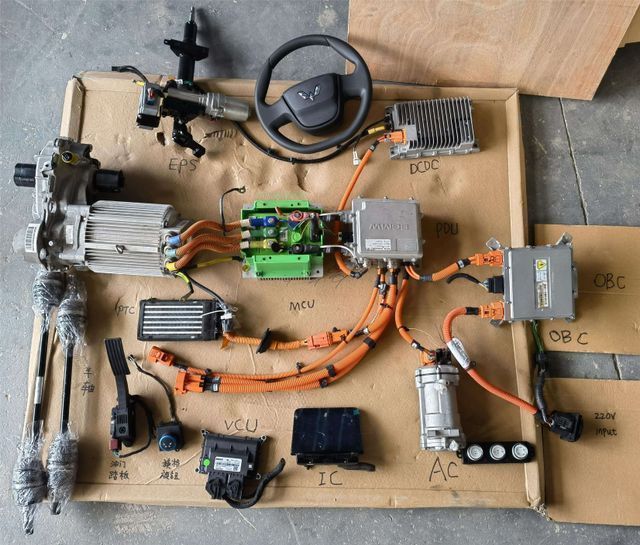

Below, starting from the right
Bottom right: three-phase variable frequency motor drive,
Upper right: air conditioner compressor
Second from the right: three-phase motor
Right 3 open: battery charger,
Right 3 Next: DC-DC
Left: LiB
The 2020 Baojun E200 has 2-seater and 3-seater versions. In terms of body size, length: 2625 width: 1647 height: 1588 mm, and the wheelbase has reached 1750 mm. Curb weights range from 920 to 940 kg. Tire size 145/70 R12
The motor series is TZ160X029 manufactured by Zhejiang Fangzheng Motor Co., Ltd. Power 29Kw (39Ps)/150Nm, maximum speed 100km/h
Technical Supportpectoralis |
|
Model |
TZ154X140 |
Powertrain Dimensions |
251*255*250mm |
Peak torque/speed (Nm/rpm) |
150@0-9000rpm |
Peak power (kW) |
40KW@ |
Working Voltage/Rated Voltage (V) |
328V |
Rated power (kW) |
20 |
Rated torque (Nm) |
40 |
Maximum speed (rpm) |
9000 rpm |
degree of protection |
IP67 |
overall efficiency |
89 % / 93 % peak |
cooling method |
natural air cooling |
weight |
25 kg |
