rated power: | 135 kW | Speed (rev/min): | 16000 rpm |
engine: | Permanent Magnet Synchronous Motor | product name: | EV conversion kit |
Peak power: | 120 | payment terms: | wire transfer |
Vehicle Type: | Battery | Voltage: | 220V |

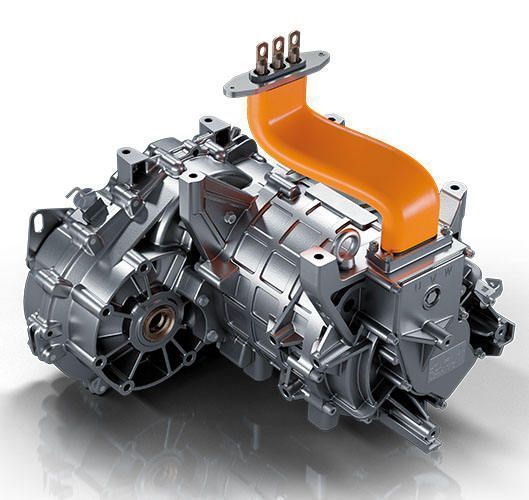

Nidec8-in-1 electric powertrain
Product Description and Specifications
The Nidec Group designs, develops, and produces brushed and brushless DC motors that ensure safe and comfortable driving, and "E-Axle," a motor that integrates motors, gears, and inverters to drive electric vehicles (EVs). system.
Nidec's Automotive Motor and Electronic Control (AMEC) Business Unit: Products and Business Areas
Nidec's AMEC business unit operates on a global platform.
The current main products are: electric power steering (EPS) motors using Nidec’s core high-performance brushless DC motor technology; electric brake motors; dual clutch transmission (DCT) motors; electric pump motors; Brush the motor. All of these Nidec products help improve the three basic functions of a car: "Run", "Turn" and "Stop".
Nidec places special emphasis on product development based on environmentally friendly "green technologies". We are also developing traction motors for electric vehicles and hybrid electric vehicles (HEV).
AMEC divisions, including Japan-based Nidec Tosok, Nidec Elesys, and Nidec Mobility; Europe-based Nidec Motors and Actuators and Nidec GPM; and Nidec Automotive Motor Americas work together to develop and manufacture their products to meet the needs of customers worldwide.
Technical Supportpectoralis |
|
Model |
TZ180XYA2601 |
Powertrain Dimensions |
451*455*450 mm |
Peak torque/speed (Nm/rpm) |
300@0-4000rpm |
Peak Power/Speed (kW/rpm) |
135@16000 |
Working Voltage/Rated Voltage (V) |
208-332V |
Rated power/speed(kW/rpm) |
65@4433-15000rpm |
Rated torque/speed(Nm/rpm) |
140@0-4433rpm |
Maximum speed (rpm) |
16000 rpm |
degree of protection |
IP67 |
overall efficiency |
89% / 93% peak |
cooling method |
Oil cooler |
weight |
82 kg |
