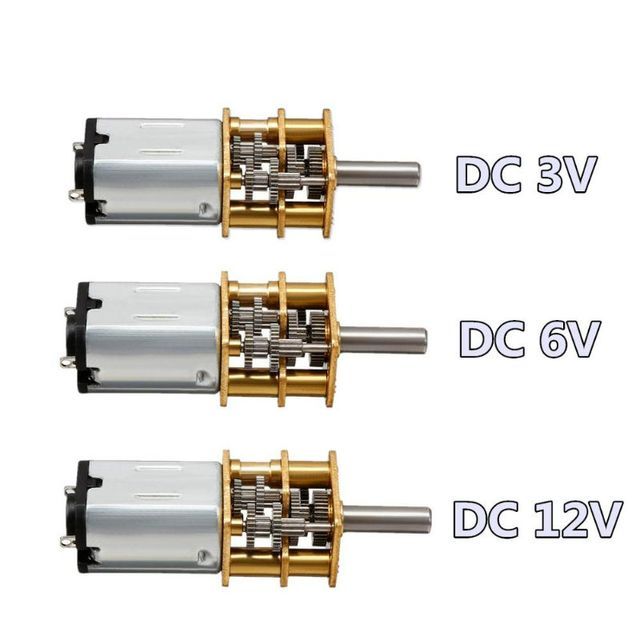

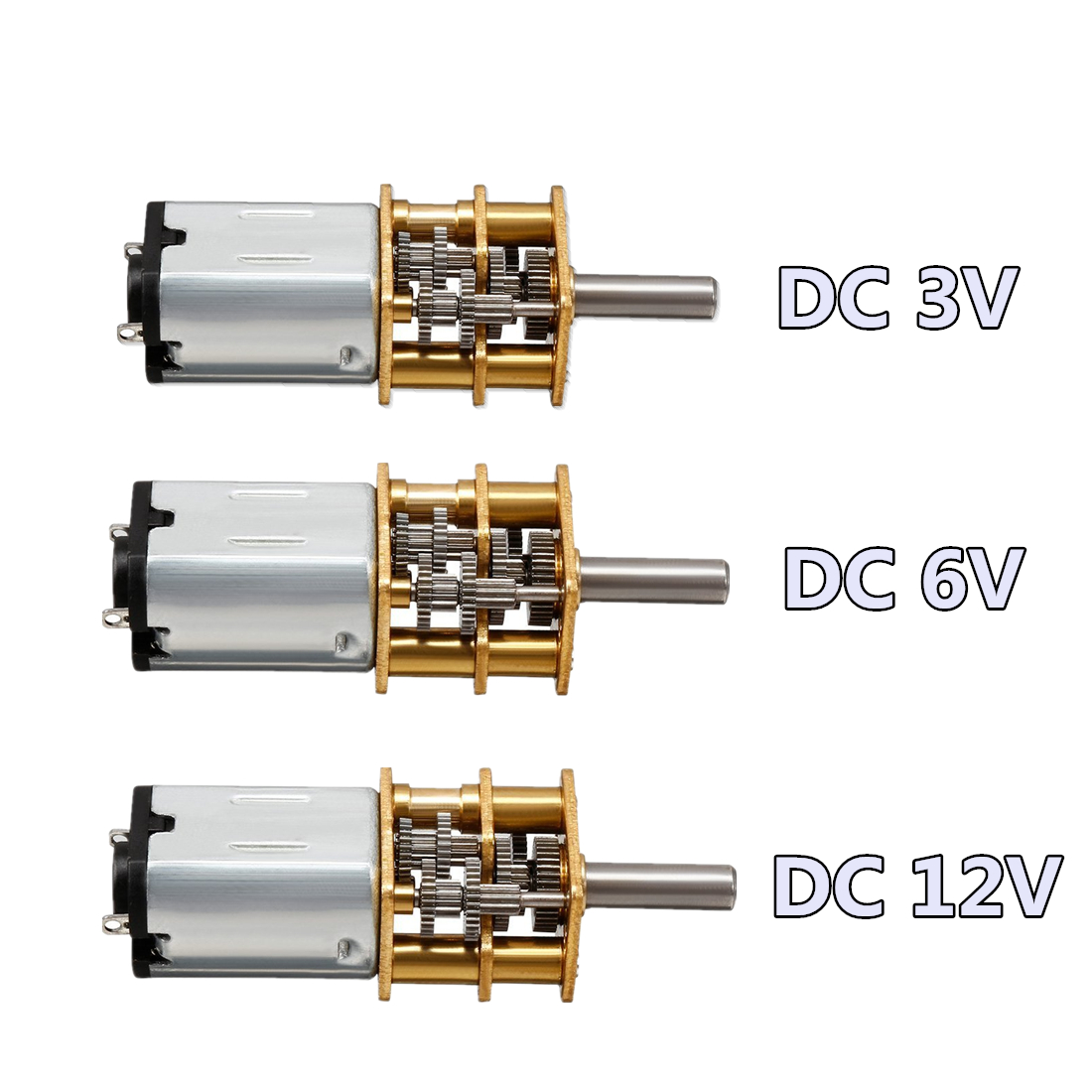

Gear DC Motor 15/30/50/60/100/200/300/500/1000RPM DC 3V/6V/12V N20 Servomotor de Motor de engranajes

Supplier: Shenzhen Huiying Industrial Development Co., Ltd.
Region: Guangdong, China
Contact: Ms Sherry Wei
Price: $2.50 / 10 - 199 pieces
$1.20 / >=200 pieces
Min. Order: 10 pieces

Click here to contact

Product details

efficiency:	browser 1	Voltage:	12V
model:	GA12-N20 motor/DC motor	Commutation:	brushless
Continuous current (A):	DC 3V/6V/12V	type:	gear motor, A
Protective function:	anti-drip	Speed (rev/min):	A
payment terms:	Western Union, D/P, D/A, T/T, MoneyGram	put up:	Permanent magnets
usage:	Sailing boats, cars, electric bicycles, fans, home appliances	Output Power:	DC 3V/6V/12V

Voltage DC voltage	Rotating speed ±10%	Stall current	Stall torque
DC voltage	RPM/min	art fair	kg/cm
3	30rpm	≤0.8	≥1.8
3	50rpm	≤0.98	≥2.2
3	60rpm	≤1.39	≥2.5
6	30rpm	≤0.2	≥1.4
6	50rpm	≤0.5	≥2.3
6	60rpm	≤0.68	≥2.7
12	50rpm	≤0.19	≥1.7
12	60rpm	≤0.34	≥2.5
3	100rpm	≤0.98	≥1.1
3	200 rpm	≤1.1	≥1.2
3	300 rpm	0.98	≥0.5
3	500 rpm	≤0.98	≥0.3
3	1000 rpm	≤0.98	≥0.16
6	100rpm	≤0.5	≥1.1
6	200 rpm	≤0.79	≥1.2
6	300 rpm	≤0.5	≥0.5
6	500 rpm	≤0.5	≥0.3
6	1000 rpm	≤0.5	≥0.16
12	100rpm	≤0.19	≥1.0
12	200 rpm	≤0.37	≥1.1
12	300 rpm	≤0.19	≥0.42
12	500 rpm	≤0.19	≥0.26
12	1000 rpm	≤0.19	≥0.13
3	15rpm	≤0.98	≥5.8
6	15rpm	≤0.5	≥5.8
12	15rpm	≤0.19	≥5.0
12	30rpm	≤0.19	≥2.5

If you need a lot of custom RPM or other data, please contact me. Thanks

Contact me for product torque and other data sheets! Thanks

Voltage: DC 3V/6V/12V

material: metal

Model: N20

Speed: 15/30/50/60/100/200/300/500/1000RPM

Overall length: 36mm

Motor size: 12mm (diameter) * 26mm (height)

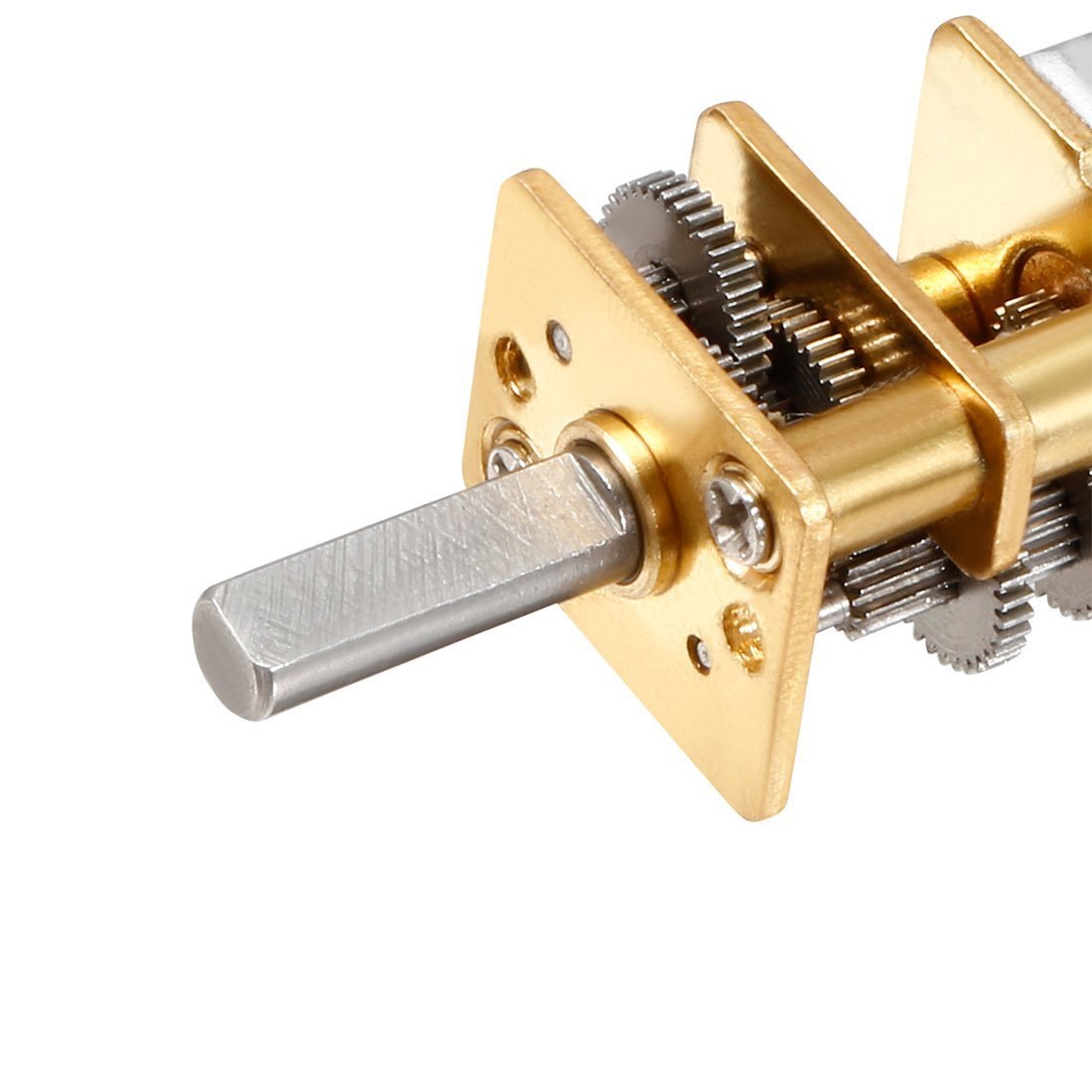

Shaft size: 3mm (diameter) * 10mm (length)
