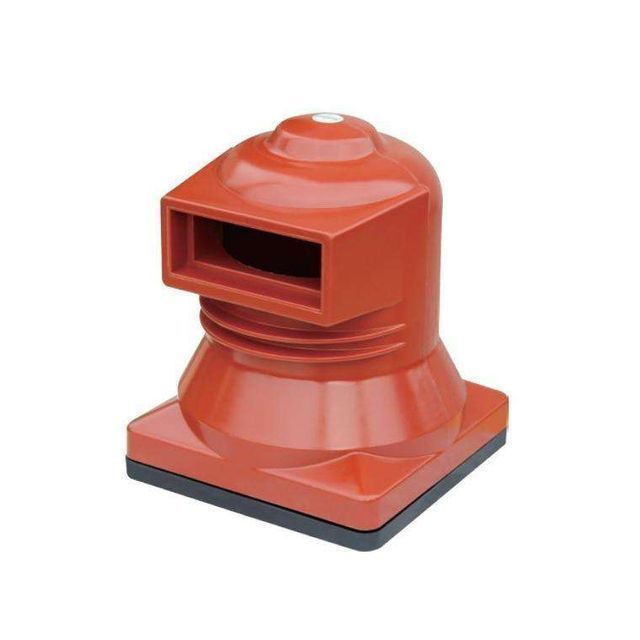

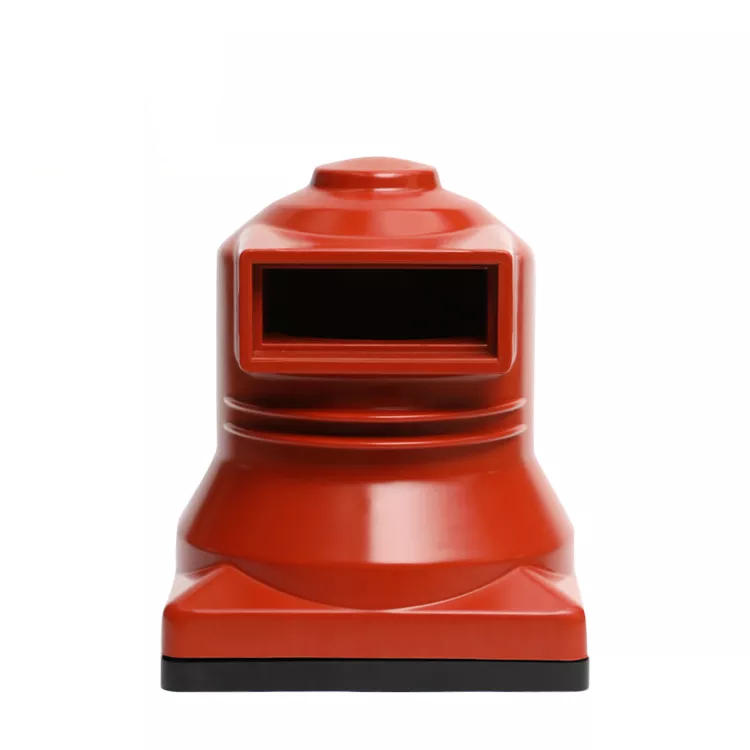

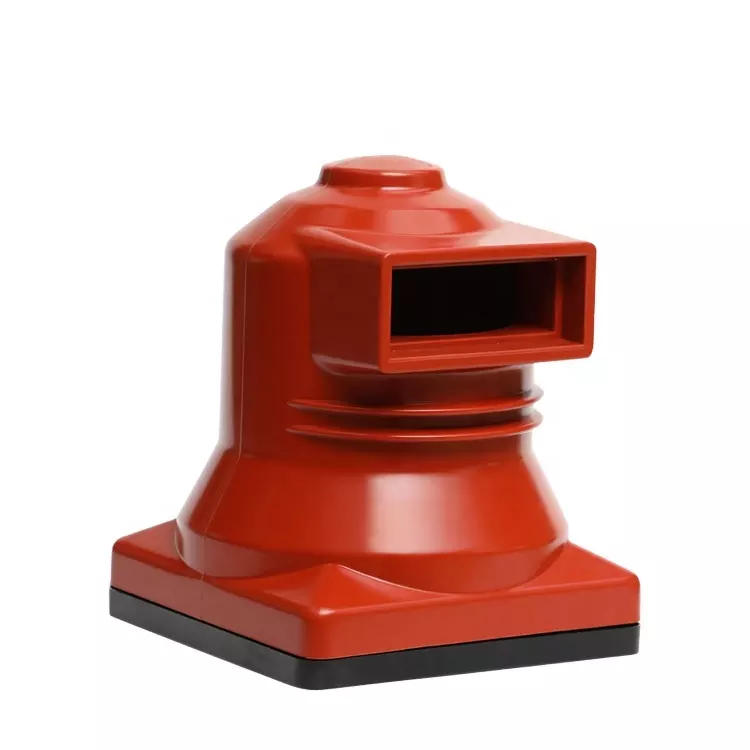

CH3-10Q/250 2500-3150A High Voltage Internal Insulator Red Epoxy Resin Contact Box For Electrical Isolation of 11kV Changers

Description: 1. The product is made of epoxy resin material.2. High insulation, high strength and good stability. 3. Provide different specifications for users to choose according to the current size.4. The contact box adopts APG technology epoxy resin molding.normal working environment:1. Altitude: ≤1000m 2. The ambient temperature is -30°C to +40°C, and the daily average temperature does not exceed 30°C. 3. The daily average relative humidity is less than 95%, and the monthly average is less than 90%. 4. The working environment should be free of steam, gas, chemical corrosion deposits, salt spray, dust, dirt and other dangerous explosive media that have a serious impact on the insulation and conductivity of the product. 5. The working environment should not be frequently shaken or violently bumped.
