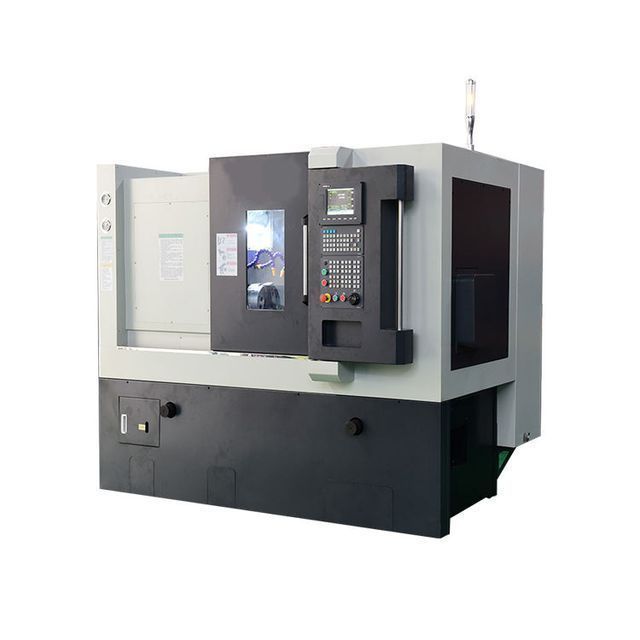

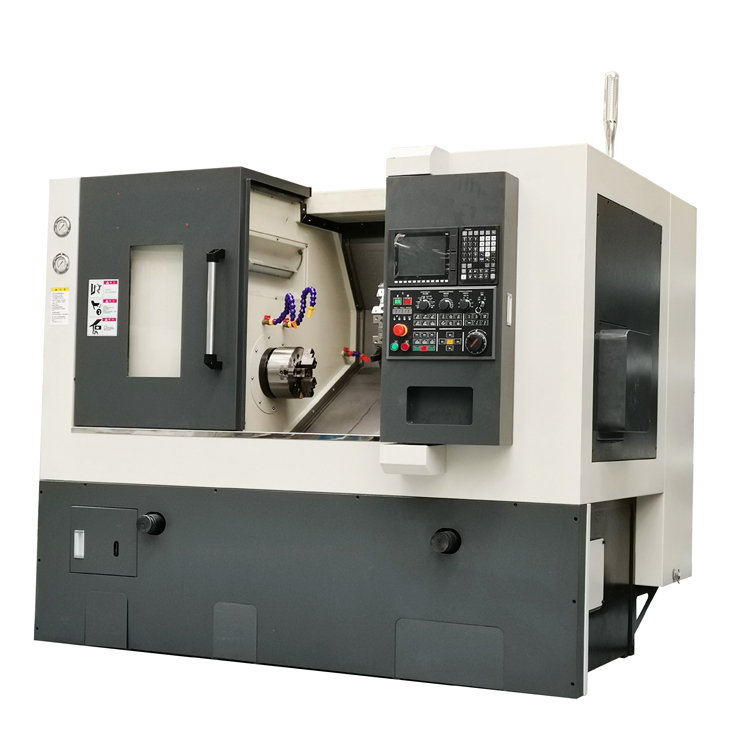

Taiwan technology inclined bed CNC lathe price

Click here to contact

Product details

Mechanical test report:	if	type:	horizontal
Maximum effective turning diameter:	450mm	Package preview:
maximum. Turning length (mm):	500	Main selling points:	high productivity
Maximum effective turning length:	500mm	Chuck size:	8 inches / 10 inches
Marketing Type:	2019 Hot Products	Power (watts):	7.5 or 11/15kw
Voltage:	380V / upon request	Bed width (mm):	200mm
Spindle speed:	4000/3500rpm	model:	BL-H50T
Travel (Z axis) (mm):	610mm	Packaging Details:	wooden box
CNC or not:	CNC	After-sales service provided:	Engineers available to service machinery overseas

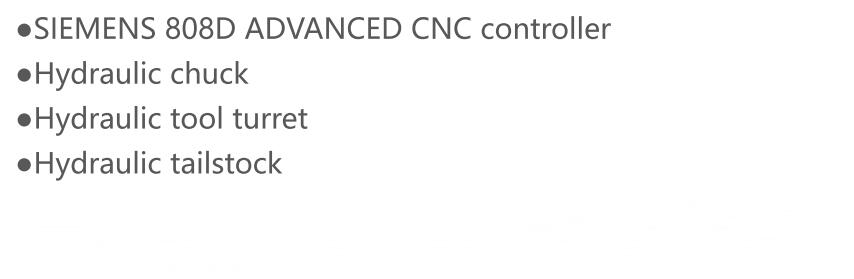

Warranty:	1 year	CNC system:	Siemens
Repeatability (X/Y/Z) (mm):	0.008	maximum. Spindle speed (rpm):	4000 rpm
Core components:	Bearings, motors, pumps, gears, PLCs, pressure vessels, engines	Video shipment inspection:	if
Number of spindles:	single	Tool Station:	8
Weight (kg):	3600	Core component warranty:	1 year
Spindle hole:	66/86	Supply capacity:	500 units per year
Showroom location:	not any	Applicable industries:	Machinery repair shop, manufacturing plant, home use
structure:	Slant bed lathe	Spindle bore diameter (mm):	66 years old
port:	Ningbo/Shanghai port	Positioning accuracy (mm):	0.01 mm
Processing capacity:	medium	Automatic level:	automatic
place of origin; place of origin:	Zhejiang, China	Spindle motor power (kW):	7.5
Travel (X axis) (mm):	250 mm	brand:	brin
Health status:	new	Dimensions (LWH):	260018001800mm
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	maximum. Work piece length (mm):	500mm
Maximum swing in bed:	560	year:	2019
Number of axes:	2

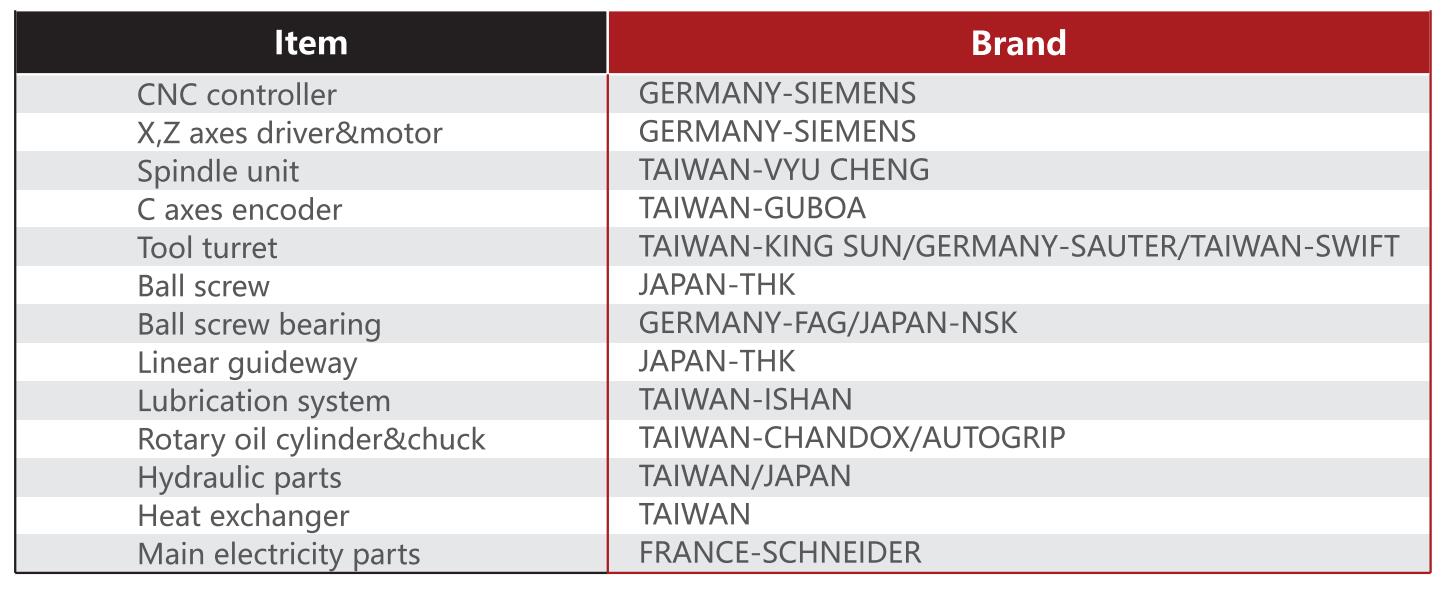

■ Adopt TAIWAN technology, designed by Taiwan engineers, most parts adopt GERMANY/JAPAN/TAIWAN brand

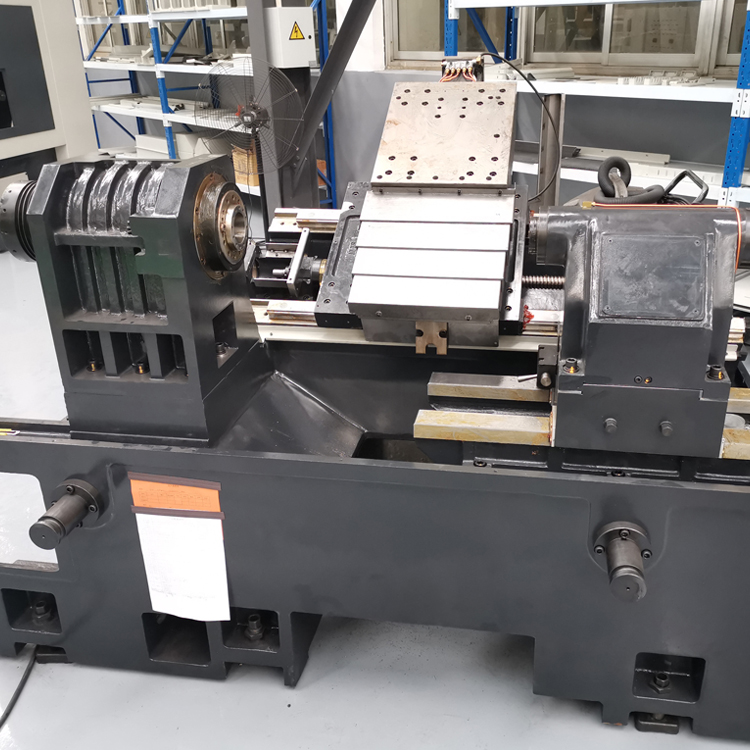

■ Adopt 30° overall inclined bed design
■ The X and Z axes adopt 45mm large width ROLLER linear guide rails with ultra-high rigidity
■ Modular design, convenient for various special configuration options, such as tool setter, material catcher, etc.
■ Made of MEEHANITE grade cast iron, after aging treatment, small deformation, good torsional strength, good thermal stability
■ The base adopts multi-layer ribs to ensure the strength and stability of the bed
■ High-precision integral spindle unit is adopted, and the spindle motor adopts high-performance servo motor with large output torque. Fast speed and wide adjustment range
■ High-precision C3 grade pre-stretched ball screw (double nuts), directly coupled with the feed motor through the linkage mechanism, No backlash, high transmission rigidity

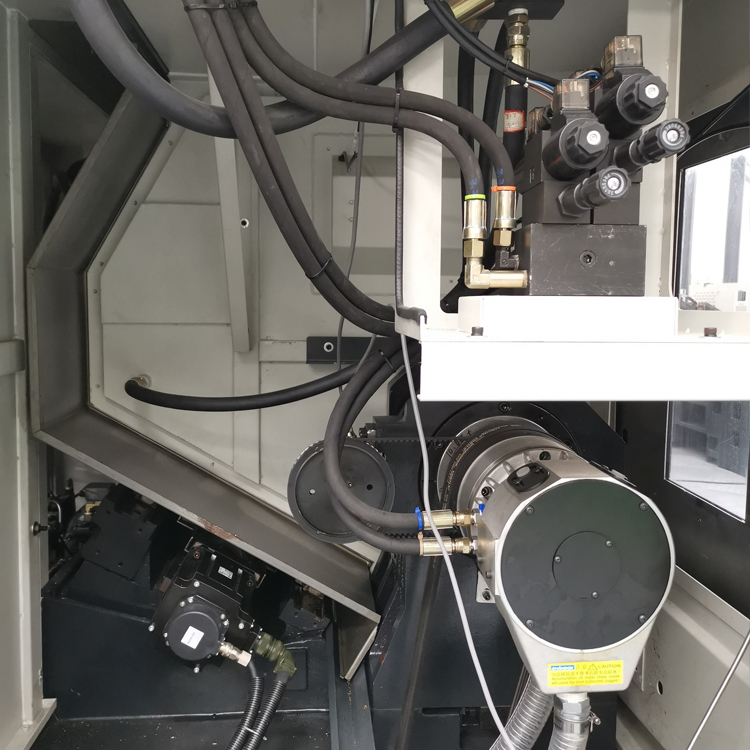

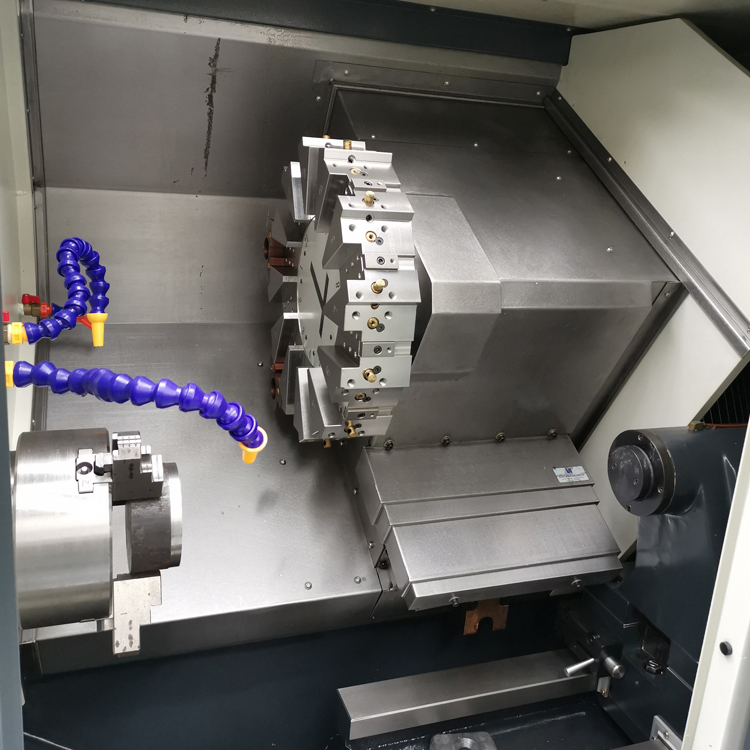

■ H50T mounts 8T hydraulic turret
■ H50TC is equipped with C-axis and 12T BMT type power turret
■ H50TY installs C-axis and 12T BMT type 90°Y-axis power turret

thing	Specification	unit	BL-H50T/BL-H50TC/BL-H50TY
capacity	Chuck size	/	8''	10''	12''
		maximum. swing diameter in bed	mm	Φ560
		maximum. Turning length	mm	500
		maximum. Turning diameter		Φ450
		Standard Turning Diameter	mm	Φ200	Φ250	Φ300
Spindle	Spindle hole	mm	Φ66			Φ86
		Spindle end type	/	A2-6			A2-8
		Spindle speed	Rotating speed	4000			3500
		maximum. Bar through diameter.	mm	51			74
		Spindle motor power	kilowatt	7.5	11	15
X/Z axis	X, Z axis linear guide rail type	/	spherical
		X, Z axis linear guide rail width	mm	45
		X, Z axis ball screw outer diameter	mm	Φ32,Φ40
		X, Z axis ball screw pitch	mm	10
		X-axis travel	mm	250
		Y-axis travel		None/None/100
		Z axis travel	mm	610
		X/Z axis rapid movement speed	m/min	28
		Y-axis rapid movement speed	m/min	None/None/16
knife tower	Turret type	/	12T hydraulic type/12T power BMT45 type/12T power BMT45 type with Y axis
knife tower		Shank size	mm	25×25, Φ40
Tailstock	Tailstock sleeve taper	/	MT4#
Tailstock		Tailstock sleeve diameter/stroke	mm	Φ80/80
accuracy	Positioning accuracy (X/Z)	mm	0.01/1000
accuracy		Repeat positioning accuracy (X/Z)	mm	0.008/1000
